J03/J04/J05 Output Terminal

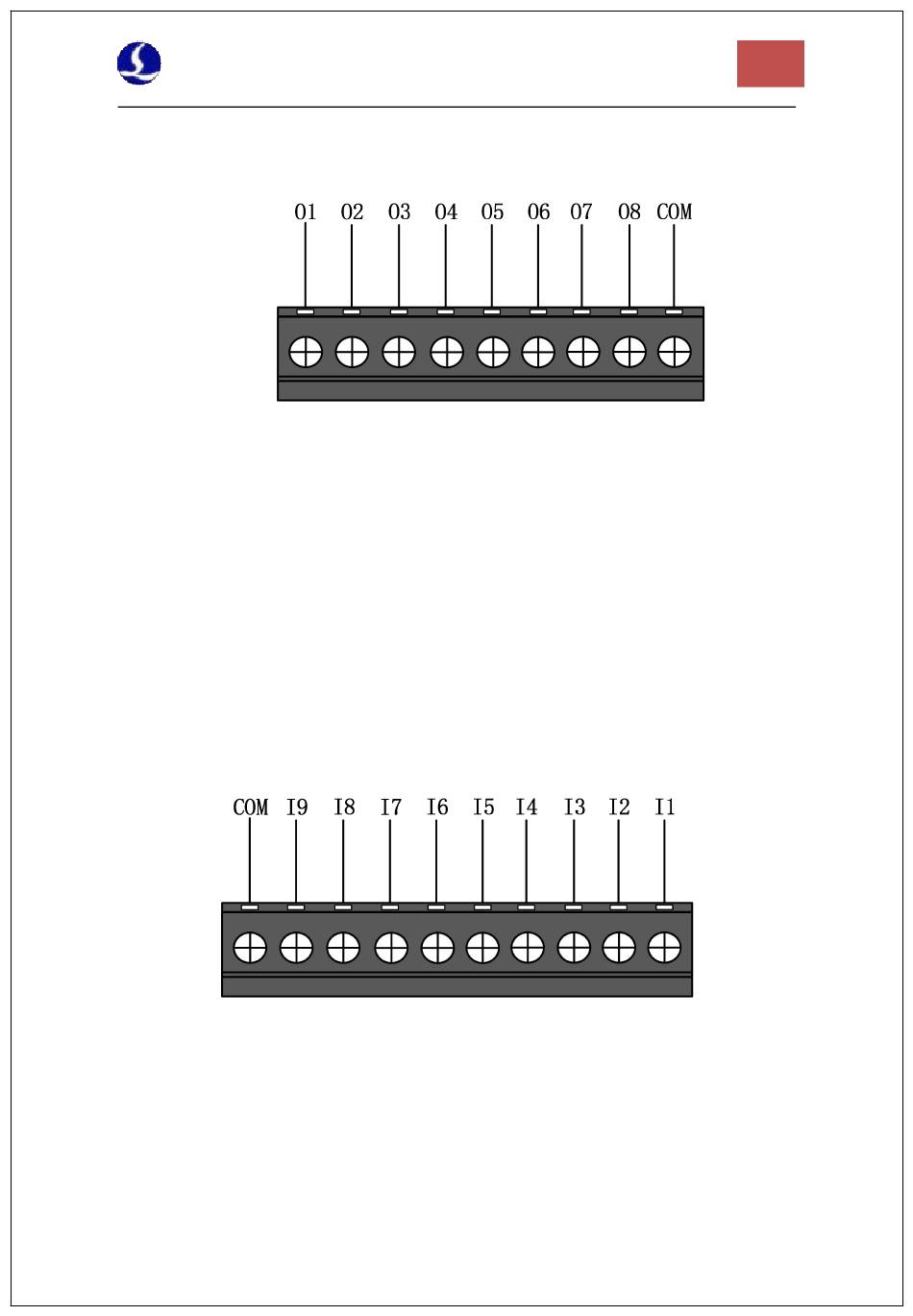

Take J03 as an example, the interface diagram is as follows.
J03-J05 has a total of 24 high-level (24V level) outputs. The above figure is the wiring
diagram of J03. O1-O8 are the positive terminals of the output port, and COM is the negative
terminal of the output port. The 24 output ports can be configured as control interfaces ，
e.g."laser", "cutting head", "auxiliary gas", "alarm" and "pallet changer" etc. in the "Cypfig"
that comes with CypcutE software.
Note: 1) The maximum current of one output port is 0.7A, otherwise the short circuit
protection will be triggered.
2) The total current of the output ports cannot exceed 2.5A, otherwise the short
circuit protection will be triggered.

2.2.5 J06/J07/J08 Input Terminal

Take J06 as an example, the interface diagram is as follows.
J06-J08 has a total of 27 input ports. IN1-IN24: active low (0~15V), high level (19-24V) has no
conduction; IN25-IN27: active high(24~8V conduction), low level (0~4V) has no conduction.
Take J06 as an example, I1-I9 are the positive terminals of the input port signal, and COM is
the negative terminal of the input port.
The typical connection of the photoelectric switch is as shown in the figure below. An NPN 24V
photoelectric switch should be used.
