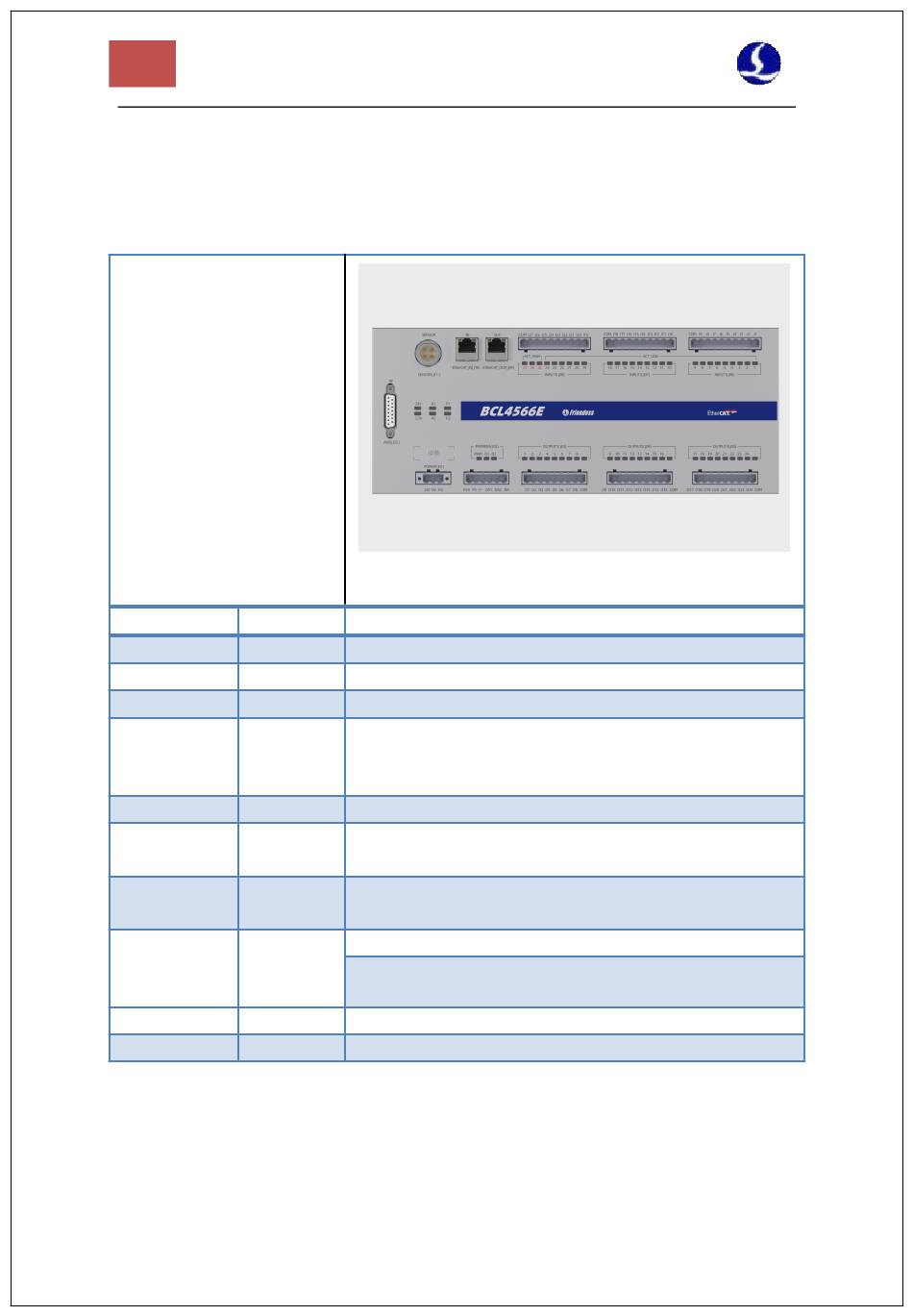

2.2 BCL4566E Wiring

The BCL4566E bus height controller uses the EtherCAT bus to control the laser cutting
capacitive follower. It is a high-performance capacitive height controller.
BCL4566E
Terminal Board
Module Qty
Power Supply /
DA 2
PWM
2
Common
24
Output
Axis 1
Dedicated
27
Input
Capacitance
1
Sensor
Working
Environm
ent
Dimension /
Weight /
FSCUT2000E User Manual
24V DC /3.5A
0-10V, 12bit, ±50mV
5V and24V, ±50KHz 0.3%
24V active high
1) The current of single output ≤ 0.7A
2) The current of all outputs ≤ 2.5A
Pulse digital quantity, PUL±/DIR± output, up to 600KHz
IN1-IN24, active low, 0~ 15V
IN25-IN27, active high, 24~ 8V
Capacitance frequency 2Mhz~4Mhz
Temperature: 0℃~60℃
/
Humidity: 10%~90%Rh(no(no condensation)
300mm×123×34mm
640g
Table 2-6 BCL4566E Technical Data
