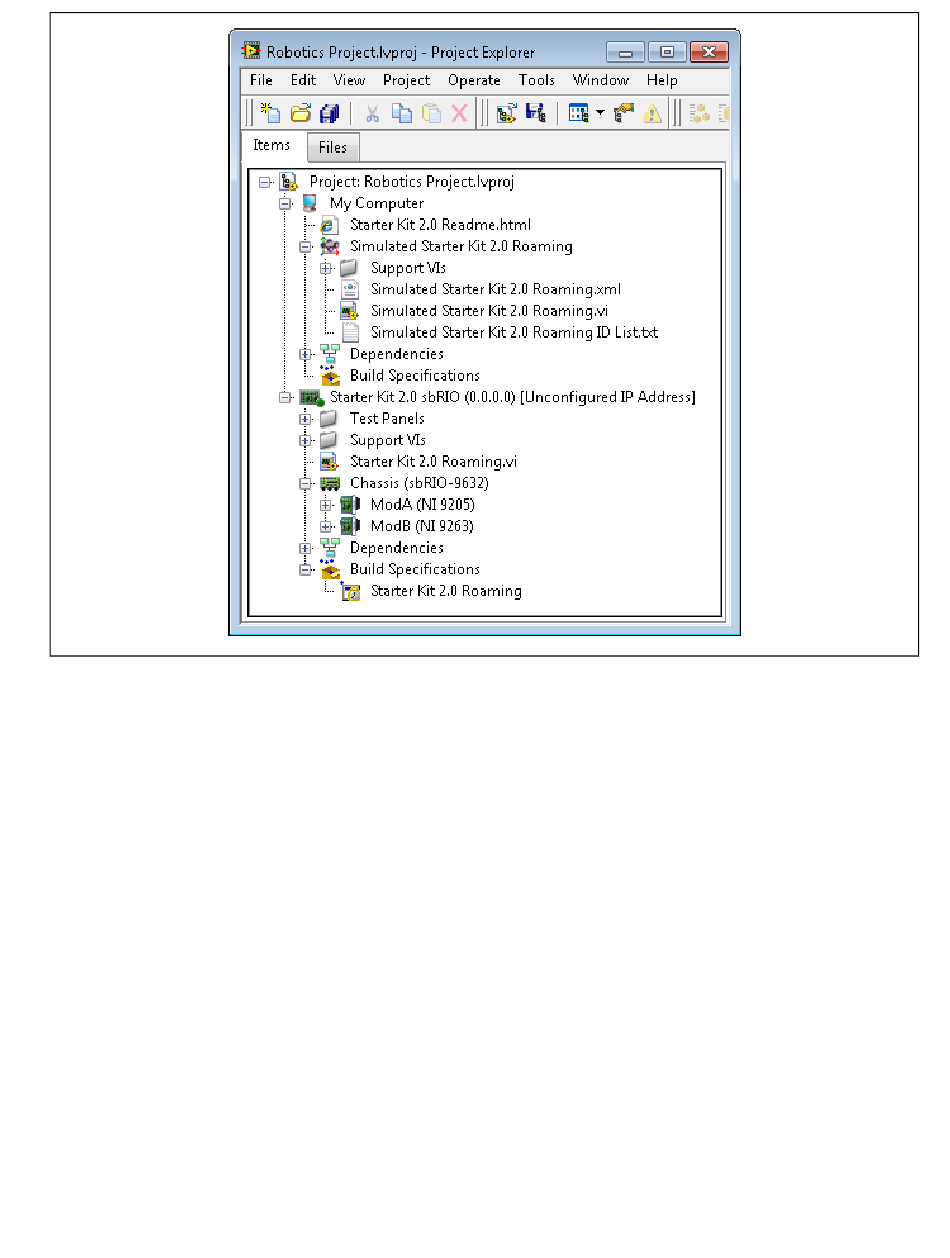

Figure 4. Exploring the Robotics Project in the Project Explorer Window
Exploring VIs that Control the Starter Kit Robot
Complete the following steps to explore the VI and support files you created with the Robotics Project
Wizard.
1.
In the Project Explorer window, expand the Test Panels folder and double-click
Ultrasonic Sensor.vi
an RT VI that runs on the Single-Board RIO.
2.
Select Window»Show Block Diagram to display the block diagram of the VI, as shown in Figure 5.
©
National Instruments
in the Project Explorer window.
9
Test
Test Ultrasonic Sensor.vi
