1. Host computer

2. Real-time controller

3. RT VI
4. I/O modules
From the Getting Started window, click the Create Project button and follow the instructions to create
a new LabVIEW project. You also can use the Robotics Project Wizard to create a LabVIEW project
from a template. Refer to the Creating a Starter Kit Project Using the Robotics Project Wizard section
of this manual for information about creating a LabVIEW robotics project using the Robotics Project
Wizard.
Real-Time Controller
Real-time controllers run programs you create in LabVIEW. On the Starter Kit robot, the Single-Board
RIO is the real-time controller. Some real-time controllers, such as NI Single-Board RIO products,
consist of a real-time processor and operating system and a Field Programmable Gate Array (FPGA).
Other NI real-time controllers, such as PXI products, contain only a real-time processor. You also can
use certain third-party hardware, such as ARM microcontrollers, to run LabVIEW programs. Use the
Getting Started with the LabVIEW Robotics Module

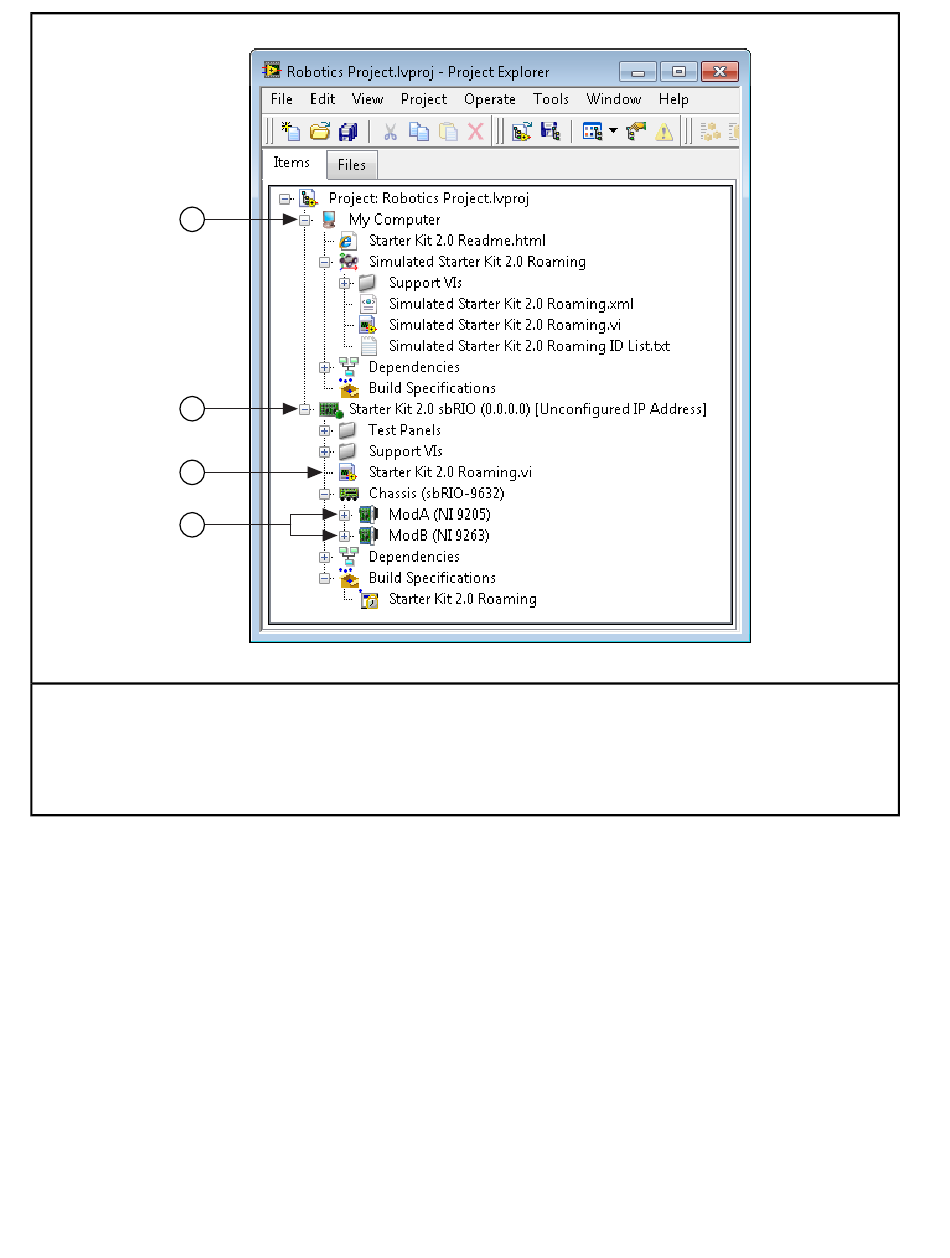

Figure 2. Parts of a LabVIEW Project
