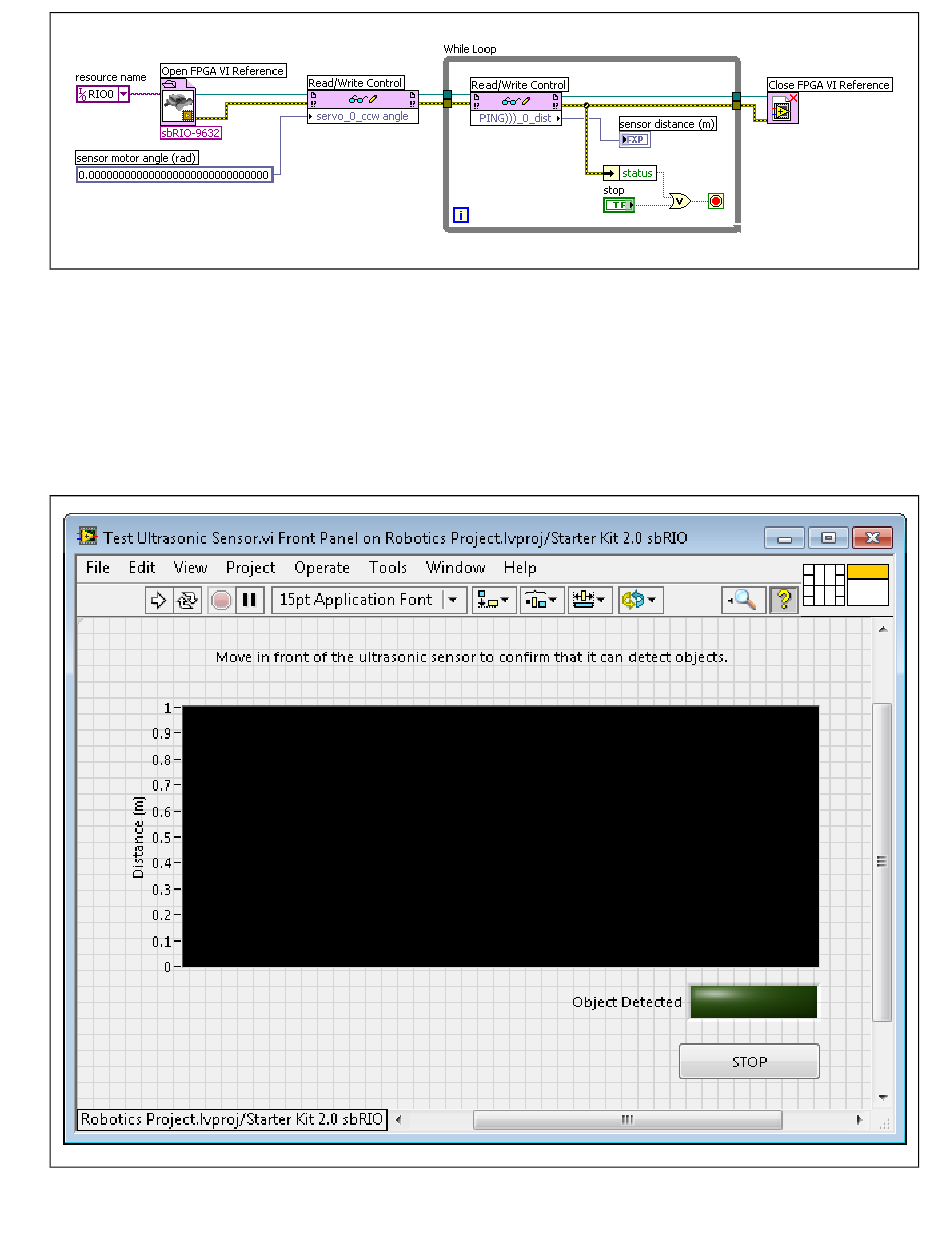

Figure 6. Block Diagram of a VI that Communicates with an FPGA VI
Refer to the Robotics Module»LabVIEW Robotics Starter Kit»Programming a Starter Kit Robot
topic on the Contents tab of the LabVIEW Help for more information about using traditional FPGA
programming versus the VIs on the Starter Kit palette.
Return to the block diagram for the Test Ultrasonic Sensors VI and complete the following steps to
continue exploring the VI.
1. Select Window»Show Front Panel to display the front panel of the VI, as shown in Figure 7.
Figure 7. Front Panel of the Test Ultrasonic Sensor VI
©
