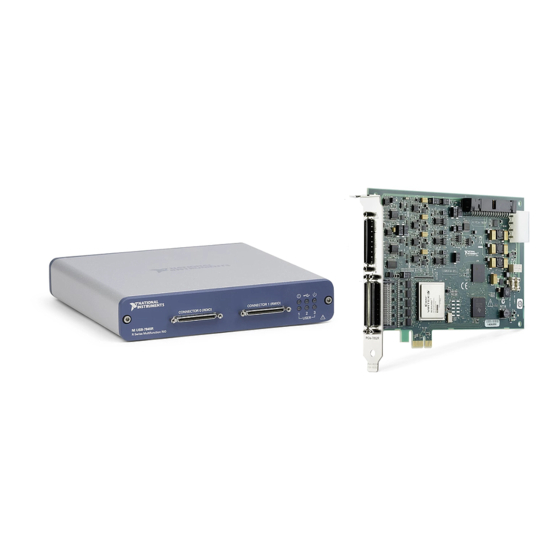

National Instruments PCIe-7858 User Manual

National Instruments PCIe-7858 User Manual

Hide thumbs Also See for PCIe-7858:

Advertisement

Quick Links

National Instruments PCIe-7858R Manual
Get Pricing & Availability at
ApexWaves.com
Call Today: 1-800-915-6216
Email:
sales@apexwaves.com
https://www.apexwaves.com/modular-systems/national-instruments/r-series/PCIe-7858R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIe-7858 and is the answer not in the manual?

Questions and answers

Summary of Contents for National Instruments PCIe-7858

  • Page 1 National Instruments PCIe-7858R Manual Get Pricing & Availability at ApexWaves.com Call Today: 1-800-915-6216 Email: sales@apexwaves.com https://www.apexwaves.com/modular-systems/national-instruments/r-series/PCIe-7858R...
  • Page 2: Hardware Overview

    1 MS/s AI, 512 MB DRAM, Kintex-7 325T FPGA This document provides compliance, pinout, connectivity, mounting, and power information for the PCIe-7858. Hardware Overview The following high-level block diagram represents the PCIe-7858. Figure 1. PCIe-7858 Block Diagram 100 MHz Flash...
  • Page 3 Positive analog input signal connection Negative analog input signal connection AISENSE Reference connection for NRSE measurements AIGND Ground reference for the analog input signal Analog output signal connection AOGND Ground reference for the analog output signal 2 | ni.com | NI PCIe-7858 User Manual...
  • Page 4: Analog Input

    Analog Input The PCIe-7858 provides connections for eight AI channels. Each channel has an AI+ pin, AI- pin, and AIGND pin to which you can connect both single-ended or differential voltage signals. Use the AISENSE pin to connect non-referenced single-ended signals.
  • Page 5 AI+ and the negative voltage signal to AI-. To connect grounded differential signals to the PCIe-7858, you must also connect the signal reference to AI GND. Figure 4. Connecting Grounded Differential Signals to the PCIe-7858...
  • Page 6: Analog Output

    AIGND Connection Accessory NI PCIe-7858 Analog Output The PCIe-7858 provides connections for eight analog output channels. Each channel has an AO pin and AOGND pin to which you can connect a load. Figure 6. Connecting a Load LOAD AOGND Connection...
  • Page 7: Field Wiring Considerations

    When the system powers on, the DIO channels are set as input low with pull-down resistors. To set another power-on state, you can configure the NI PCIe-7858 to load a VI when the system powers on. The VI can then set the DIO lines to any power-on state.
  • Page 8: Power Source

    Separate NI PCIe-7858 signal lines from high-current or high-voltage lines. These lines can induce currents in or voltages on the NI PCIe-7858 signal lines if they run in parallel paths at a close distance. To reduce the magnetic coupling between lines, separate them by a reasonable distance if they run in parallel or run the lines at right angles to each other.
  • Page 9: Worldwide Support And Services

    Device Temperature. The return value is in increments of 0.25 °C. For more details, refer to the NI PCIe-7858 Reference topic in LabVIEW Help. Worldwide Support and Services The NI website is your complete resource for technical support. At ni.com/support, you have access to everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers.
