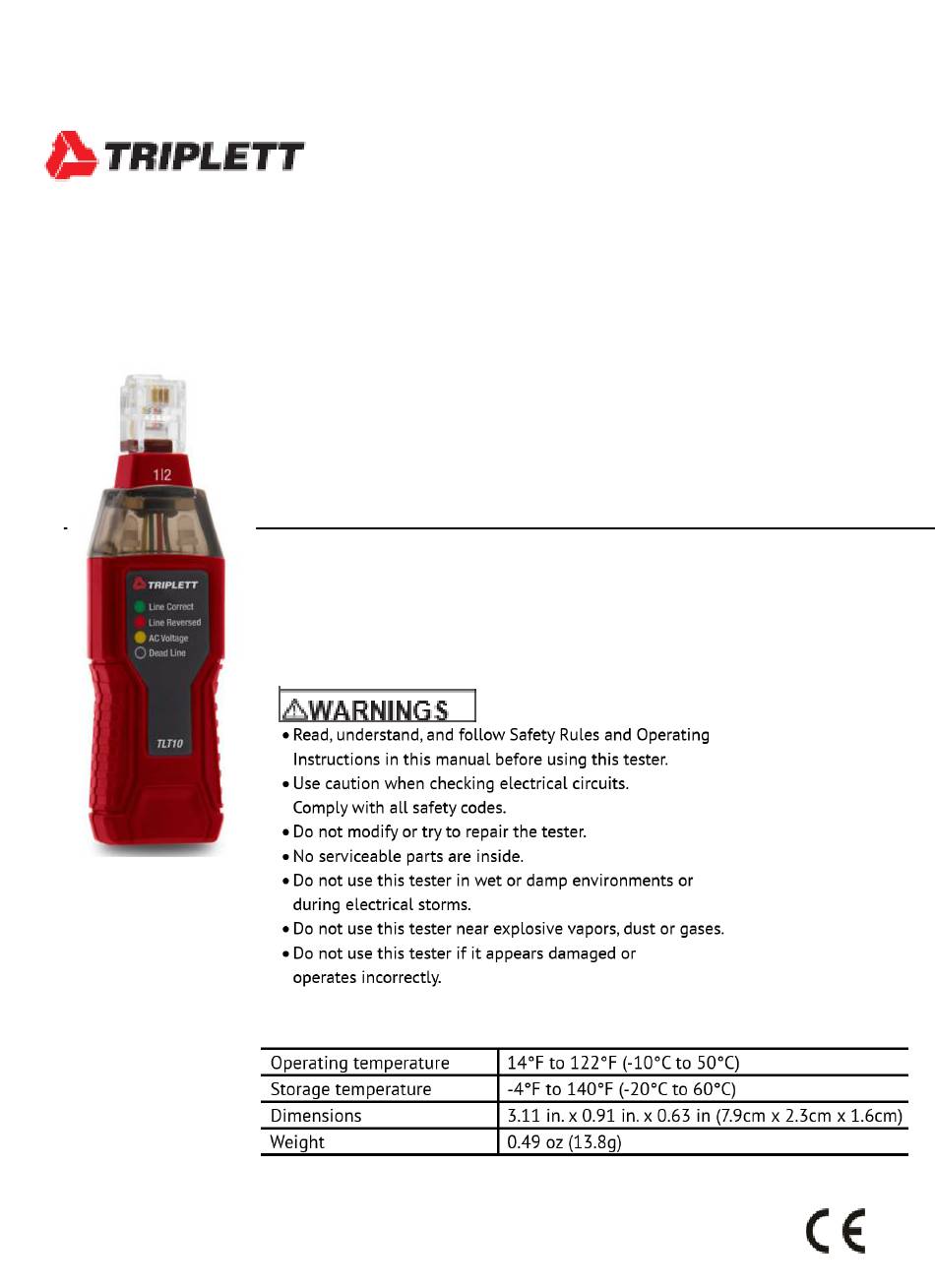

User Manual
TLT10
Telephone Line Tester
Introduction
The Triplett TLT10 Telephone Line Tester checks the status of
single and dual phone lines. When plugged into a phone jack, two
tri-color LEDs indicate if the lines are active and wired properly.
With proper use, this tester will provide many years of reliable
service.
General Specifications
Advertisement
Table of Contents
Related Manuals for Triplett TLT10
Summary of Contents for Triplett TLT10
- Page 1 TLT10 Telephone Line Tester Introduction The Triplett TLT10 Telephone Line Tester checks the status of single and dual phone lines. When plugged into a phone jack, two tri-color LEDs indicate if the lines are active and wired properly. With proper use, this tester will provide many years of reliable service.
- Page 2 Tester Description 1. Line 1 LED Indicator 2. Line 2 LED Indicator 3. RJ11 Plug Operation 1. Plug the tester into an RJ11 Phone Jack 2. Observe the LED indicators. See the chart below to determine status. Note: that only one LED will illuminate if the jack is wired for a single line. workmanship and material for a period of (1) one year from the date of purchase.
