Summary of Contents for Triplett TVR10G PRO

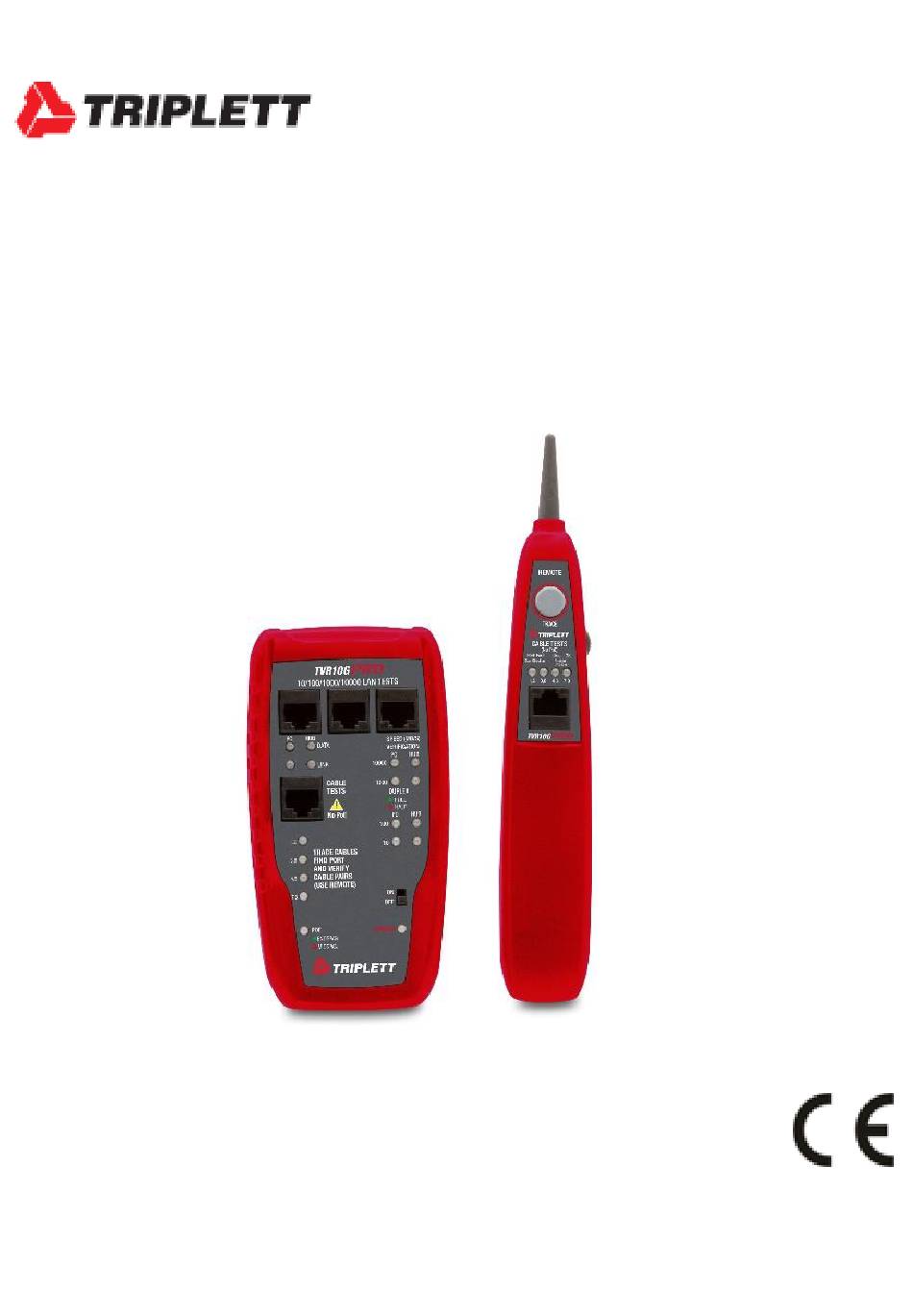

- Page 1 User Manual TVR10G PRO LAN Network Tester (10, 100, 1000 MB/s and 10GB/s)
- Page 2 Introduction Congratulations on your purchase of the Triplett TVR10G Pro LAN (Local Area Network) Ethernet Tester. Twisted pair cable is the standard for local area networks (LANs). Its popularity stems from its ease of use, cost, speed and maybe, most importantly, adaptability.
-
Page 3: International Safety Symbols
• Please take care not to plug the cable test jack into a PoE source or .damage may occur! • Do not expose tester to extremes in temperature or high humidity. NOTE: Before testing the PC network, you should first set up the corresponding Ethernet card attributes, turn off the "energy-saving Ethernet circuit"... -
Page 4: Meter Description

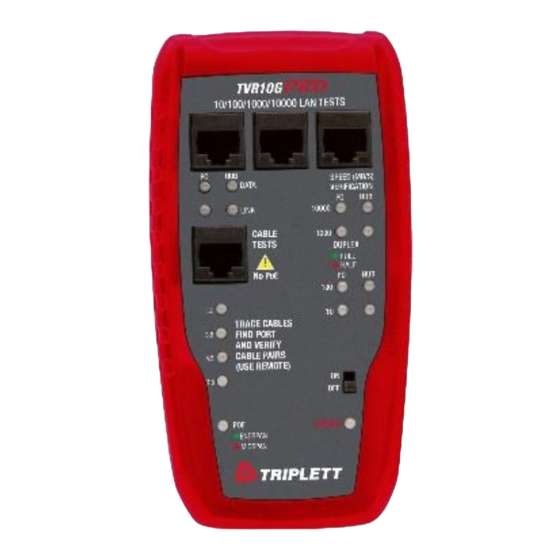

Description METER DESCRIPTION LAN Test Port LAN Speed and Type Display Power Switch Power LED Test Mode LED Cable Test Port (Main Unit) Cable Test LED (Main Unit) PoE LED Battery Cover (Main Unit) 10. Tester Probe 11. Test Button (Probe) 12. -
Page 5: Operation
Operation LAN Speed and Type Verification The tester has three ports for LAN testing, the left port and the middle port are straight-through connections, and the right port is cross-connected to the other two ports. When performing a single-port test, the left port and the middle port are commonly used choices. -
Page 6: Cable Test
forced to negotiate to 100Base-T half-duplex mode, and the final result displayed by the tester is 100Base-T half-duplex. POE Test If the POE is provided by a switch that supports POE, when the power pairs are on 1, 2 and 3, 6, this power supply method is called "POE endspan". -
Page 7: Specifications
Auto Power Off (APO) • To extend battery life, the tester will automatically shut down after approximately 10 minutes of inactivity. • When the power is turned off, the LED on the display panel will go out and the test cannot be performed. If you need to test, please restart the tester. Battery Replacement 1. -
Page 8: Warranty
Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
