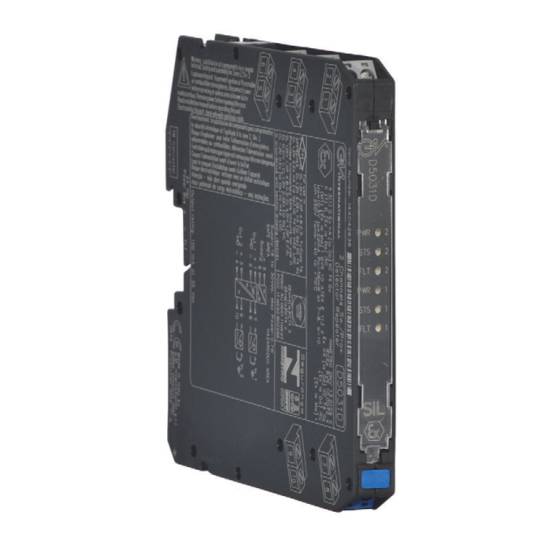

- Page 1 D5031S - D5031D INSTRUCTION MANUAL SIL 3 Switch/Proximity Detector Repeater Transistor Open Collector Output, DIN-Rail and Termination Board, Models D5031S, D5031D D5031 - SIL 3 Switch/Proximity Detector Repeater Open Collector Output G.M. International ISM0107-11...
-
Page 2: Technical Data
Current consumption @ 24 V: 22 mA for 2 channels D5031D, 12 mA for 1 channel D5031S with short circuit input and transistor closed, typical. Power dissipation: 0.53 W for 2 channels D5031D, 0.30 W for 1 channel D5031S with 24 V supply voltage, short circuit input and transistor closed, typical. -
Page 3: Ordering Information
Ordering Information Power Bus and DIN-Rail accessories: Model: D5031 Connector JDFT049 Cover and fix MCHP196 1 channel Terminal block male MOR017 Terminal block female MOR022 2 channels Front Panel and Features SIL 3 according to IEC 61508:2010 Ed. 2 for Tproof =2 / 10 years (≤10% / >10 % of total SIF). SIL 2 according to IEC 61508:2010 Ed. - Page 4 Parameters Table In the system safety analysis, always check the Hazardous Area/Hazardous Locations devices to conform with the related system documentation, if the device is Intrinsically Safe check its suitability for the Hazardous Area/Hazardous Locations and group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the D5031 series Associated Apparatus connected to it.
- Page 5 Termination voltage free contact required Power and board Fault Bus connector for line fault detection. Internal Dip switches programmable MODEL D5031S Supply 24 Vdc voltage free voltage free Proximity Contact Contact Out (SIL 3) Resistors R1 - R2 used with...
-
Page 6: Operation
On the section “Function Diagram” and enclosure side a block diagram identifies all connections. Identify the number of channels of the specific card (e.g. D5031S is a single channel model and D5031D is a dual channel model), the function and location of each connection terminal using the wiring diagram on the corresponding section, as an example: Connect 24 Vdc power supply positive at terminal “5”... - Page 7 Configuration D5031D used as double channel A configuration DIP switch is located on component side of pcb. This switch allows the configuration of input/output relationship, fault detection functions and operating mode. WARNING: dip-switch 6-7-8 must be set to “OFF” position. Dip switch factory settings.
-
Page 8: Dip Switch Configuration
Configuration D5031D used as duplicator or fault output A configuration DIP switch is located on component side of pcb. This switch allows the configuration of input/output relationship, fault detection functions and operating mode. WARNING: Terminals 9-10 must be shorted to set module as Duplicator or Fault Out. Dip-switch 3 must be set to “OFF”... - Page 9 Configuration D5031S A configuration DIP switch is located on component side of pcb. This switch allows the configuration of input/output relationship, fault detection functions and operating mode. WARNING: Dip-switch 7-8 must be set to “OFF” position. Dip switch factory settings. All Switches are OFF Dip switch configuration 7-8 must be set to "OFF"...
- Page 10 Configuration DIP Switch factory settings (valid for D5031S and D5031D) SW1 SW2 SW7 SW8 D5031D (used as double channel) Configuration Summary Table WARNING: dip-switch 6-7-8 must be set to “OFF” position. Channel Channel Line fault detection IN/OUT Operation Disabled NO-NC or NC-NO...
