- Page 1 BA Series Single Action Ballhead You’re on steady ground ™...

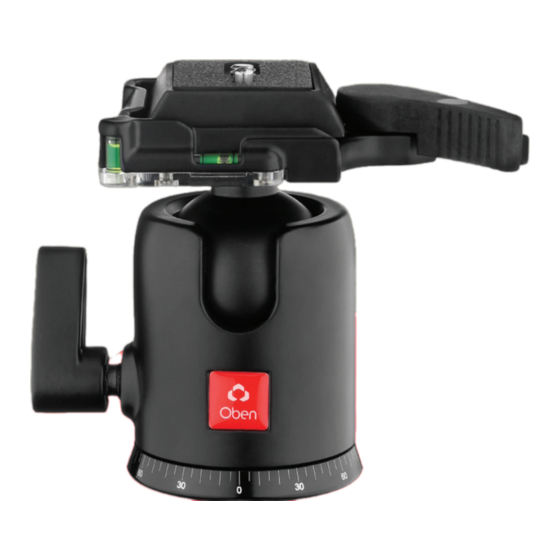

- Page 2 INTRODUCTION Thank You for choosing Oben! This Oben BA Series ballhead is a compact and lightweight head that provides nimble, reliable operation. The single lock makes it easy to rapidly adjust the ball and calibrated base. A snap-in quick- release plate is included for effortless mounting and dismounting of the camera.
- Page 3 TABLE OF CONTENTS Key Features Mount Ballhead To Tripod Converting Mounting Thread Main Locking Knob Operation Calibrated Base Dual-Locking Quick-Release Mount Quick-Release Plate Mount Camera Warnings...
- Page 4 KEY FEATURES Quick-Release Plate Dual-Locking Quick-Release Single Lock 1/4″-20 UNC Mounting Screw Base With 360° Markings Bubble levels 90° Groove...
- Page 5 OPERATION 1. Mount Ballhead To Tripod To mount the ballhead on the tripod, first tighten the locking knob on the head. Then, being careful to properly align the tripod stud and the ballhead hole to avoid damaging them, rotate the ballhead clockwise onto the tripod, and tighten it by hand.
- Page 6 5. Dual-Locking Quick-Release The BA series is designed with a dual-locking quick-release latch to keep the camera securely in place on the head. To unlock the quick-release,...
- Page 7 140° F (-30° and 60° C). Do not operate in saltwater. Dry ballhead if it becomes wet. • Remove the camera from the ballhead during setup or transport. • Keep out of reach of children. Visit our website at ObenSupports.com for more Oben products.
- Page 8 www.obensupports.com...
