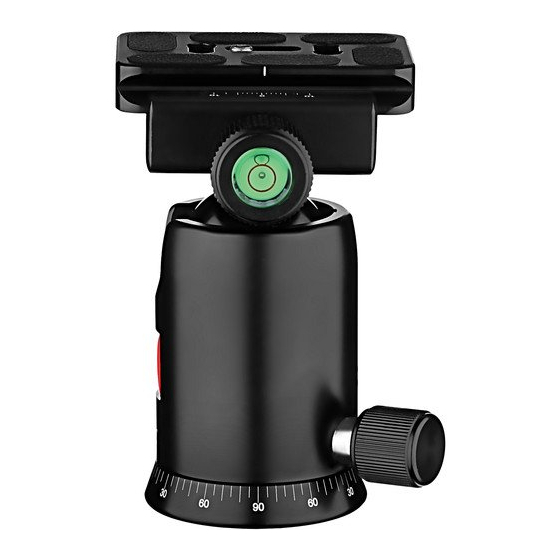

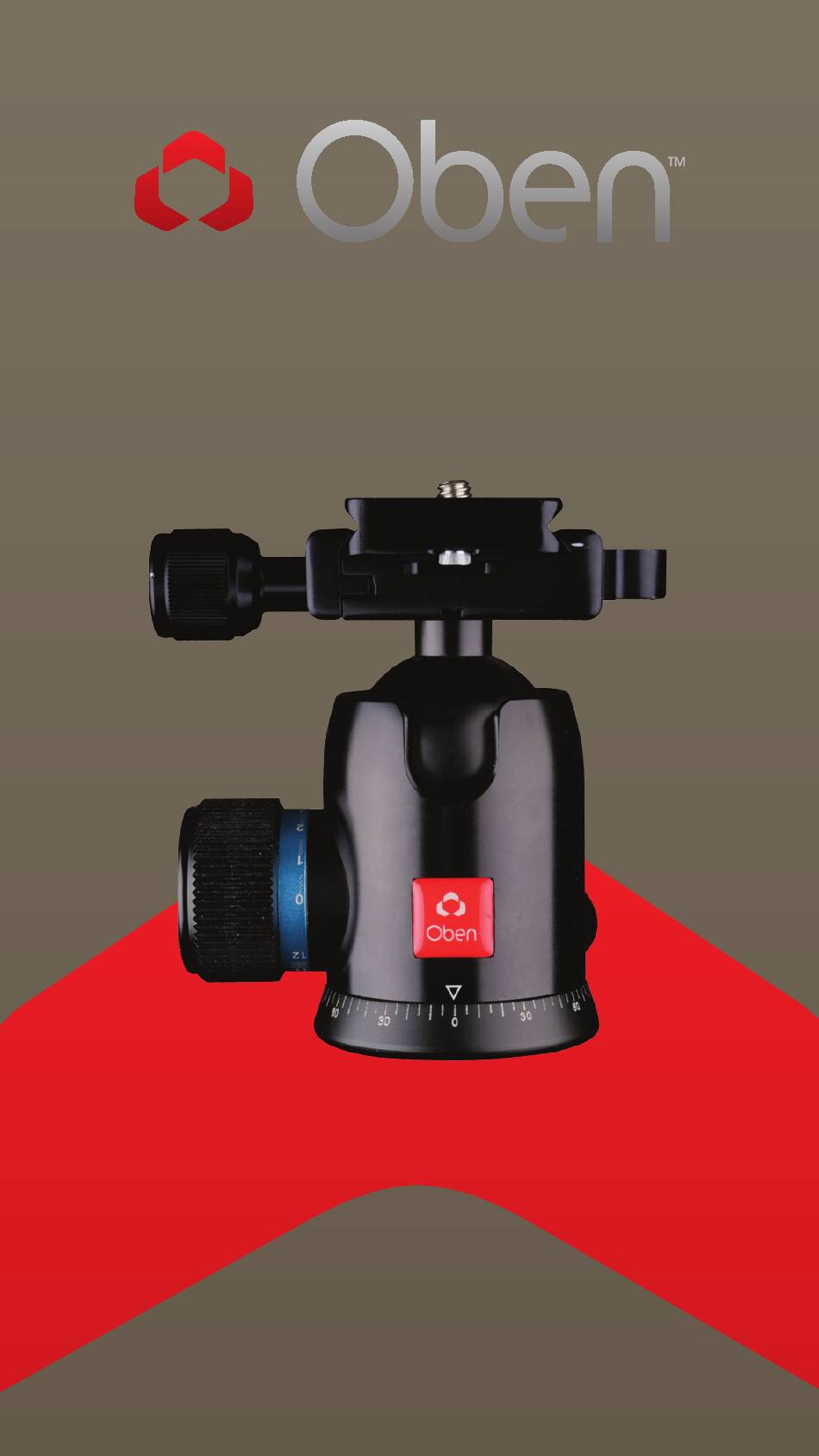

- Page 1 BE Series Dual Action Ballhead You’re on steady ground ™...
- Page 2 IntroductIon Thank You for choosing Oben! This sturdy Oben BE Series Dual-Action ballhead provides smooth, effortless operation. Two locks provide independent adjustment and locking of the ball and the panoramic base. A snap-in quick- release plate is included for quick, simple mounting/ dismounting of the camera.
- Page 3 tABLE oF contEntS Key Features Mount Ballhead To Tripod Converting Mounting Thread Main Locking Knob Operation Mount Quick-Release Plate Mount Camera Panoramic Base Warnings...
- Page 4 KEY FEAturES Quick-Release Plate Bubble Level 1/4”-20 UNC Mounting Screw Quick-Release Knob Main Locking Knob Locking Index Scale Pan Knob Panoramic Base With 360° Markings 90° Groove...
- Page 5 oPErAtIon 1. Mount Ballhead To Tripod To mount the ballhead on the tripod, first tighten all of the knobs on the head. Then, being careful to properly align the tripod stud and the ballhead hole to avoid damaging them, rotate the ballhead clockwise onto the tripod, and tighten it by hand.
- Page 6 Warning: Some manufacturer’s plates do not meet our specifications and may not lock your equipment securely in the Oben quick-release clamp. Please test all camera and lens plates made by manufacturers other than Oben to ensure compatibility. 5. Mount Camera...
- Page 7 140° F. Do not operate in saltwater. Dry ballhead if it becomes wet. • Remove the camera from the ballhead during setup or transport. • Keep out of reach of children. Visit our website at ObenSupports.com for more Oben products.
- Page 8 www.obensupports.com...
