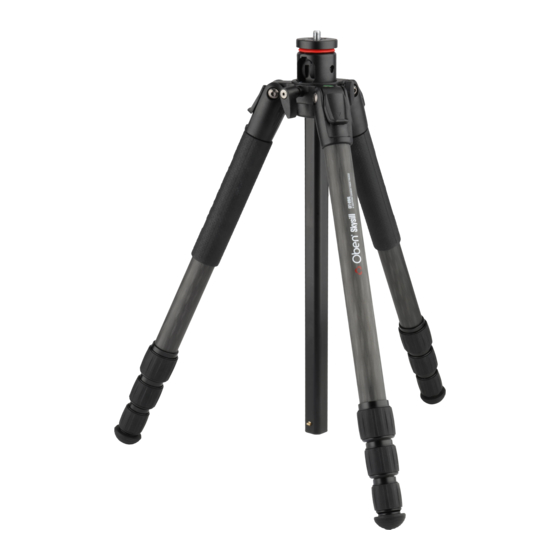

Carbon fiber tripod
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Skysill Series
Carbon Fiber Tripods
You're on steady ground
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Skysill Series and is the answer not in the manual?

Questions and answers

Related Manuals for Oben Skysill Series

Summary of Contents for Oben Skysill Series

  • Page 1 Skysill Series Carbon Fiber Tripods You’re on steady ground ®...
  • Page 2 Skysill kits include Oben’s BE Series dual-action ballhead that features two locks for independent adjustment of the ball and panoramic base. An Arca-type quick-release plate allows for quickly mounting and swapping cameras, so you’ll have...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Key Features Operation 8-17 Interchangeable Feet Leg Length Adjustment Leg Angle Adjustment Center-Column Adjustment Low-Angle Setup 11-13 Reversing the Center Column 11,13 Using the Short Cener Column Lateral Setup 14-15 Counterweight The Mounting Plate 16-17 Reversing the Screw Mounting a Head Attaching Accessories Warnings...

  • Page 4: Key Features

    KEY FEATURES Model CFT-6394...
  • Page 5 KEY FEATURES Reversible 3/8-16 and 1/4-20 head mounting screw Mounting plate Set screws Reversible center column Center column locking collar Bubble level Strap loop 3/8-16 accessory socket Leg angle adjustment lock Rubberized nonslip leg warmers Retractable and removable weight hook Twist locks Removable rubber feet Short center column...
  • Page 6 KEY FEATURES Model CFT-6194L...
  • Page 7 KEY FEATURES Reversible 3/8-16 and 1/4-20 head mounting screw Mounting plate Set screws Reversible center column Lateral rotating ring 90° notch Center column locking knob Bubble level Center column lateral opening Strap loop Leg angle adjustment lock 3/8-16 accessory socket Rubberized nonslip leg warmers Locking button Twist locks...

  • Page 8: Operation

    OPERATION OPERATION Interchangeable Feet The rubber feet that come attached to the tripod are good for hard surfaces like hardwood floors, pavement, or carpet that you don’t want to damage with spikes. Spiked feet are good for soft surfaces where some extra security is needed, like grass or dirt.

  • Page 9: Leg Angle Adjustment

    OPERATION OPERATION all three locks, and let the leg sections fall into place. Note: When setting up the tripod on an uneven surface, refer to the integrated bubble level to ensure that the mounting plate is straight and aligned with the horizon. Leg Angle Adjustment For stable support when shooting on uneven terrain, each tripod leg...

  • Page 10: Center-Column Adjustment

    OPERATION Center-Column Adjustment CFT-6394 To adjust the height of the center column, turn the locking collar counterclockwise to disengage the lock, and move the center column to the desired height. Turn the twist lock clockwise to tighten the lock. Make sure that the lock is adequately tightened to support the weight of the load on the mounting plate.

  • Page 11: Low-Angle Setup

    OPERATION Low-Angle Setup CFT-6394 There are two ways to adjust the tripod for low-angle shots. REVERSING THE CENTER COLUMN Reversing the center column allows you to place your camera almost at ground level. 1. Remove your camera from the tripod. 2.

  • Page 12: Using The Short Cener Column

    OPERATION Low-Angle Setup (continued) USING THE SHORT CENTER COLUMN The short center column allows an extremely wide leg angle for low-angle shots from close to ground level or on uneven terrain. 1. Follow steps 1 through 3 in Reversing the Center Column above.
  • Page 13 OPERATION CFT-6194L REVERSING THE CENTER COLUMN Important! For the Skysill tripod to operate smoothly, several components must be aligned. This figure shows the correct orientation with the lines at the top of the tripod leg and the lateral rotating ring, and the center column’s locking pin properly aligned.

  • Page 14: Lateral Setup

    OPERATION Lateral Setup CFT-6194L The center column can be set to a 90° angle and rotated a full 360°. Important! When you mount a camera to the tripod in this configuration, make sure to extend the camera over one of the tripod legs.

  • Page 15: Counterweight

    OPERATION Note: The center column lock is a spring-loaded ratchet handle. When the center column is blocking the full rotation of the lock, turn the lock as far as it will go. Pull it out, reposition it, and let the spring pull it back to reengage it.

  • Page 16: The Mounting Plate

    OPERATION The Mounting Plate REVERSING THE SCREW The tripod includes a mounting screw with a 1/4-20 thread on one end and a 3/8-16 thread on the other. This allows you to mount a tripod head with either sized socket. To switch between the two sizes of mounting screw, follow these steps: 1.

  • Page 17: Mounting A Head

    OPERATION MOUNTING A HEAD Align the bottom of the head with the tripod’s mounting screw, then twist clockwise until fully secured. Do not overtighten, as this may damage the head or the mounting screw. The mounting plate is equipped with a set screw, which clamps against the base of the head to prevent unintentional loosening and to ensure the head is securely...

  • Page 18: Warnings

    • Always support the camera on top of the center column with one hand while adjusting the center column’s height. OPTIONAL ACCESSORIES Oben Tripod Strap with Quick-Release Loop and Spring Lock • TS-10 • TS-100 Oben Deluxe Tripod Strap with Swivel Clip •...

  • Page 19: Specifications

    SPECIFICATIONS CFT-6394 CFT-6194L Maximum Height 71.7 in. 67 in. (1.8 m) (1.7 m) with Center Column Extended Maximum Height 61.7 in. 53 in. (1.6 m) (1.3 m) w/o Center Column Extended Minimum Height 6.5 in. (16.5 cm) 3.6 in. (9.1 cm) Folded Length 24.3 in.
  • Page 20 www.obensupports.com...

This manual is also suitable for:

Skysill cft-6194l skysill ctf-6394
