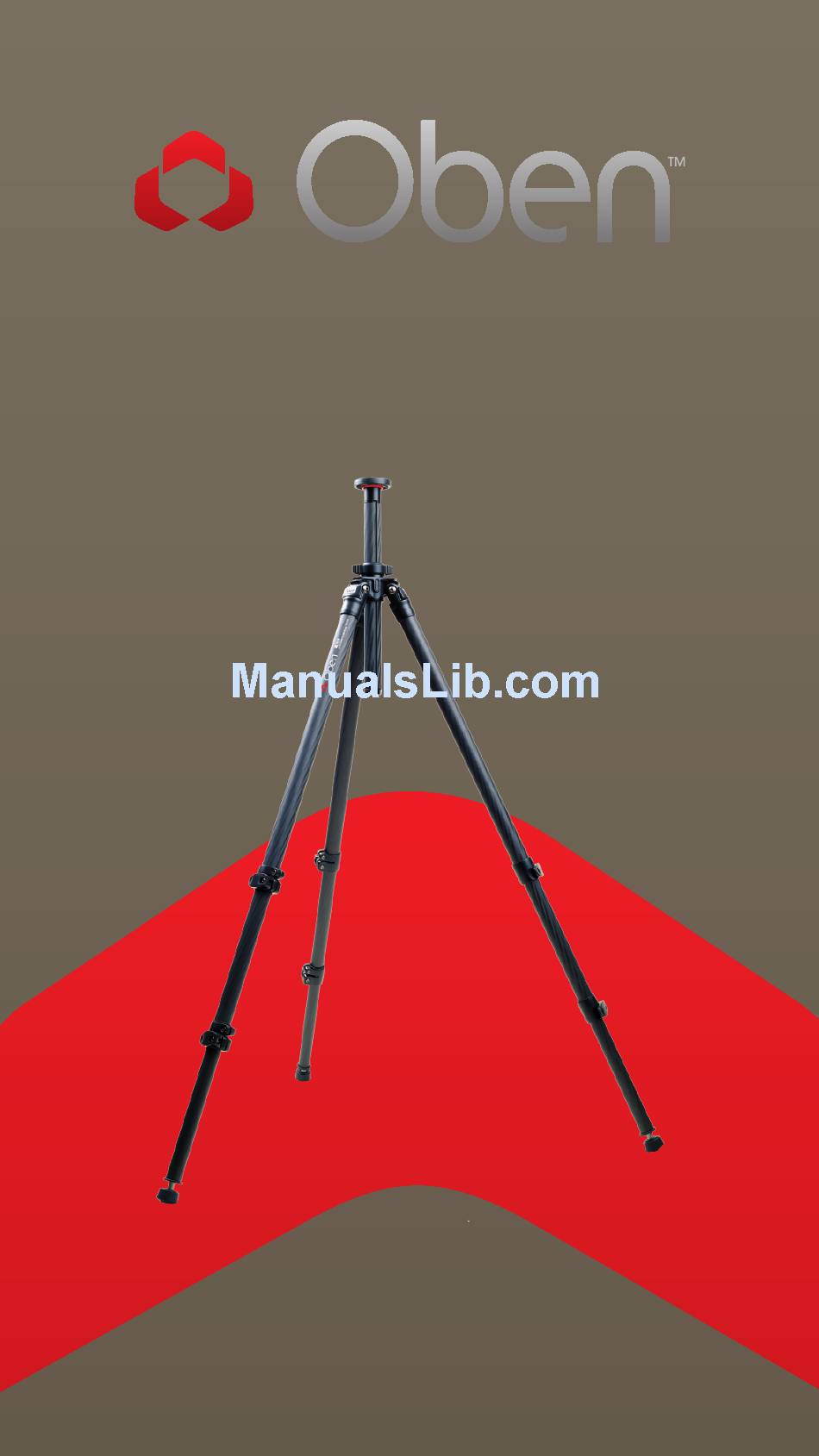

  • Page 1 AC-2300 CC-2300/2400 Series Tripod You’re on steady ground ™...
  • Page 2 IntroductIon Thank You for choosing Oben! Congratulations on your purchase of this sturdy, multi-featured Oben AC-2300/CC-2300/CC-2400 Series tripod. It will deliver lightweight, rock-solid support for your camera for years to come. Adjusting the tripod’s height is simple: just open the flip locks to extend or retract each telescopic leg separately.

  • Page 3: Table Of Contents

    tABLE oF contEntS Key Features Leg Length Adjustment Leg Angle Adjustment Center Column Adjustment Low-Angle Setup Counterweight Mounting the Head Retractable Spiked Feet Warnings...

  • Page 4: Key Features

    KEY FEAturES...
  • Page 5 KEY FEAturES Center column locking knob Short split-column Grooved reversible center column Head locking screws Leg angle adjustment lock Flip-style leg lock levers Bubble level All-terrain feet Dual 3/8”-1/4”-20 head mounting screw Strap mount Retractable and removable weight hook Rubberized non-slip leg warmer (for aluminum models only)

  • Page 6: Leg Length Adjustment

    oPErAtIon oPErAtIon 1. Leg Length Adjustment A flip-lock design allows you to quickly change the height of each telescopic tripod leg. To adjust the height of a leg: push the lever open, position the leg at the desired height, and push the lever closed to lock the leg in place.

  • Page 7: Center Column Adjustment

    oPErAtIon oPErAtIon 3. Center Column Adjustment The sliding center column can be used to adjust the height of the camera. Fully extending the center column after the legs have been fully extended will place the camera at the highest position possible with this tripod.
  • Page 8 oPErAtIon 4. Low-Angle Setup 2. Turn the center column locking knob counterclockwise to unlock the center column. Remove the center column from the tripod. 3. Reverse the center column and insert it up the bottom of the tripod top plate. 4.Slide the column into the desired position.

  • Page 9: Counterweight

    oPErAtIon 4. Put the main column aside. Tighten the Allen screw with the Allen wrench so that the screw is flush with the surface of the center column. Insert the short column into the tripod. Tighten the center column locking knob securely. 5.

  • Page 10: Retractable Spiked Feet

    6. Mounting the Head The top plate on Oben tripods is equipped with three set screws which clamp against the base of the tripod head to ensure effective low angle adj and secure locking of the head to the tripod.

  • Page 11: Warnings

    AccESSorIES • TS-110 Deluxe Padded Neoprene Tripod Strap with zippered pocket • TS-100 Padded Neoprene Tripod Strap Visit our website at ObenSupports.com for more Oben products.
