- Page 1 TVH-108 Travel Video Head You’re on steady ground ®...

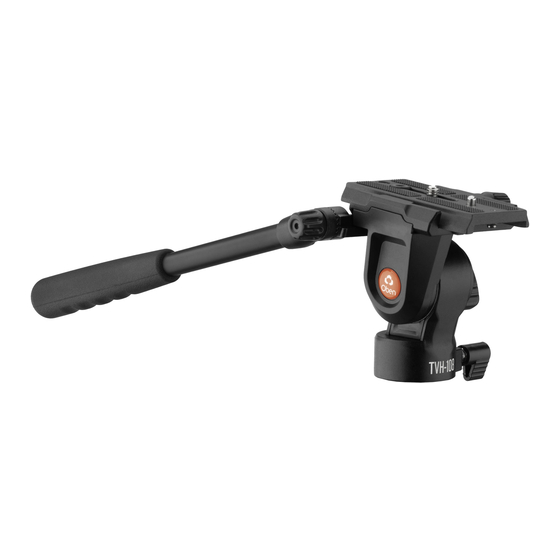

- Page 2 INTRODUCTION Thank you for choosing Oben The Oben TVH-108 Travel Video Head provides smooth panning and tilting for cameras and lenses weighing up to 8.8 pounds. Perfect for shooting on the go with a point and shoot camera, camcorder, or a small DSLR, the head features independent adjustment for full 360°...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Key Features _________________________ 4-5 Mounting the Video Head to a Tripod __________6 Converting the Mounting Thread _____________6 Mounting the Quick-Release Plate ____________7 Mounting the Camera _____________________8 Leveling the Camera ______________________8 Tilt Control _____________________________9 Pan Control _____________________________9 Specifications _________________________10 Warnings ______________________________11... -
Page 4: Key Features
KEY FEATURES... - Page 5 KEY FEATURES Tilt knob Pan knob Bubble level Adjustable arm Arm adjust knob Quick-release plate 1/4-20 mounting screw Guide pin Quick-release plate safety screw Quick-release knob Safety lock...
-
Page 6: Mounting The Video Head To A Tripod
OPERATION OPERATION Mounting the Video Head to a Tripod Tighten the pan knob, and then rotate the head clockwise onto the tripod’s mounting stud. Tighten the head until secure. CONVERTING THE MOUNTING THREAD For tripods with a 1/4-20 mounting stud, screw the included 3/8-16 to 1/4-20 reducer bushing into the head’s mounting socket. -
Page 7: Mounting The Quick-Release Plate
Warning: Some manufacturers’ quick-release plates do not meet our specifications and may not lock your equipment securely in the Oben TVH-108. Make sure to test any non-Oben camera and lens plates to ensure compatibility. -
Page 8: Mounting The Camera
OPERATION Mounting the Camera 1. Tighten all knobs except the quick-release knob. 2. Slide the guide-pin side of the quick-release plate past the safety lock on the clamp. 3. Adjust the position of the quick- release plate to ensure the best balance for your camera, and tighten the quick-release knob until the plate is secure. -
Page 9: Tilt Control
OPERATION Tilt Control 1. Loosen the arm adjust knob to set the arm at the desired angle. Tighten the arm adjust knob until secure. 2. Loosen the tilt lock by turning it counterclockwise to tilt your camera while you’re shooting. When the tilt knob is loosened, a spring-loaded counter balance will allow smoother tilting. -
Page 10: Specifications
OPERATION Specifications Head Type Video Base Mount 3/8-16 thread Quick-Release Type 501 type Load Capacity 8.8 lb. (4 kg) Number of Bubble Levels Friction Control Tilt Angle +90° to -90° Independent Pan Lock Base Diameter 1.7 in. (4.3 cm) Height 4 in. -
Page 11: Warnings
• Do not operate in salt water. Dry the video head if it becomes wet. • Remove the camera from the head during setup or transport. • Keep out of reach of children. Visit our website at ObenSupports.com for more Oben products. - Page 12 www.obensupports.com...
