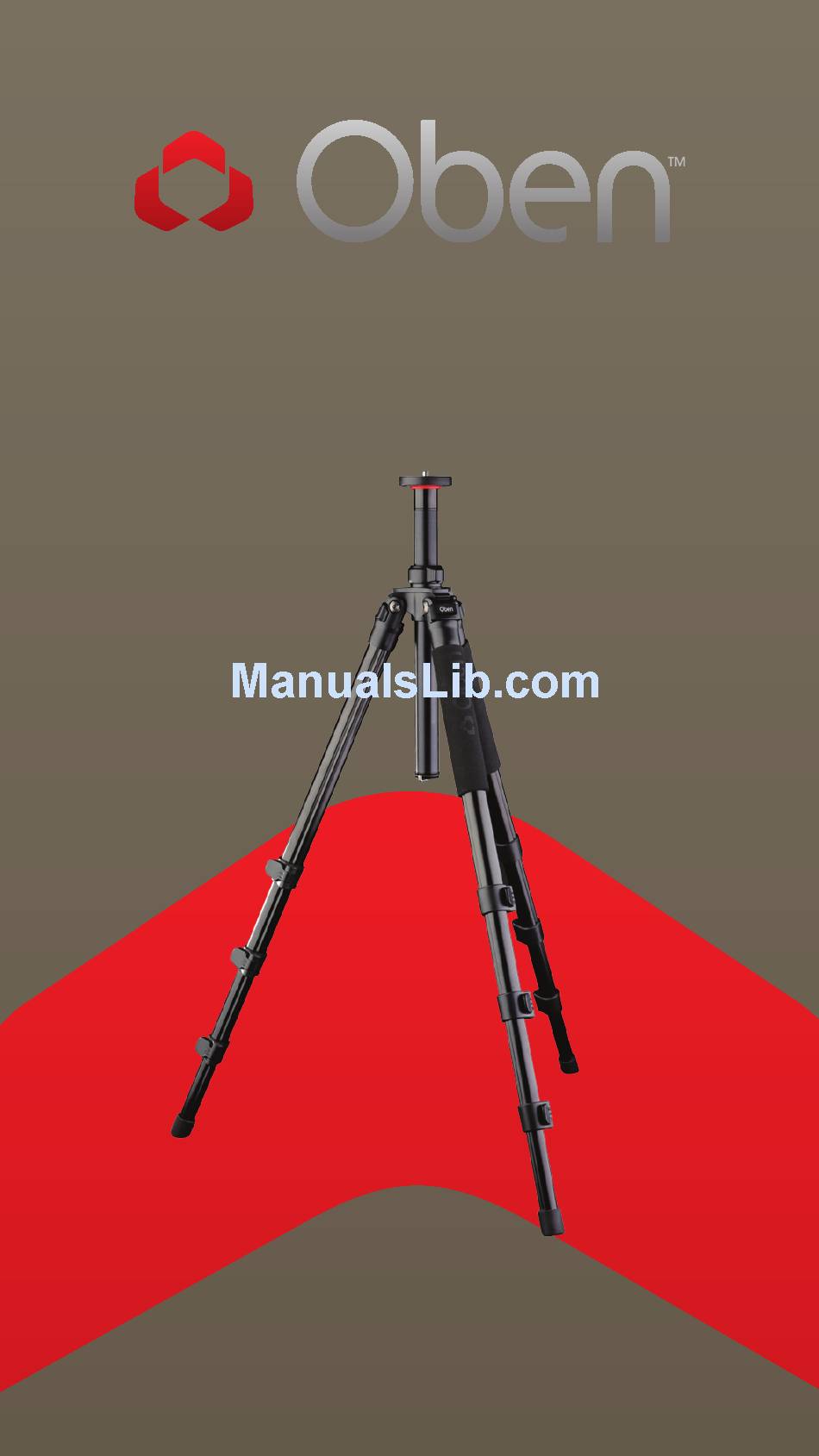

- Page 1 AC-1300/1400 Series Tripod You’re on steady ground ™...
- Page 2 INTRODUCTION Thank You for choosing Oben! The Oben AC-1300/1400 Series are versatile and durable tripods that are designed for quick and precise camera placement as well as security for your camera. AC-1300/1400 Series tripods feature flip locks for fast and easy height adjustment for each telescopic leg.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Key Features Leg Length Adjustment Leg Angle Adjustment Center Column Adjustment Low-Angle Setup Counterweight Mounting a Head Warnings... -
Page 4: Key Features
KEY FEATURES... - Page 5 KEY FEATURES Dual 3/8″-1/4″-20 head mounting screw Short split-column Center column locking knob Bubble level Strap mount Leg angle adjustment lock Closed-cell foam grip Grooved reversible center column Retractable and removable weight hook Flip-style leg lock levers Rubber feet...
-
Page 6: Leg Length Adjustment
OPERATION OPERATION 1. Leg Length Adjustment To adjust the height of each leg independently, do the following: 1. Open the flip-lock lever 2. Adjust the leg to the desired height. 3. Close the flip-lock to lock the leg in place. 2. -
Page 7: Center Column Adjustment
OPERATION OPERATION 3. Center Column Adjustment The sliding center column can be used to adjust the height of the camera. Fully extending the center column after the legs have been fully extended will place the camera at the highest position possible with this tripod. - Page 8 OPERATION 4. Low-Angle Setup (continued) 1. With the column lowered, remove the built-in weight hook from the bottom of the column by turning it counterclockwise and pulling it out of the column. 2. Turn the center column locking knob counterclockwise to unlock the center column.
-
Page 9: Counterweight
OPERATION 2. Turn the center column locking knob counterclockwise to unlock the center column. Remove the center column from the tripod. 3. Using the smallest included Allen wrench, loosen the Allen screw located near the top of the center column. When the Allen screw is loosened, unscrew the top part of the center column and remove it from the column. -
Page 10: Mounting A Head
OPERATION 6. Mounting a head The tripod includes a mounting screw with a 1/4″ screw on one end and a 3/8″ screw on the other, allowing you to mount either size tripod head. To switch between the two sizes do the following: 1. -
Page 11: Warnings
• All photos are for illustrative purposes only. OPTIONAL ACCESSORIES • Oben TS-110 Deluxe Padded Neoprene Tripod Strap with zippered pocket • Oben TS-100 Deluxe Tripod Strap with Swivel Hook • Oben STB-10 Tripod Hammock Visit our website at ObenSupports.com... - Page 12 www.obensupports.com...
