Summary of Contents for Oben CTM-2400
- Page 1 CTM-2400/2500 CTM/ATM-2600 Monopod You’re on steady ground ™...
- Page 2 The monopods include a wrist strap to help secure the monopod and keep it stable during shooting, and a leg warmer for comfortable handling in cold weather. Please read this entire manual before using your Oben monopod. Warnings: Do not exceed the monopod’s maximum load capacity.

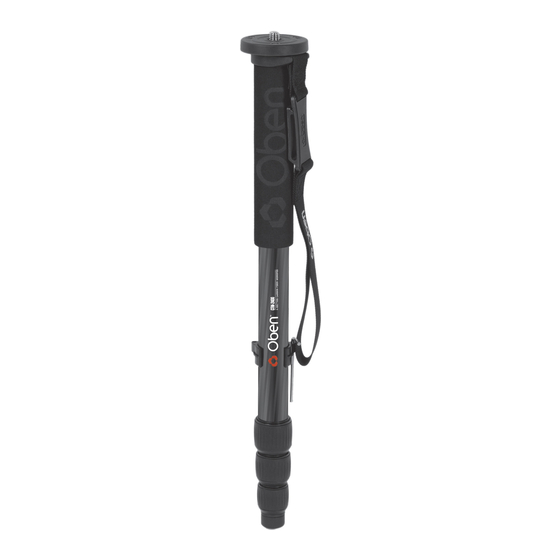

- Page 3 Overview Integrated Mount Wrist Strap and Belt Clip The top mount attaches a camera Wrist strap for or a lens collar more secure directly onto the handling while monopod. A tilt shooting. Belt clip head can be used offers a convenient for greater control.
- Page 4 OPERATION 1. Height Adjustment Twist the lock clockwise , and reposition the leg . Then twist the lock counterclockwise until secure. 2. Mounting Screw The monopod comes with a reversible 3/8-16 and 1/4-20 mounting screw that allows you to mount any tripod head or camera.
- Page 5 OPERATION 3. Mounting a Head Align the head’s socket with the monopod’s mounting screw , and twist it clockwise until fully secured. Be sure that the bottom of the head is flush with the plate. For compatible heads, tighten the three integrated set screws with the included hex key Important!
- Page 6 OPERATION 5. Belt Clip The monopod’s wrist strap includes an integrated belt clip. Slide the clip onto your belt for hands-free transport. 6. Retractable Spike A spike is built into the monopod’s rubber foot. Use the rubber foot for indoor or flat surfaces.
- Page 7 SPECIFICATIONS CTM- CTM- CTM- ATM- 2600 2400 2500 2600 Camera 1/4-20 male, 1/4-20 male, 1/4-20 male, 1/4-20 male, 3/8-16 male 3/8-16 male 3/8-16 male 3/8-16 male Mounting Screw Leg Lock Type Twist lock Twist lock Twist lock Twist lock Leg Sections Load Capacity 22 lb.
- Page 8 www.obensupports.com...
