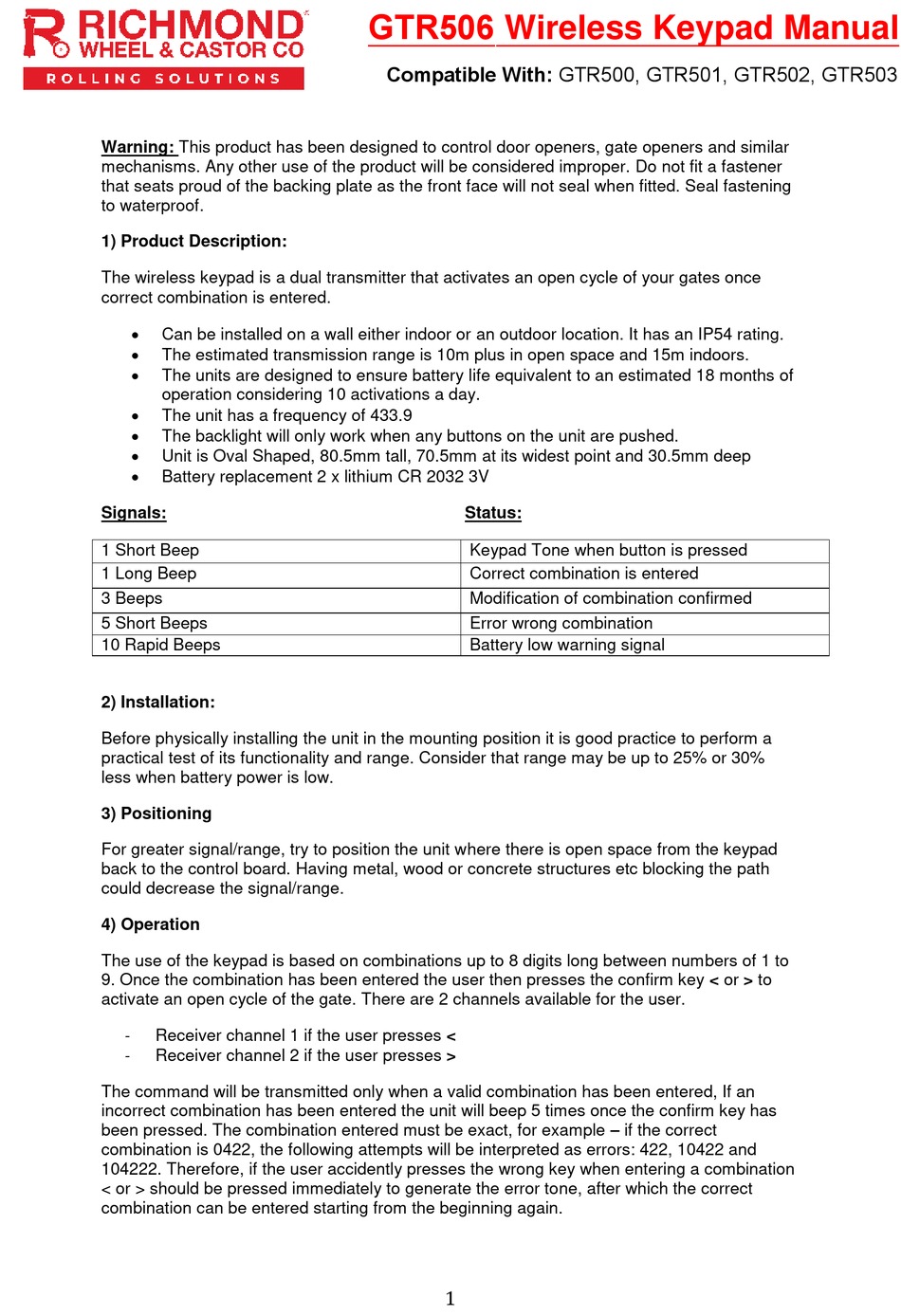

Richmond GTR506 Manual

Warning: This product has been designed to control door openers, gate openers and similar
mechanisms. Any other use of the product will be considered improper. Do not fit a fastener
that seats proud of the backing plate as the front face will not seal when fitted. Seal fastening
to waterproof.

1) Product Description:

The wireless keypad is a dual transmitter that activates an open cycle of your gates once
correct combination is entered.

Can be installed on a wall either indoor or an outdoor location. It has an IP54 rating.

The estimated transmission range is 10m plus in open space and 15m indoors.

The units are designed to ensure battery life equivalent to an estimated 18 months of
Operation considering 10 activations a day.

The unit has a frequency of 433.9

The backlight will only work when any buttons on the unit are pushed.

Unit is Oval Shaped, 80.5mm tall, 70.5mm at its widest point and 30.5mm deep

Battery replacement 2 x lithium CR 2032 3V
Signals:
1 Short Beep
1 Long Beep
3 Beeps
5 Short Beeps
10 Rapid Beeps
2) Installation:
Before physically installing the unit in the mounting position it is good practice to perform a
practical test of its functionality and range. Consider that range may be up to 25% or 30%
less when battery power is low.
3) Positioning
For greater signal/range, try to position the unit where there is open space from the keypad
back to the control board. Having metal, wood or concrete structures etc blocking the path
could decrease the signal/range.
4) Operation
The use of the keypad is based on combinations up to 8 digits long between numbers of 1 to
9. Once the combination has been entered the user then presses the confirm key < or > to
activate an open cycle of the gate. There are 2 channels available for the user.
Receiver channel 1 if the user presses <
-
Receiver channel 2 if the user presses >
-
The command will be transmitted only when a valid combination has been entered, If an
incorrect combination has been entered the unit will beep 5 times once the confirm key has
been pressed. The combination entered must be exact, for example – if the correct
combination is 0422, the following attempts will be interpreted as errors: 422, 10422 and
104222. Therefore, if the user accidently presses the wrong key when entering a combination
< or > should be pressed immediately to generate the error tone, after which the correct
combination can be entered starting from the beginning again.
GTR506 Wireless Keypad Manual
Compatible With: GTR500, GTR501, GTR502, GTR503
Status:
Keypad Tone when button is pressed
Correct combination is entered
Modification of combination confirmed
Error wrong combination
Battery low warning signal
