Richmond GTR055 Manual

Wired keypad to suit automatic gate kits

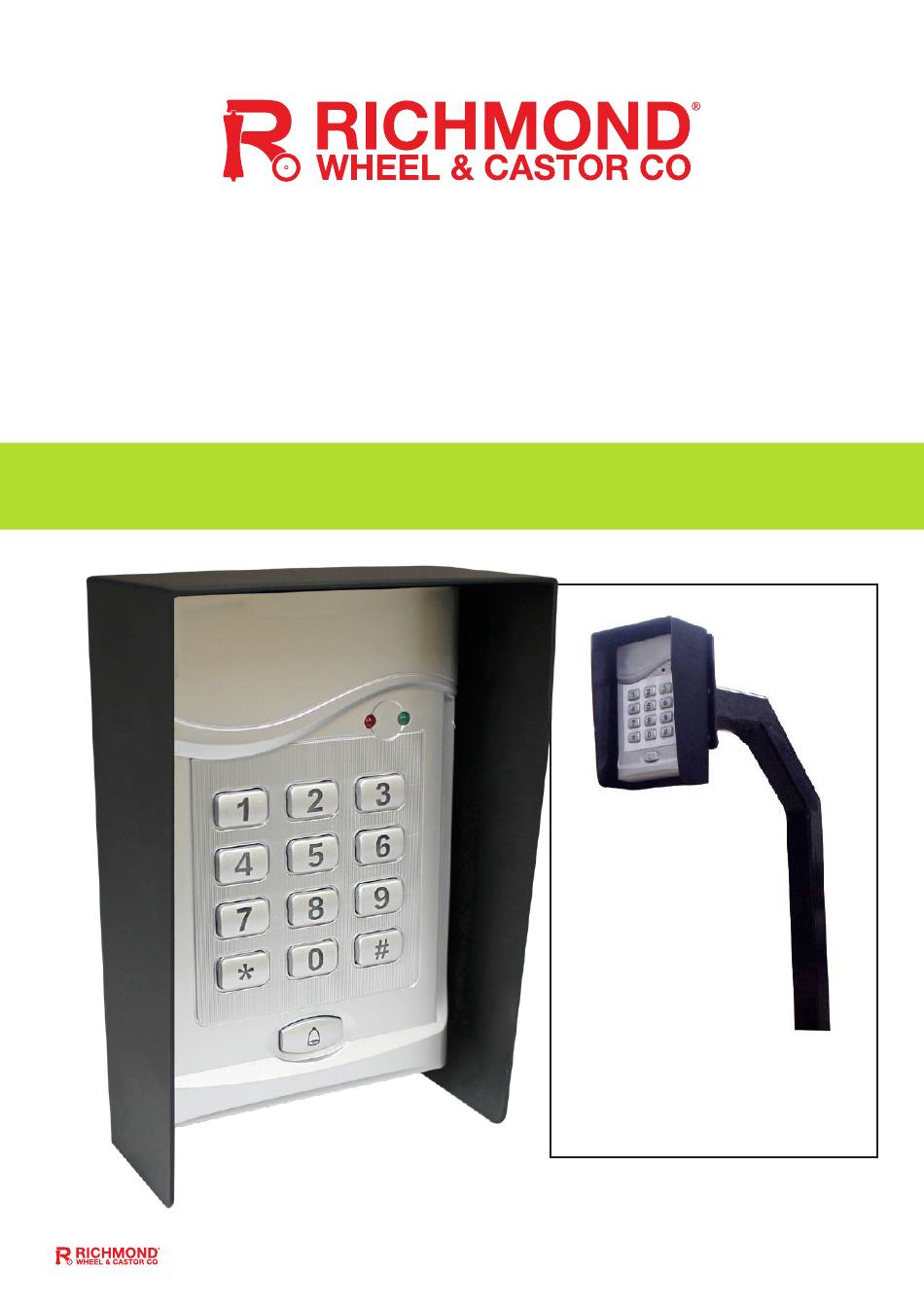

Wired Keypad to Suit

Automatic Gate Kits

GTR055

Suits the Following Richmond Gate Motors:

GTR058, GTR062, GTR078, GTR099, GTR064, GTR156, GTR207

Optional gooseneck

post to suit available

Part Number: GTR056

GTR055 Electric Lock Manual Rev 1

Table of Contents

Need help?

Do you have a question about the GTR055 and is the answer not in the manual?

Page 1 Wired Keypad to Suit Automatic Gate Kits GTR055 Suits the Following Richmond Gate Motors: GTR058, GTR062, GTR078, GTR099, GTR064, GTR156, GTR207 Optional gooseneck post to suit available Part Number: GTR056 GTR055 Electric Lock Manual Rev 1...
Page 2 Part A: Definition of the Flat Cable Part B: Connection with Swing Gate Openers GTR055 Electric Lock Manual Rev 1...
Page 3 Step 3: Repeat step 2 to confirm the change. The keypad will return to programming mode after the change. Press and release the " " button to return to standby mode if you do not want to make any other changes. GTR055 Electric Lock Manual Rev 1...
Page 4 " button to return to standby mode if you do not want to make any other changes. NOTE: Factory default entry password is blank. You can press "6" "# " "#" to deactivate the entry password. GTR055 Electric Lock Manual Rev 1...
Page 5 If the keypad has been set to "Password" mode, when the keypad is in standby mode, you can enter the 6 digit entry password and then press and release the "#" button to operate the gate opener. GTR055 Electric Lock Manual Rev 1...
Page 6 Step 4: Enter "3 3 2 6 6 2" and then press and release the "#" button. Step 5: Repeat step 4 to confirm the change. Step 6: Press and release the " " button to return to standby mode. GTR055 Electric Lock Manual Rev 1...
Page 7 Part E: Keying Indication Summary GTR055 Electric Lock Manual Rev 1...
