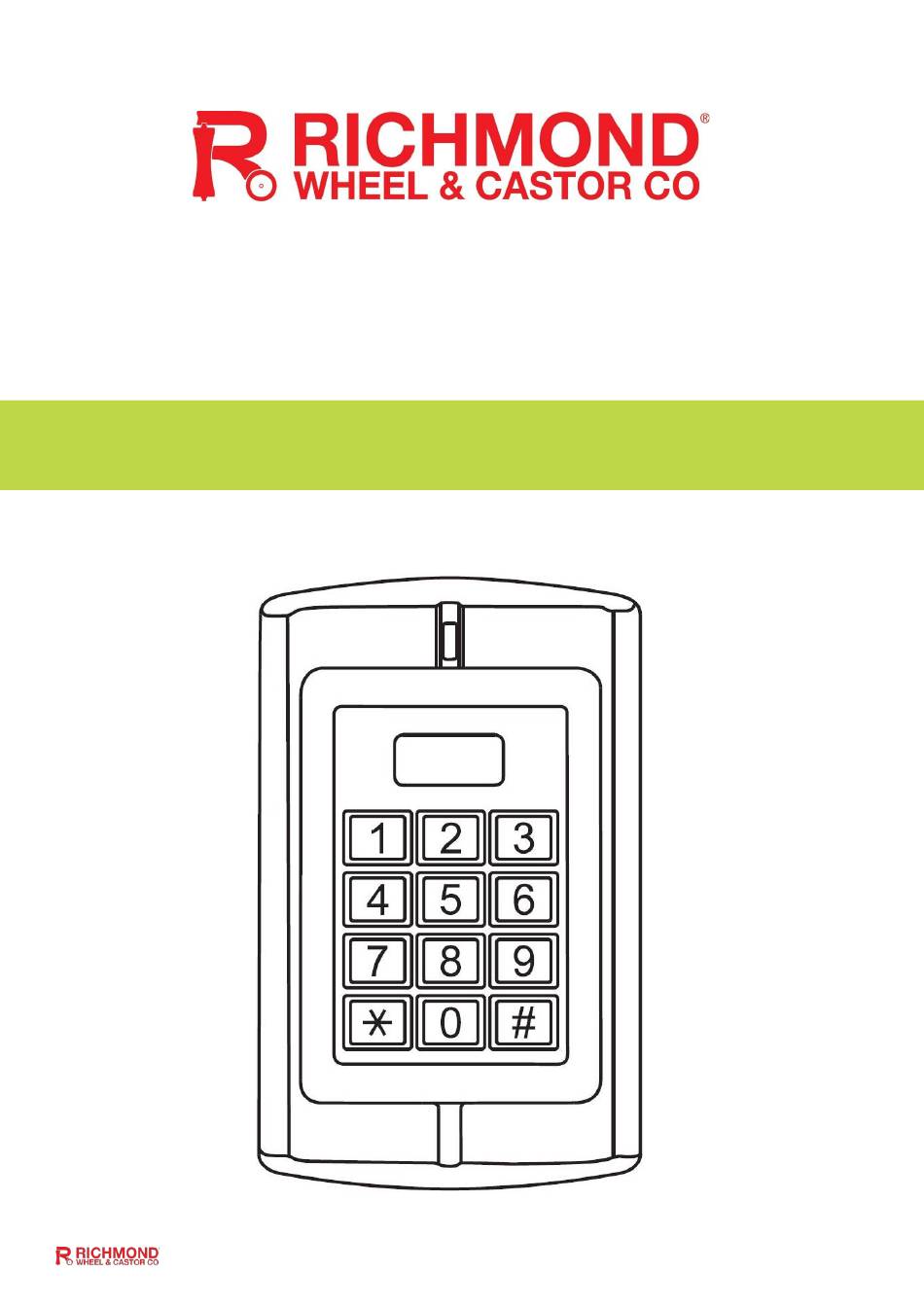

- Page 1 Metal Waterproof Access Keypad (GTR057) Suits the Following Richmond Gate Motors: GTR064, GTR207, GTR061, GTR156, GTR212, GTR099, GTR058 GTR057 Installation Manual: Rev 2...
-
Page 2: Packing List
Mode (suitable for access control) or Toggle Mode (suitable for arming/disarming alarms, switching lights, machines…etc) The GTR057 is an ideal choice for door access not 4. Specifications only for small shops and domestic households but also for commercial and industrial applications such... -
Page 3: Installation
To unlock the door for Zone 1 or Zone 2 Enter the PIN then press # To unlock the door for a PIN user Present the card To unlock the door for a card or fob user GTR057 Installation Manual: Rev 2... - Page 4 How to connect to the GTR156 & GTR212 control board: The below diagram shows how to connect the wires from the GTR057 wired keypad to the GTR156 & GTR212 Automatic Slide Gate Opener. GTR057 Installation Manual: Rev 2...
- Page 5 How to connect to the GTR061, GTR064 & GTR207 control board: The below diagram shows how to connect the wires from the GTR057 wired keypad to the GTR061, GTR064 & GTR207 Automatic Slide Gate Opener. GTR057 Installation Manual: Rev 2...
- Page 6 How to connect to the GTR099 control board: The below diagram shows how to connect the wires from the GTR057 wired keypad to the GTR099 Automatic Swing Gate Opener. GTR057 Installation Manual: Rev 2...
- Page 7 How to connect to the GTR058 control board: The below diagram shows how to connect the wires from the GTR057 wired keypad to the GTR058 Automatic Swing Gate Opener. GTR057 Installation Manual: Rev 2...
- Page 8 9. Relay Operation (Pulse mode and 11. Anti-Tamper Alarm Toggle mode) The GTR057 uses a LDR (light dependent resistor) as The two on board relays can operate in either Pulse an anti-tamper alarm. If the keypad is removed from Mode (suitable for access control) or Toggle Mode the cover then an alarm will operate.
- Page 9 Same PIN for both Zone 1 and Zone 2 is not valid, if so, the PIN will be only valid for Zone 1. Factory default setting: Card or PIN mode To set user for Zone 1 ( 3 1 2 # ) GTR057 Installation Manual: Rev 2...
- Page 10 To set Card user for Zone 2 is the same as Zone 1, with the exception of adding card users with auto- generated ID numbers (Method 1) as below. 5 Read Card # To add card users (Method 1) Auto-generated ID numbers Card can be added continuously without exiting programming mode. GTR057 Installation Manual: Rev 2...
- Page 11 To unlock the door (or change the relay state) Enter the PIN then press # For a PIN user Read card For a Card user Read card then enter the PIN For a Card and PIN user GTR057 Installation Manual: Rev 2...
- Page 12 10 minutes or the alarm will operate, depending on the option selected below 7 0 # Normal status: No keypad lockout or alarm (Factory default setting) 7 0 # Keypad Lockout 7 2 # Alarm output (Alarm output time: 1 minute) GTR057 Installation Manual: Rev 2...
- Page 13 PIN. When under forcing, use this card. Both doors are opened. In the meantime, the external alarm alarms. You can set a max of 100 anti-duress cards (The users of Zone 2). GTR057 Installation Manual: Rev 2...
