Summary of Contents for KIESELMANN 6155

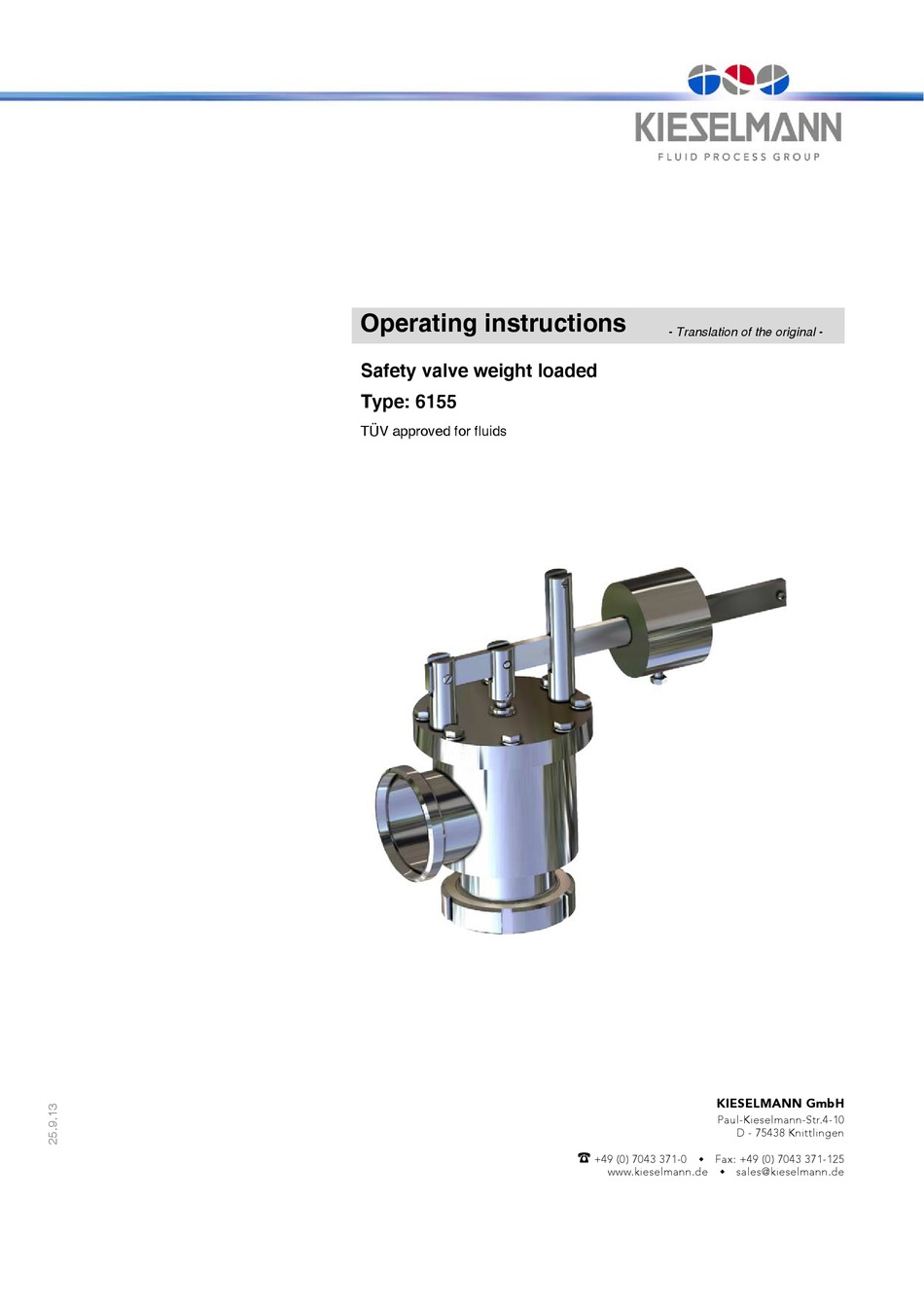

- Page 1 Operating instructions - Translation of the original - Safety valve weight loaded Type: 6155 TÜV approved for fluids KIESELMANN GmbH Paul-Kieselmann-Str.4-10 D - 75438 Knittlingen +49 (0) 7043 371-0Fax: +49 (0) 7043 371-125 www.kieselmann.desales@kieselmann.de...
-
Page 2: Table Of Contents
Technical data ..........................4 Pressure setting ..........................4 Setting ..........................4 Disassembly and assembly ......................5 Assembly ...........................5 - Performance test ......................5 10. Drawing ............................6 11. Opening and closing characteristics....................7 12. Blow off performance ........................7 13. Declaration of incorporation ......................8 Safety valve weight loaded Type: 6155... -
Page 3: General Safety Instructions
2. General safety instructions 2.1 Information for your safety We are pleased that you have decided for a high-class KIESELMANN product. With correct application and adequate maintenance, our products provide long time and reliable operation. Before installation and initiation, please carefully read this instruction manual and the security advices contained in it. -
Page 4: Safety Instructions
5.1 Installation instructions Generally, the valve should be installed vertically on connection "A". The valve should be installed so that no fluids remain in the housing. External dynamic effects caused by installation must be avoided. Safety valve weight loaded Type: 6155... -
Page 5: Maintenance
• In order to change the set pressure, the weight (5) on the lever (6) must be displaced until the nomi- nal set pressure is reached. • Lock the weight (5) with the screw (21). • Check performance data and document. Safety valve weight loaded Type: 6155... -
Page 6: Disassembly And Assembly
9.1 Assembly • Thoroughly clean and slightly lubricate mounting areas and running surfaces. • Assemble in reverse order. - Performance test • Test proper performance in the operating state according to the performance data. Safety valve weight loaded Type: 6155... -
Page 7: 10. Drawing
15. Shaft 16. Set screw 17. Set screw 18. Set screw 19. Disk 20. Screw 21. Screw 22. Grooved dowel pin 23. Disk 24. Disk Fig. 1 25. Connection piece Flange Clamp Liner/nut Fig. 2 Safety valve weight loaded Type: 6155... -
Page 8: 11. Opening And Closing Characteristics
> 3bar = 10% 3bar = 0,3bar min. operating overpressure Patm (Example: set pressure = 0,8 bar) Fig. 3 12. Blow off performance Type: 6155 DN80; Set pressure: 0,2 - 2,5 bar (Water 20°C) 90,00 Flow rate (m³/h) 80,00 70,00 60,00... -
Page 9: 13. Declaration Of Incorporation
Declaration of incorporation Translation of the original Manufacturer / authorised representative: KIESELMANN GmbH Paul-Kieselmann-Str. 4-10 75438 Knittlingen Germany Authorised representative, Achim Kauselmann for compiling technical documents: KIESELMANN GmbH Paul-Kieselmann-Str. 4-10 75438 Knittlingen Germany Product name Function pneum. Lift actuators Stroke movement pneum.
