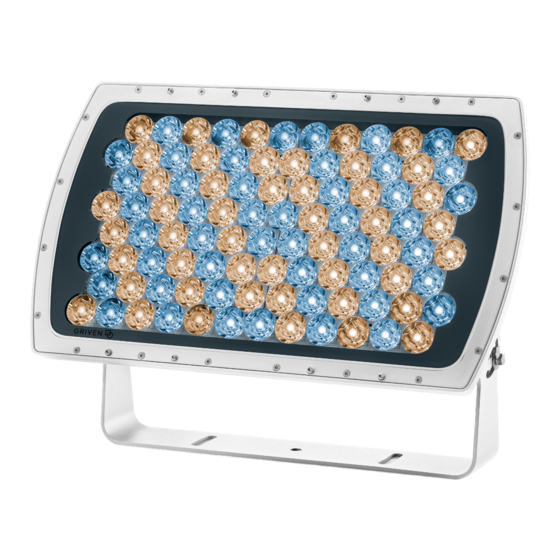

Emerald AL4900
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Inrush current / Corrente di spunto
Power / Potenza massima
Nominal current / Corrente nominale
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Optics/ Ottiche
Dimensions
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 1.00
Date: 16/01/2018
60 High output LEDS additive syntesis, RGBW-millions of colours, DW- from 2700°K to 6500°K
SPOT - NARROW - MEDIUM - WIDE - EXTRA WIDE - ELLIPTICAL - ELLIPTICAL WIDE

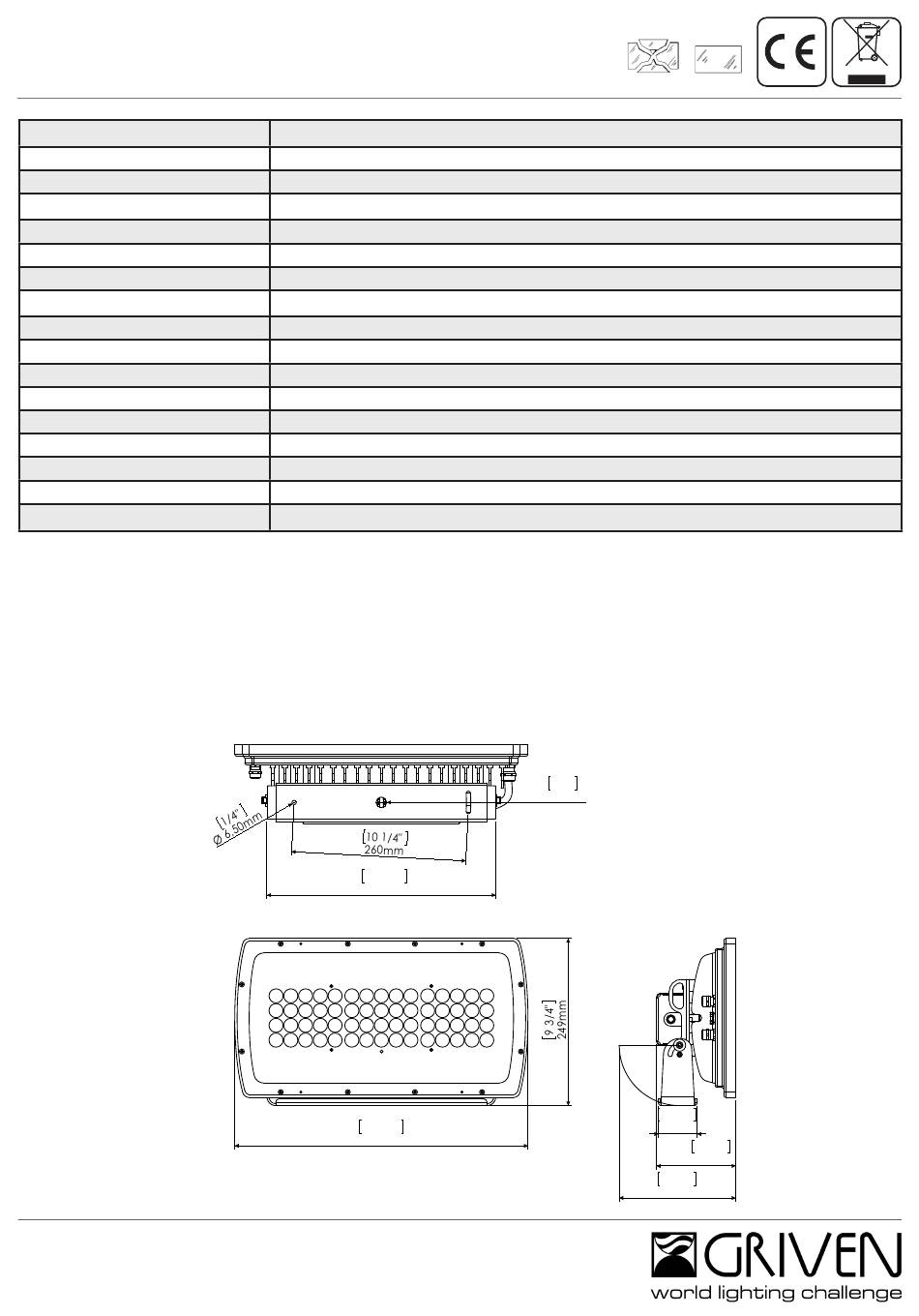

13 3/8"
341mm
17 1/4"
437mm
Tel. +39.0376.779483
© Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
6 Kg (13.2 Lbs)
Iron/Alluminum, scratch resistant paint
IK09
IP66
-40°C to 50°C ( -40°F to122°F)
100-277 VAC 50/60Hz
14,6A @230VAC cold start
95W ( Polar edition 150W)
0,4 A@230VAC ( Polar edition 0,67A)
Electronic
1,5 m.
USITT DMX-512
4-5-6 channels (RGBW) 2-3 channels (DW) 1 channel (W)
5/8"
Ø 16mm
.
I
2 1/4"
58mm
4 5/8"
118mm
6 7/8"
174mm
page 1 of 8
Advertisement
Related Manuals for Griven Emerald AL4900
Summary of Contents for Griven Emerald AL4900
- Page 1 1 of 8 174mm Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo Fax +39.0376.779682 without prior notice and such changes shall be effective Mantova - Italy E-mail: sales@griven.com...
- Page 2 Important notices / Avvertimenti importanti - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury. Questo prodotto deve essere installato secondo le normative locali, da personale specializzato.
-
Page 3: Dmx Input
Fixing WARNING ! fixing and connecting operations must mandatorily α=15° be carried out by qualified personnel only ! ATTENZIONE ! le operazioni di installazione e connessione devono obbligatoriamente essere eseguite solo da personale specializzato ! WARNING ! Ensure power supply is off before connecting or disconnecting fixtures ! ATTENZIONE ! Assicurarsi che l’alimentazione sia disattivata prima di collegare o scollegare i proiettori! -
Page 4: Dmx Mode
Configurations DMX Mode. Fixture 1 Fixture 2 Fixture 3 Fixture n eg: CH001 eg: CH006 eg: CH011 eg: CHxxx controller DMX cable DMX cable DMX cable DMX cable Line terminator 120Ω (not included) Master/Slave/Automatic Mode and fixed colour mode SLAVE 1 SLAVE 2 SLAVE n MASTER... - Page 5 Setup -The fixture must be configured only by using AL1321 IR remote control ( sold separately ) and from any DMX-RDM compati- ble controller. -Il proiettore deve essere configurato solo utilizzando AL1321 IR remote control ( venduto separatamente) oppure tramite una centralina DMX-RDM.
- Page 6 · On/Off identifi cation: questo comando è usato per rintracciare l’unità sulla quale si vuole operare ( il proiettore si metterà in evidenza accendendo tutti i LED a massima intensità). · Manufacturer: viene mostrato in nome del produttore ( Griven ). · Model description: viene mostrato il modello del proiettore.
- Page 7 Polar Edition features The POLAR Edition is fi tted with a thermal glass which is particularly useful for outdoor applications. In fact, by warming up, the glass melts ice and snow which might interfere with the projection. When the projector is on, if required by the weather conditions, the glass is automatically warmed up. Nella versione POLAR, il proiettore è...
- Page 8 Emerald- Rev. 1.00 page 8 of 8...
