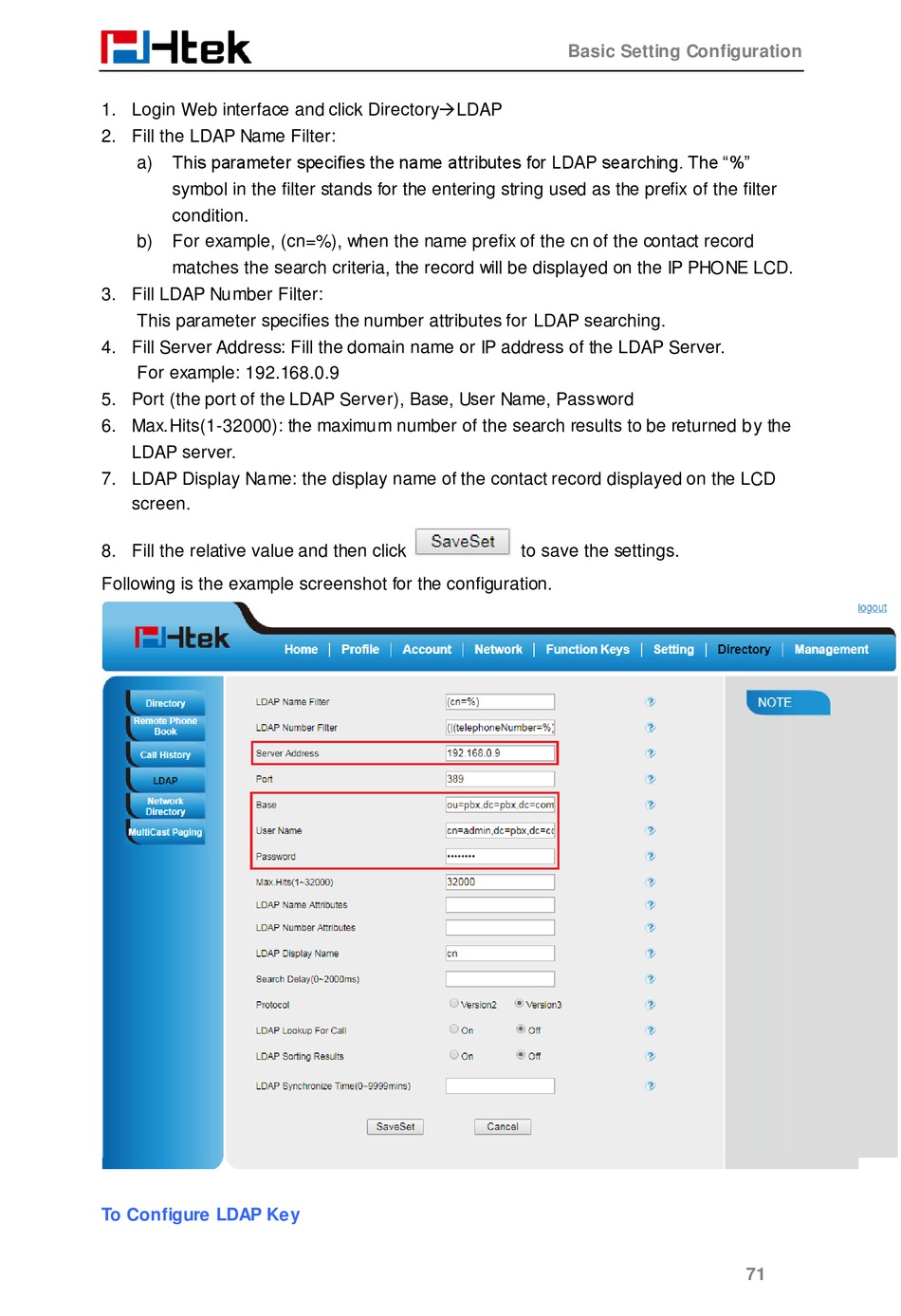

Htek UC924E User Manual page 71

1. Login Web interface and click DirectoryLDAP
2. Fill the LDAP Name Filter:
This parameter specifies the name attributes for LDAP searching. The "%"
a)
symbol in the filter stands for the entering string used as the prefix of the filter
condition.
b) For example, (cn=%), when the name prefix of the cn of the contact record
matches the search criteria, the record will be displayed on the IP PHONE LCD.
3. Fill LDAP Number Filter:
This parameter specifies the number attributes for LDAP searching.
4. Fill Server Address: Fill the domain name or IP address of the LDAP Server.
For example: 192.168.0.9
5. Port (the port of the LDAP Server), Base, User Name, Password
6. Max.Hits(1-32000): the maximum number of the search results to be returned b y the
LDAP server.
7. LDAP Display Name: the display name of the contact record displayed on the LCD
screen.
8. Fill the relative value and then click
Following is the example screenshot for the configuration.
To Configure LDAP Key
Basic Setting Configuration
to save the settings.
