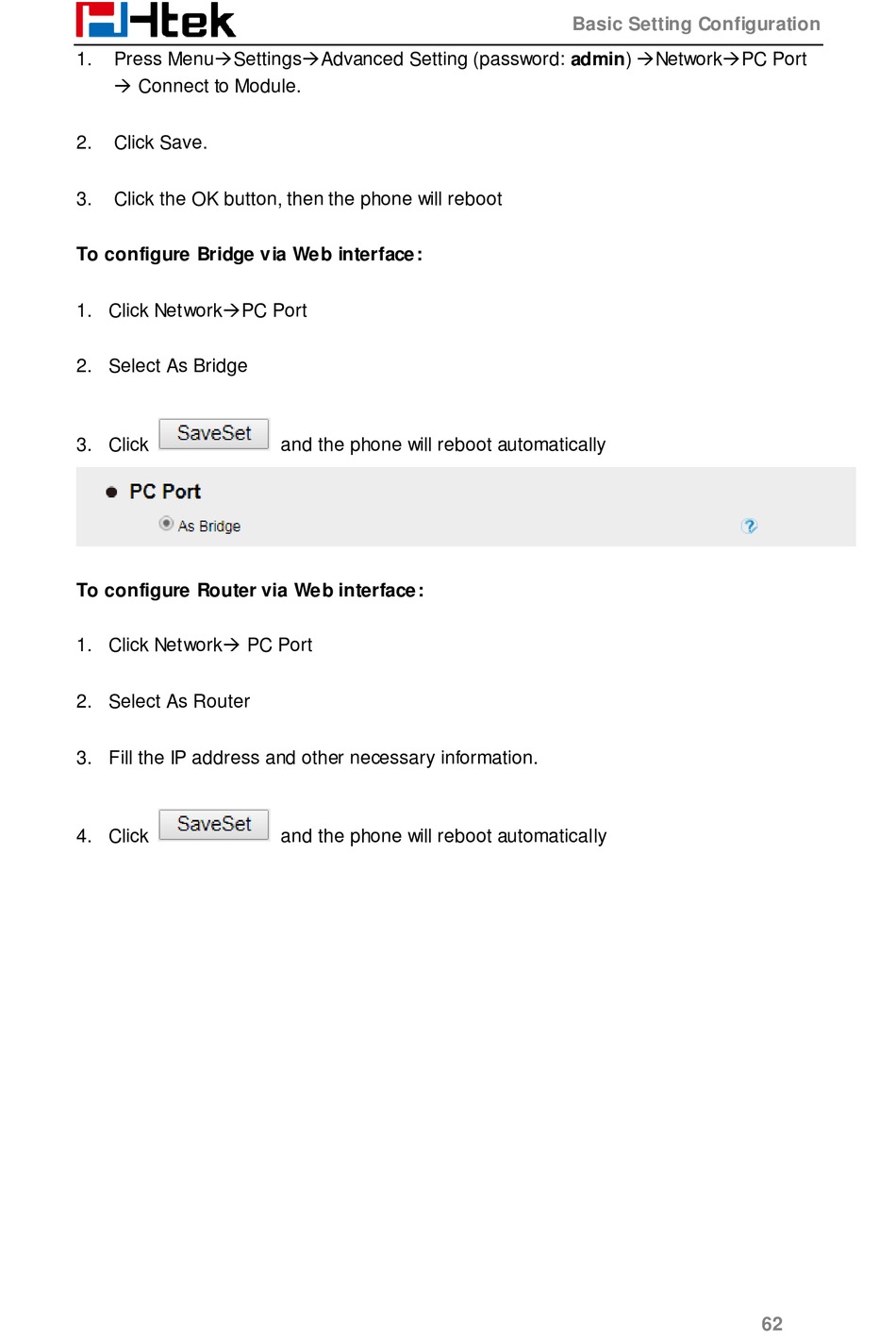

Htek UC924E User Manual page 62

Press MenuSettingsAdvanced Setting (password: admin) NetworkPC Port
1.
 Connect to Module.
2. Click Save.
3. Click the OK button, then the phone will reboot
To configure Bridge via Web interface :
1. Click NetworkPC Port
2. Select As Bridge
3. Click
To configure Router via Web interface :
1. Click Network PC Port
2. Select As Router
3. Fill the IP address and other necessary information.
4. Click
and the phone will reboot automatically
and the phone will reboot automatically
Basic Setting Configuration
62
