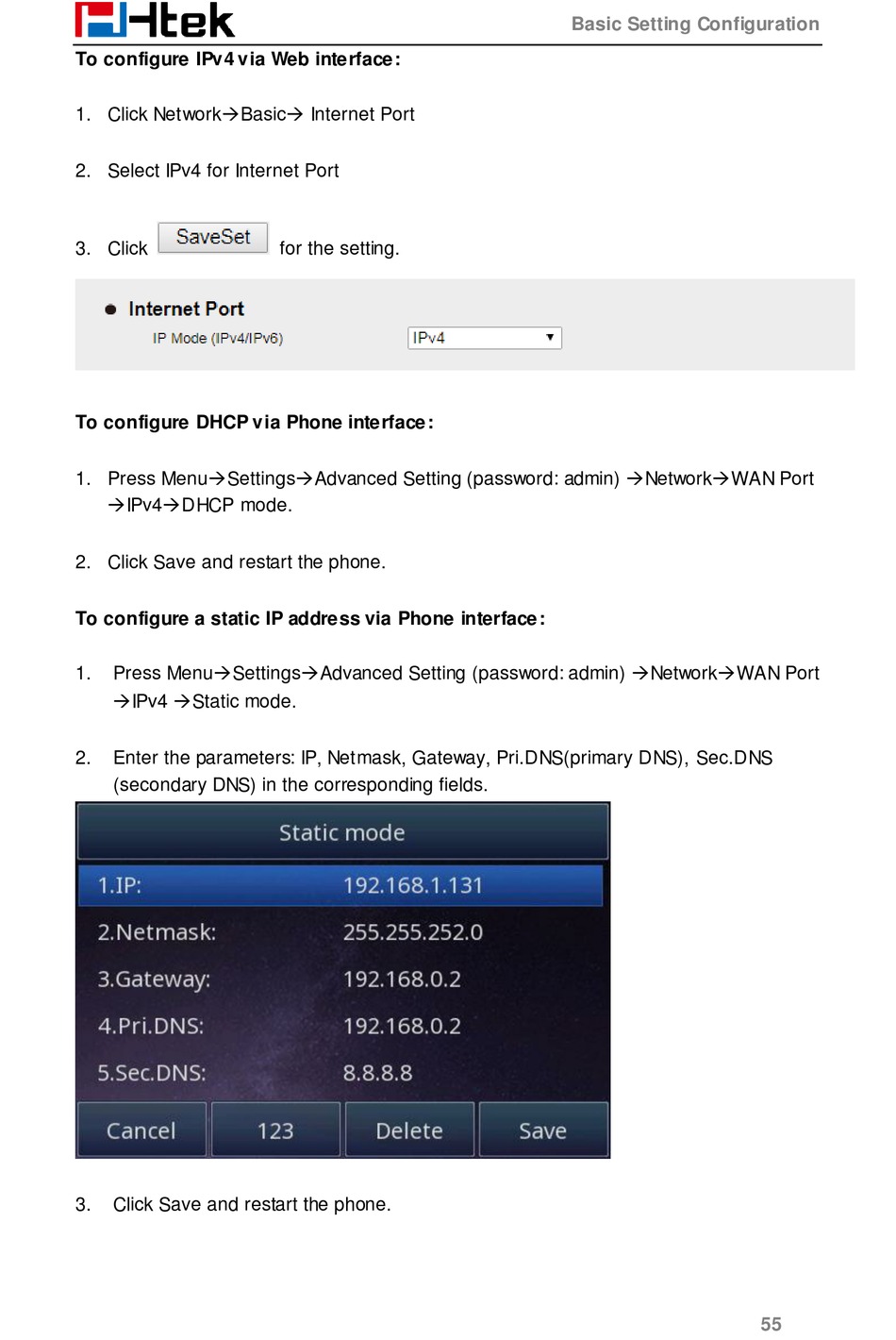

Htek UC924E User Manual page 55

To configure IPv4 via Web interface:
1. Click NetworkBasic Internet Port
2. Select IPv4 for Internet Port
3. Click
To configure DHCP via Phone interface :
1. Press MenuSettingsAdvanced Setting (password: admin) NetworkWAN Port
IPv4DHCP mode.
2. Click Save and restart the phone.
To configure a static IP address via Phone interface :
Press MenuSettingsAdvanced Setting (password: admin) NetworkWAN Port
1.
IPv4 Static mode.
2. Enter the parameters: IP, Netmask, Gateway, Pri.DNS(primary DNS), Sec.DNS
(secondary DNS) in the corresponding fields.
3. Click Save and restart the phone.
for the setting.
Basic Setting Configuration
55
