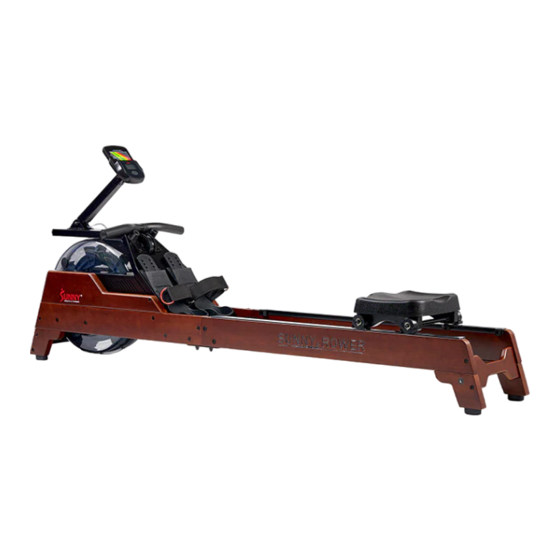

Vertical hydro wooden water rowing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VERTICAL HYDRO WOODEN WATER
ROWING MACHINE
SF-RW522075
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
support@sunnyhealthfitness.com
or 1-877-90SUNNY (877- 907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RW522075 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-RW522075

Summary of Contents for Sunny SF-RW522075

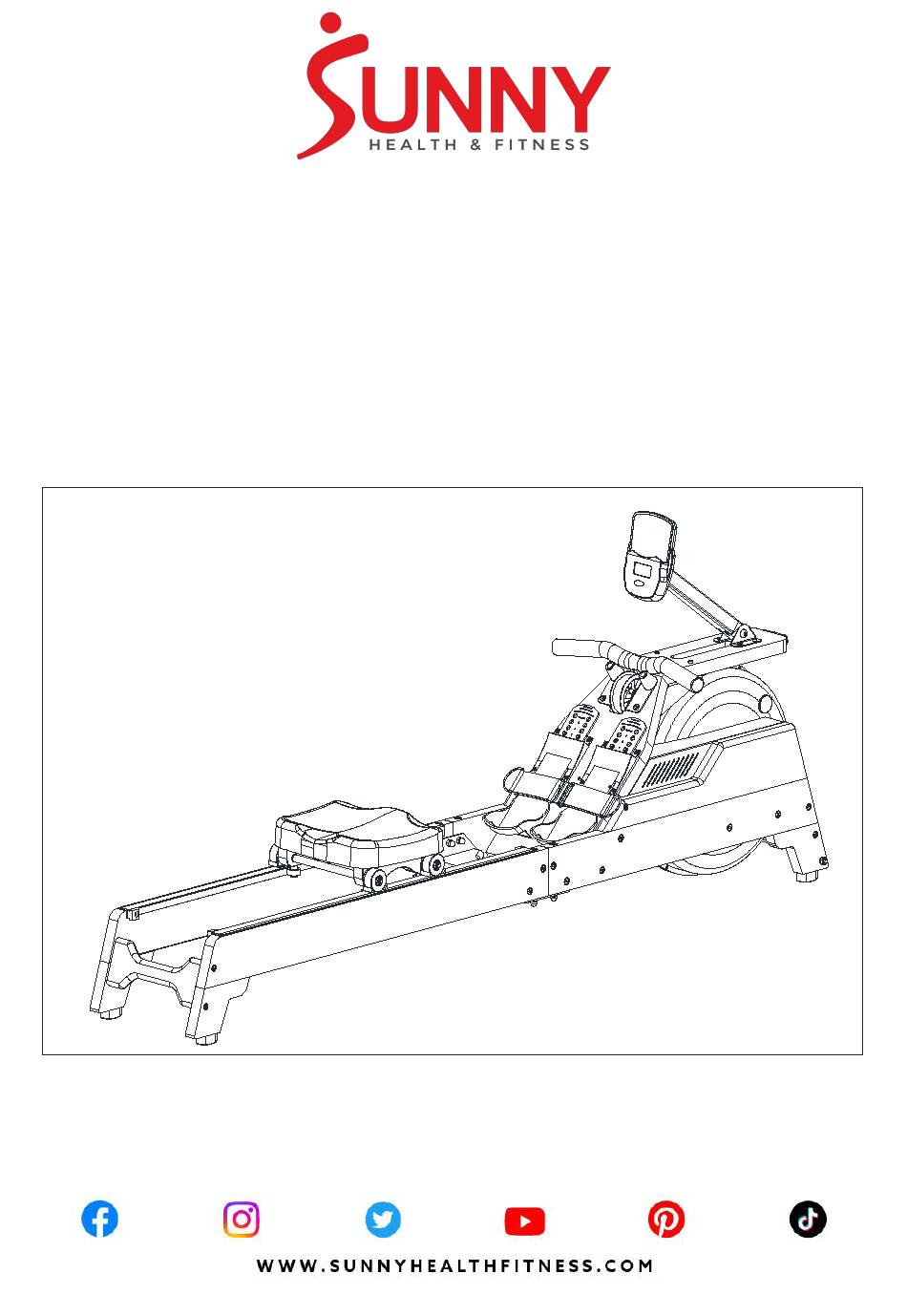

  • Page 1 VERTICAL HYDRO WOODEN WATER ROWING MACHINE SF-RW522075 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Hardware Package Step2 Step1 M8(2)-8PCS M8*110(1)-4PCS M8(2)-4PCS Step3 M8(1)-4PCS Step4 M6*50(3)-4PCS M6*50(4)-2PCS Tool-1PCS Description Spec. Qty. Description Spec. Qty. Main Frame Pumping Siphon Rear Right Rail User Manual Rear Left Rail Hardware Package Rail Connection Plate AAA Battery Rear Footplate Meter Assembly Rear Connecting Plate...

  • Page 4: Hardware Package

    HARDWARE PACKAGE SF-RW522075 HARDWARE PACKAGE STEP 2 STEP 1 #76 M8*35 4PCS #77 M8*40 4PCS #96 M8*110 4PCS #95 M8 4PCS #95 M8 4PCS STEP 3 STEP 4 #102 S13,S14,S17 1PC #99 S4 1PC #100 S5 1PC #74 M6*50 2PCS...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: #95 M8 4PCS #96 M8*110 4PCS #101 S6 #102 S13 S14 S17 1PC Attach Rear Left Rail (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 4: #74 M6*50 2PCS #99 S4 1PC Attach 2 Rear Footplates (No. 13) to the Rear Left Rail (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 7: 3 3 a Pass the Meter Wire 1 and Meter Wire 2 (No.

  • Page 8: How To Fill And Empty The Tank

    HOW TO FILL AND EMPTY THE TANK 1. Remove the Fill Plug (No. 44) from the Left Tank Cover (No. 35). 2. To fill the tank with water, refer to Fig. A. Insert the Pumping Siphon (No. 66) into the tank, then use the Pumping Siphon (No.

  • Page 9: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT 94-1 BATTERY INSTALLATION: 1. Take out 2 AAA batteries from the meter box. 2. Press down on the buckle of battery cover on the back of the Meter (No. 94), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 94). Pay attention to the battery + and –...
  • Page 10 ADJUSTMENTS GUIDE MOVING THE ROWER To move the rower, lift up the Rear Footplate (No.13) until the Transportation Wheels (No. 49) on the front touch the ground. With the Transportation Wheels (No. 49) on the ground, you can transport the rower to the desired location with ease. Be sure to keep all body parts clear of the seats rollers when moving the rower.
  • Page 11 EXERCISE METER T IM E C O U N T D IS T A N C E C A L O R IE S T /5 0 0 M S P M T O T A L C O U N T ■KEY FUNCTIONS：...
  • Page 12 APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3.

  • Page 13: Exploded Diagram

    EXPLODED DIAGRAM 1 76 97 7 76 96 30 48L 48R 63 85 82 52 53 52 88 56 86 96 95 88 98 46 98 81 86 29 1 105 68 89 104 105 17 94 30 95 86 76...
  • Page 14 EXPLODED DIAGRAM 2 96 30 69 57 95 90 60 30 96 26 95 57 90 59...

  • Page 15: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Seal Ring Holder Ø60*Ø45*32 Meter Support Plate 320*33*38 Fill Plug Ø31.3*10.4 Up Plate 370*130*27 Pedal Plate 495*260*27 TC Framework Oil Seal NBR/Ø20*Ø40*8 Left Side Plate 603*120*27 Small Webbing Pulley POM/Ø41*42.5*Ø38.5*37 Right Side Plate 603*120*27 47L/R Foot Pedal...
  • Page 16 PARTS LIST Description Spec. Qty. Description Spec. Qty. Nylon Lock Nut M3*H3.8*S6 Washer D10*Ø16*1 Nylon Lock Nut M10*1.25*H12*S17 Allen Wrench 25*60*4 S4 Cap Nut M10*H18*S17 Allen Wrench 30*80*5 S5 Washer D8*Ø16*1.5 Allen Wrench 30*80*6 S6 Washer D6*Ø13*1 Spanner 13 14 17 Washer D6*Ø16*1 Water Purification...
