Summary of Contents for Sunny SF-RW520050

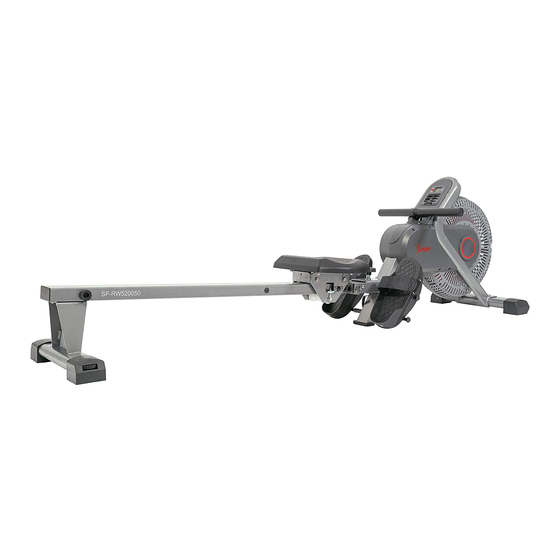

- Page 1 AIR RESISTANCE ROWING MACHINE SF-RW520050 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 1 EXPLODED DIAGRAM 2... -
Page 4: Hardware Package
HARDWARE PACKAGE... -
Page 5: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Bolt M6*15 Sliding Rail Washer Φ24*Φ12.5*2 Front Stabilizer Adjustable Knob M12*30 Rear Stabilizer Left End Cap Handlebar Φ28*1.5 Right End Cap Seat End Cap Φ28*15 Washer Φ8*Φ16*1.5 Handrail Foam Grip Φ27*Φ33*210 Spring Washer Φ8... - Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Remove 2 Bolts (No. 9) and 2 Washers (No. 7) from the Front Stabilizer (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: Attach the Seat (No. 6) to the Sliding Rail (No. 2). The Limit Shaft (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Attach the Sliding Rail (No. 2) to the Main Frame (No. 1) by inserting Bolt (No.
- Page 9 ADJUSTMENTS & USAGE GUIDE CAUTION! Moving parts, such as the seat, can cut and crush. Keep hands clear of the sliding rail during use! PEDAL STRAP ADJUSTMENT The Pedal Straps (No. 36L/R) are adjustable and can be personalized to fit the user’s foot size.
-
Page 10: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION: The Computer (No. 57) uses 1 AAA battery. Remove the Computer (No. 57) from the Main Frame (No. 1). Then put 1 battery into battery compartment. Make sure the (+) and (-) poles of the battery is in the correct position. - Page 11 FOLDING GUIDE CAUTION! The Seat (No. 6) will glide down when folding the Sliding Rail (No. Use caution when you vertically fold the Sliding Rail (No. 2) as your head may touch Rear Stabilizer (No. 4). When not in use, you can save space by folding the Sliding Rail (No. 2). Remove the Adjustable Knob (No.
-
Page 12: Exercise Computer
EXERCISE COMPUTER SPECIFICATIONS: TIME-----------------------------------------------------00:00 - 99:59 MIN: SEC COUNT------------------------------------------------------------0 - 9999 COUNT CALORIE-----------------------------------------------------------0 - 999.9 KCAL REPS/MIN--------------------------------------------------0–999 COUNTS/MIN KEY FUNCTION: MODE/SELECT: Press to select the function. Press and hold for 4 seconds to reset all function. OPERATION PROCEDURES: AUTO ON/OFF: The computer will turn off if there is no signal for 4 minutes.
