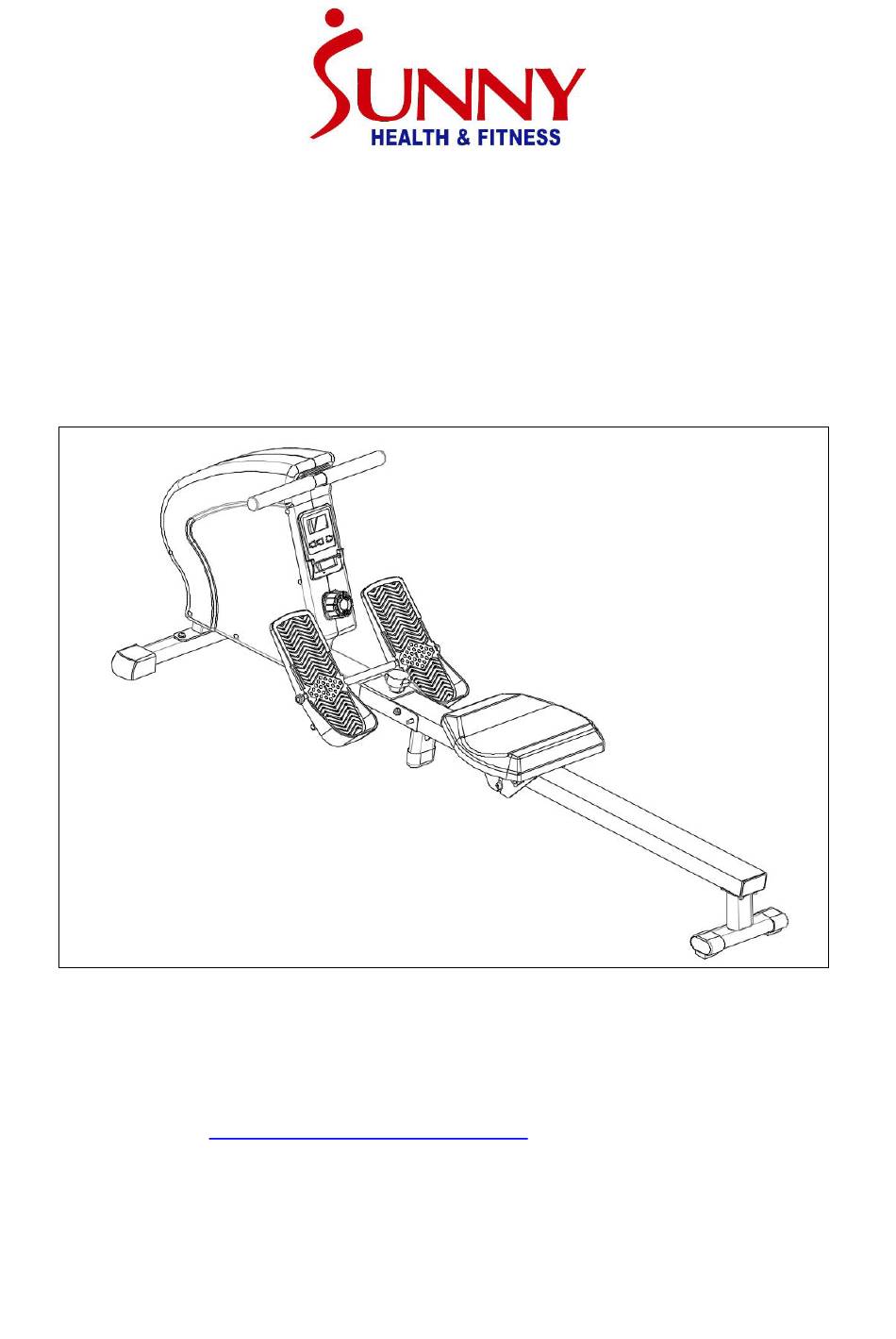

- Page 1 SPM MAGNETIC ROWING MACHINE SF-RW5801 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM HARDWARE PACKAGE #1 M8*15*S6 2PCS #70 Φ16*94*M16 1PC #58 M12*S19 2PCS #74 S6 1PC #64 M8*102 1PC #37 M8*15*S6 4PCS #66 M8 1PC #75 S10*13*14*17*19 2PCS #61 M6*10 1PC #67 Φ8*100*105 1PC #2 d8*Φ16*1.5 8PCS... -
Page 4: Packing List
PACKING LIST Description Spec. QTY. Description Spec. QTY. Screw M8*15*S6 Bearing 6000-2RS d8*Φ16*1.5 M6*40*Φ10*2.5 Washer Adjusting Screw Front Stabilizer Bolt M8*125*20*S6 4L/R End Cap Handlebar Seat 106*40*31 Screw ST4.2*20 Screw M8*15*S6 Inertial Wheel Mesh Belt Pulley Mesh Belt Pulley Screw M5*15 Left Seat Φ25*1.5*420... - Page 5 Bolt M6*20 Connecting Rod Mesh Belt Axle Φ8*100*105 Pull Pin End cap Rubber Buffer Allen Wrench Seat Spanner S=10*13*14*17*19 Φ16*94*M16 Knob Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓...
-
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS STEP 1: Attach Front Stabilizer (No. 3) to Main Frame (No. 49) using 2 Screws (No. 1) and 2 Washers (No. 2). Tighten and secure with Allen Wrench (No. 74). STEP 2: Attach Bolt (No. 59) into the upper hole of Main Frame (No. - Page 7 STEP 3: Insert the Seat (No. 69) into the Sliding Rail (No. 17). Attach the Sliding Rail (No. 17) onto the Rear Support (No. 14) using 4 Screws (No. 37), 4 Washers (No. 2). Tighten and secure with Allen Wrench (No. 74). STEP 4: Connect Trunk Wire 1 (No.
- Page 8 STEP 5: Take out 2 AAA batteries from the plastic bag with the manual. Push Computer (No. 48) upward, then remove Computer (No. 48) from Main Frame (No. 49). Disconnect Trunk Wire 1 (No. 51) and the wire of Computer (No. 48). Install the 2 AAA batteries into the back of Computer (No.
-
Page 9: Adjustment Guide
ADJUSTMENT GUIDE CAUTION! Moving parts, such as the seat, can crush and cut. Keep hands clear of the sliding rail during use! ADJUSTING THE BALANCE Adjust the End Caps (No. 15) on the rear stabilizer of the machine if the machine is unbalanced during use. ADJUSTING THE RESISTANCE Rotate the Tension Control Knob (No. - Page 10 FOLDING THE MACHINE Figure A CAUTION! Move with caution when you vertically fold the Sliding Rail (No. 17) as your head may touch the Rear Support (No. 14). When not in use, you can save space by folding the Sliding Rail (No.
-
Page 11: Function Key
EXERCISE METER Our computerized display console on the Sunny Magnetic Rowing Machine allows the user to tailor a personalized workout by monitoring their progress. During a workout, the display console will alternately and repeatedly display your Time, Count, Calories Burned, Total Count, Distance and Scan (all of the above).
