Summary of Contents for TPC LED 39N

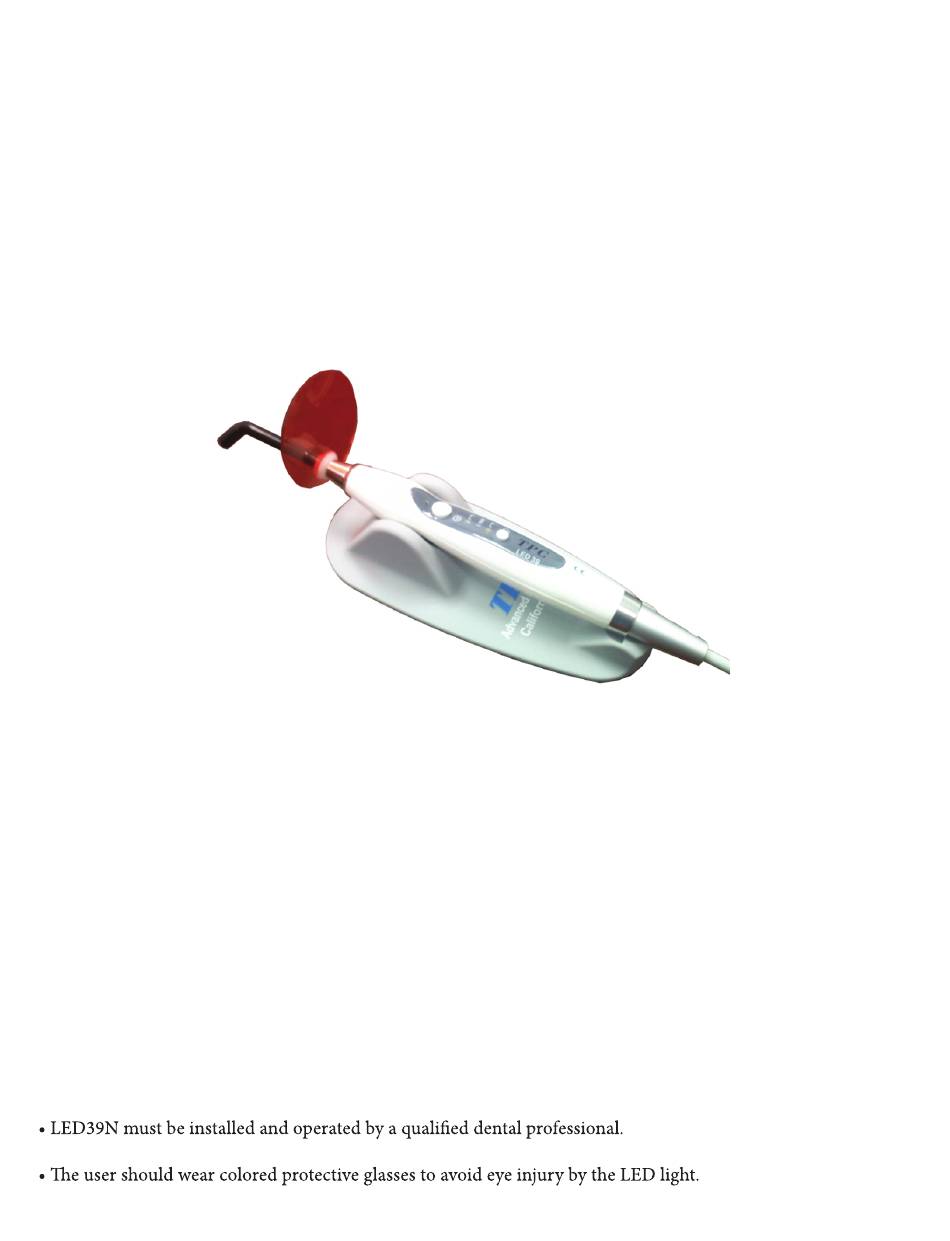

- Page 1 User Manual dentalgerate.com LED 39N Corded LED Curing Light • All instructions in this USER’S MANUAL must be completely read before installation or operation. REV. 1-1-13...
- Page 2 Table Of Contents 1. INTRODUCTION 1.1 TECHNICAL INFORMATION 2. FEATURES 3. ACCESSORIES dentalgerate.com 4. INSTALLATION 5. OPERATION 6. MAINTENANCE 7. TROUBLESHOOTING 8. WARRANTY...
- Page 3 1. INTRODUCTION Thank you for purchasing the LED 39N LED curing light. The LED 39N is a dental curing light, which use the latest LED technology to polymerize composite resin. Caution Attention: Important information is being presented. Refer to the Operator’s Manual for more informa tion.
- Page 4 PULSE : 0.5 second intermittent output. RAMP : Soft start. 4. Timer The Led 39N has a fixed timer. The unit will cure for a total of 20 seconds. At 20 seconds the light will automatically stop the curing process. 5. Sleeping Mode If the LED 39N is unused for a period of 3 minuts the curing light will convert to “Sleep Mode”...
- Page 5 4. Installation Step 1: Insert the light guide into the curing light handpiece. Step 2: Place the light shield over the light guide. Secure the shield over the light guide chuck. dentalgerate.com Step 3: Connect the AC power Adaptor to an outlet.
- Page 6 4. Operation A. Set Curing Program Press the function switch to select the desired curing mode. Function Button FAST PULSE RAMP B. Start to Operate Press curing switch to start curing program. To interrupt a program press curing switch again. When the pro- gram finished the curing light handpiece will turn off the light immediately.
- Page 7 6. MAINTENANCE 1. Be sure there is no resin or material sticking to the surface of the light guide. 2. If materials are sticking on the light guide immediately clean it with soft cloth. Keep light guide clean for better light intensity and curing performance.
- Page 8 All of our products sold are guaranteed to be free from defects in workmanship and materials for a 1 year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. During the warranty period.
