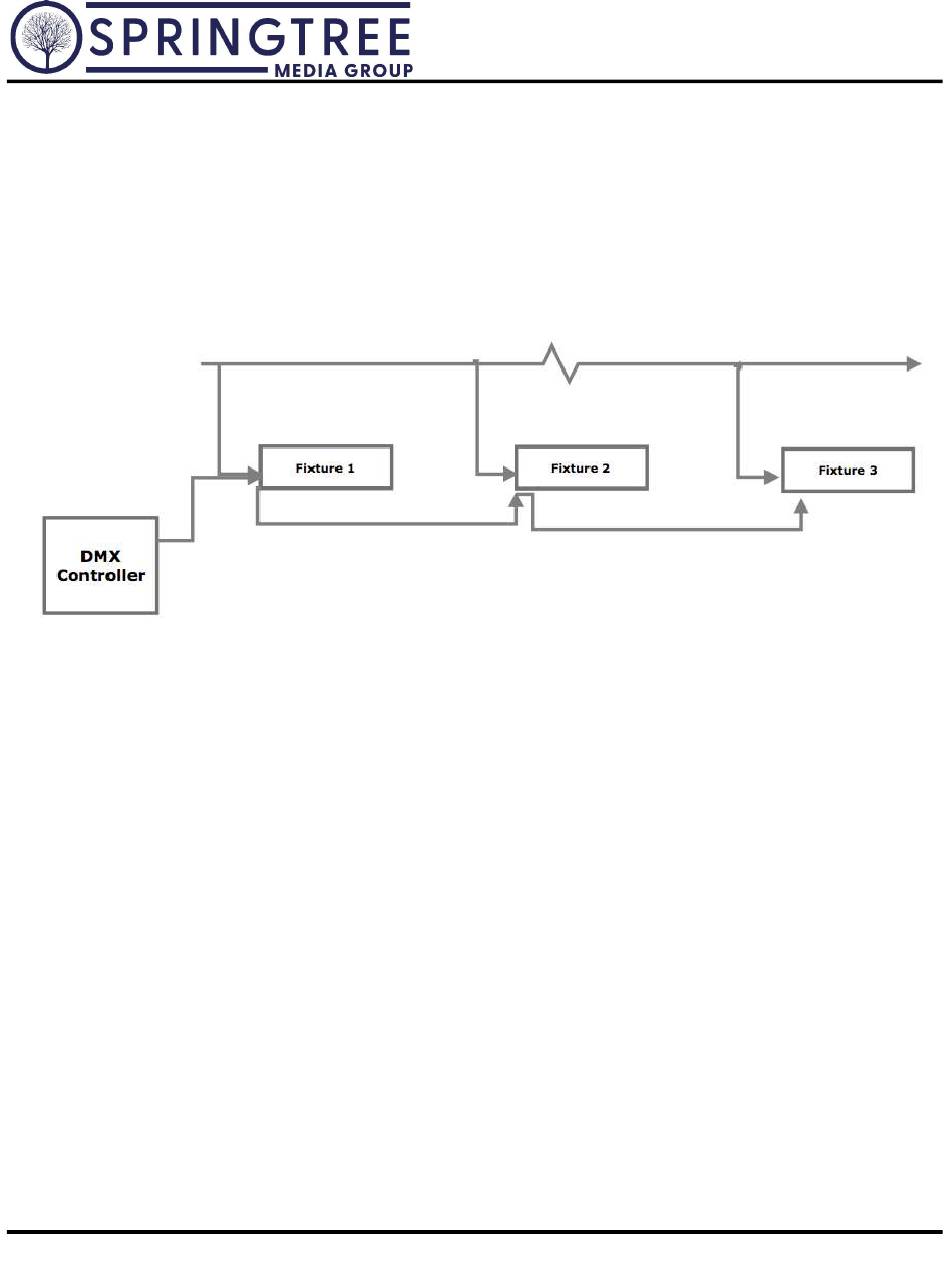

DMX linking

An LED Ellipsoidal can be connected to a DMX controller by a 3-pin DMX cable, allowing
total control over one or more lights. To do this, connect a DMX cable from the DMX-input (labeled
DMX IN) on your lighting unit to the DMX-output of the controller. Connect a second light via its
DMX-input to the fi rst unit's DMX-output (labeled DMX OUT) to control and synchronize multiple
lighting units at once.
Power IN
DMX IN

Operation

Menu Buttons

There are buttons on the back of this unit: MENU, UP, DOWN and ENTER. Normally the LED
will display the current DMX address code of the fi xture. Press MENU to choose the desired func-
tion and press ENTER to confi rm.

Operating modes

This light can operate in 2 modes:
• DMX control mode- this function will allow you to control each individual unit with a standard
DMX 512 controller
• Stand Alone- each ellipsoidal will operate in a manual stand alone mode. No DMX wire nec-
essary.
(615) 599-1505 www.springtree.net
DMX OUT DMX OUT
DMX IN DMX IN
