Summary of Contents for Springtree SilentPar-1210

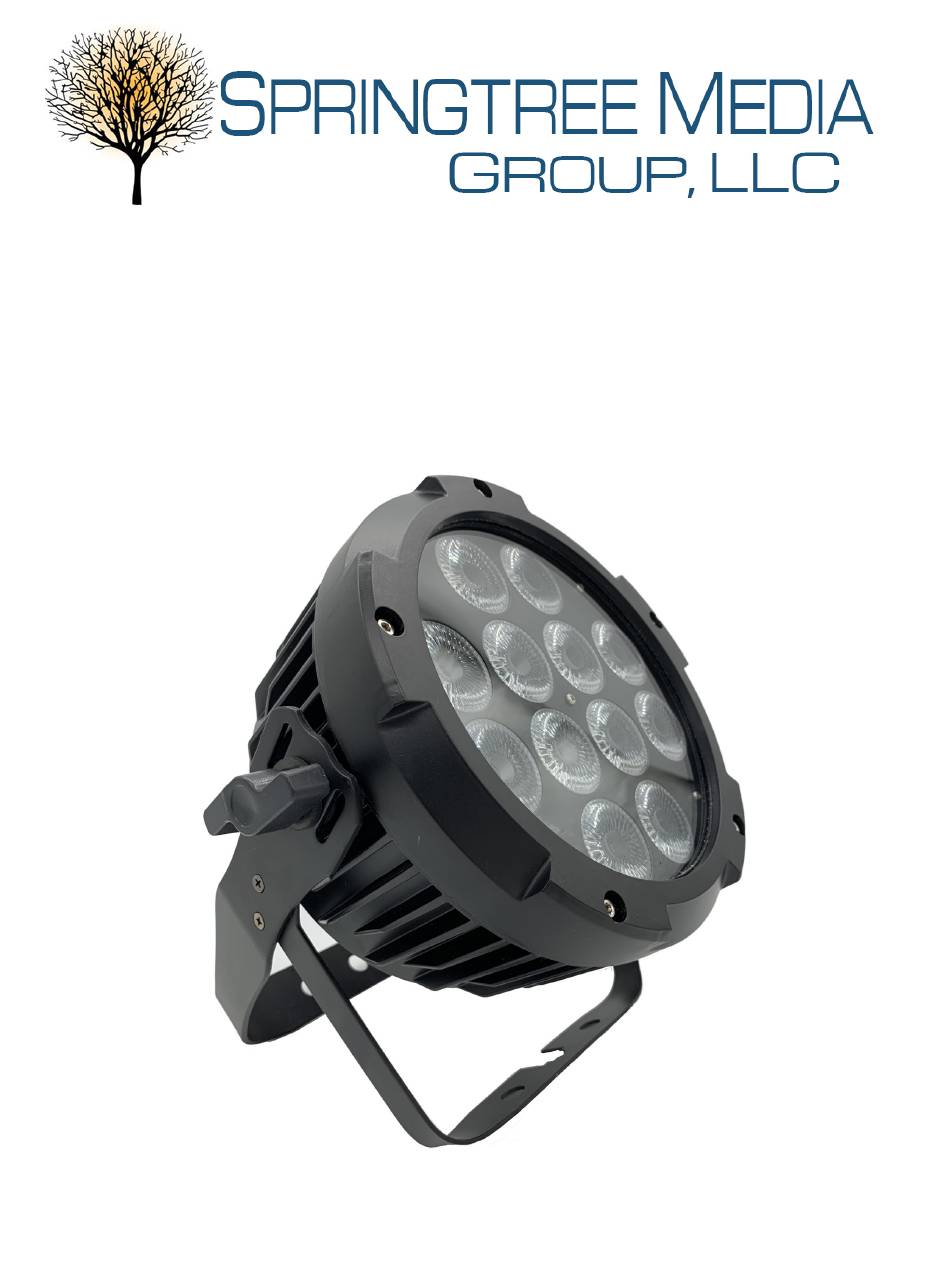

  • Page 1 Springtree SilentPar-1210 RGBWA USER MANUAL AND INSTALLATION GUIDE...
  • Page 2: Table Of Contents

    Safety precautions........................3 2. Product Information Description..........................4 Features............................4 3. Installation Power supply..........................5 Mounting............................5 Rigging............................5 DMX linking..........................6 4. Operation Touch buttons...........................6 Operating modes........................6 Display menu...........................7 DMX Traits..........................7,8 5. Maintenance Cleaning your Slimpar......................9 6. Technical Specifications Dimensions..........................9 Troubleshooting........................10 Contact us..........................10 (615) 599-1505 www.springtree.net...
  • Page 3: Before You Begin

    1. one SilentPar 1210 RGBWA 2. one Powercon power cord *If any of these items is damaged or missing, please contact Springtree Media Group immediately! Safety precautions • To reduce the risk of electrical shock or fire, do not expose this unit to moisture.
  • Page 4: Product Information

    User Color (Red, Green, Blue, White, Amber) • Three DMX Modes: 5 Channel Mode 6 Channel Mode 9 Channel Mode • Linear Dimming 0-100% • DMX-512 protocol • IP20 Locking 3-Pin XLR Connections In/Out • Multiple Unit Power Linking (615) 599-1505 www.springtree.net...
  • Page 5: Installation

    The bracket knobs allow for directional adjustment when aiming the fixture to the desired angle. Only loosen or tighten the bracket knobs using your bare hands. Using tools could damage the knobs. The double bracket yoke/mounting brackets/feet also serve as floor support(s) or surface mounting. (615) 599-1505 www.springtree.net...
  • Page 6: Dmx Linking

    DMX control mode- this function will allow you to control each individual unit with a standard DMX 512 controller • User Color mode- the user can set a static color using the individual dimmers, Red, Green, Blue, White and Amber. (615) 599-1505 www.springtree.net...
  • Page 7: Display Menu

    0-100% 0~255 dimmer 0-100% 0~255 dimmer 0-100% 0~255 dimmer 0-100% 0~255 Y(A) dimmer 0-100% 0~255 9CH Mode dimmer dimmer 0-100% 0~255 dimmer 0-100% 0~255 (615) 599-1505 www.springtree.net dimmer 0-100% 0~255 dimmer 0-100% 0~255 dimmer 0-100% 0~255 Y(A) dimmer 0-100% 0~255...
  • Page 8 0-100% 0~255 Strobe Speed(slow->fast) 0-100% 0~255 No function 0-19 20-29 green 30-39 Blue 40-49 white 50-59 Amber(Y) 60-69 Red+Green 70-79 Red+Blue 80-89 Green+Blue 90-99 gradient 100-149 variable 150-199 jump 200-229 Sound 230-255 Mode Speed 0-100% 0~255 (615) 599-1505 www.springtree.net...
  • Page 9: Maintenance

    286mm x 125mm x 290mm/ IP Rating: IP20 11.26” x 4.92” x 11.42” Power Draw: 120W Colors: RGBWA Color Mixing Power Linking: 15 Fixtures Max @ 120V DMX Modes: 5, 6 and 9 channel 30 Fixtures Max @ 240V (615) 599-1505 www.springtree.net...
  • Page 10: Troubleshooting

    1. Quiet or high pitched sounds will not activate the unit. If problems are not resolved, contact your dealer for service. Contact us Springtree Media Group would like to thank you for choosing our company for your lighting needs! If you have any questions or concerns, please contact us. Office hours:...
