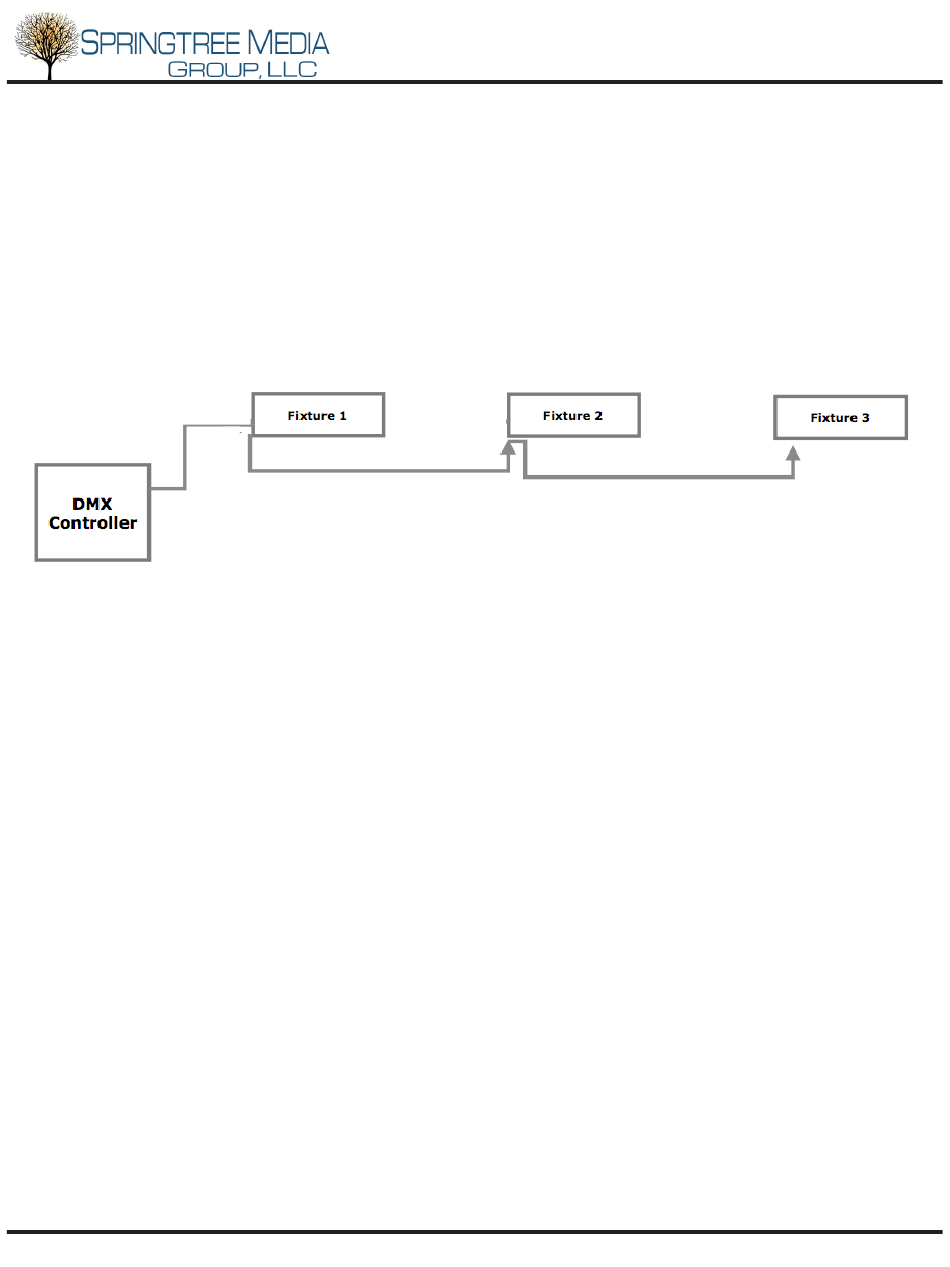

DMX linking

An LED Ellipsoidal can be connected to a DMX controller by a 3-pin DMX cable, allowing
total control over one or more lights. To do this, connect a DMX cable from the DMX-input (labeled
DMX IN) on your lighting unit to the DMX-output of the controller. Connect a second light via its
DMX-input to the first unit's DMX-output (labeled DMX OUT) to control and synchronize multiple
lighting units at once.

Operation

Touch buttons

There are four touch buttons on the back of this unit: MENU, UP, DOWN and ENTER. Normally
the LED will display the current DMX address code of the fixture. Press MENU to choose the de-
sired function and press ENTER to confirm.

Operating modes

This light can operate in 3 modes:
• DMX control mode- this function will allow you to control each individual unit with a standard
DMX 512 controller
Master-slave mode- one unit will work as the master and other units in the chain will work in
•
synchronization towards the master.
Stand Alone- each ellipsoidal will operate in a manual stand alone mode. No DMX wire nec-
•
essary.
(615) 599-1505
DMX IN
DMX OUT
www.springtree.net
DMX OUT
DMX IN DMX IN
