Enterasys Matrix X Router Installation Manual page 30

Installing the DC Power Supply
5. Hold the power supply by placing one hand on the handle located on the front panel
and using your other hand to support the power supply.
6. Position the power supply with the flange and captive screw pointing up (or to the
right for the Enterasys Matrix™ X4‐C chassis) and align with the slot opening.
7. Insert the power supply into the opening and carefully slide the module until it
connects to the backplane, as shown in Figure
with the face of the Matrix X chassis. If significant resistance is encountered before the
power supply is seated, remove and reinsert it. Do not force the module into place.

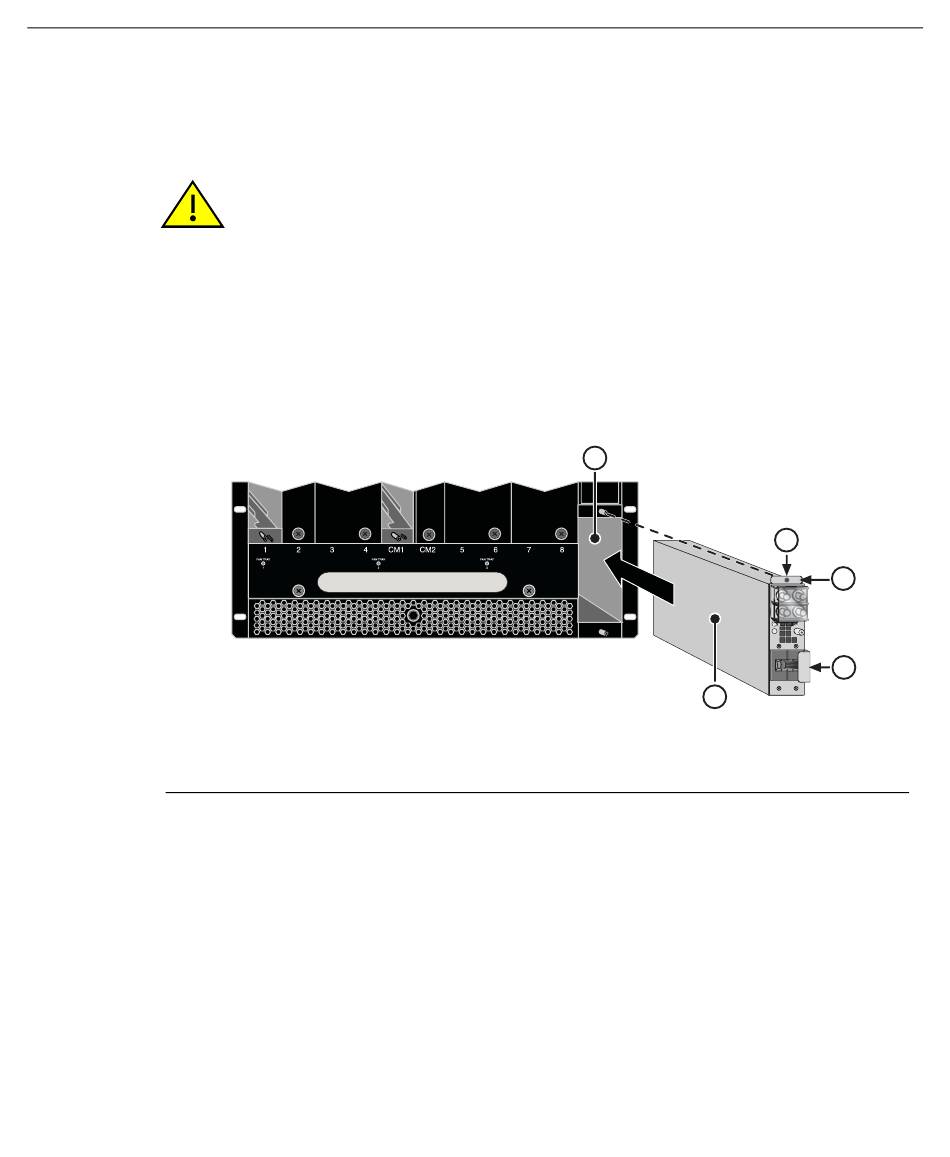

Figure 1-4
1 Power supply
2 Power supply handle
8. Secure the power supply to the chassis by tightening the captive screw.
9. If you are installing additional power supplies, remove the coverplates
slots by loosening their captive screws, as shown in Figure
through 8 to insert them into the chassis.
Keep the coverplates in a safe location in the event you need to remove the power
supply and replace the coverplate.
1-12 DC Power Supply Installation
Caution: Forcing a misaligned power supply into place can damage the power supply or
chassis backplane.
Precaución: Colocar de manera forzada una fuente de poder o no colocarla bien alineada
podría dañarla y/o maltratar el panel posterior del chasis.
Installing Power Supply Module
1‐4. The module should be nearly flush
3
3 Power supply slot 1
4 Captive screw
4
5
2
1
5 Power supply flange
from their
1‐5, and repeat steps 4
