Overview of the DC Power Supply
Overview of the DC Power Supply
The DC power supply (X‐DC) can be used in the Enterasys Matrix™ X16‐C, X8‐C, and
X4‐C chassis in place of the standard AC power supplies (X‐AC). The DC power supply
connects a ‐48/‐60 VDC battery voltage to the backplane of the Enterasys Matrix™ X
chassis. Each power supply provides a maximum of 1500 Watts of power. The DC power
supply also provides a +5 VDC auxiliary output.
Figure 1‐1 and Figure
Figure 1-1
1 Circuit breaker
2 Power In and Power Out LEDs 5 Positive terminal studs
3 Mounting flange and fastener
1-2 DC Power Supply Installation
1‐2 show the front and back views of this power supply.

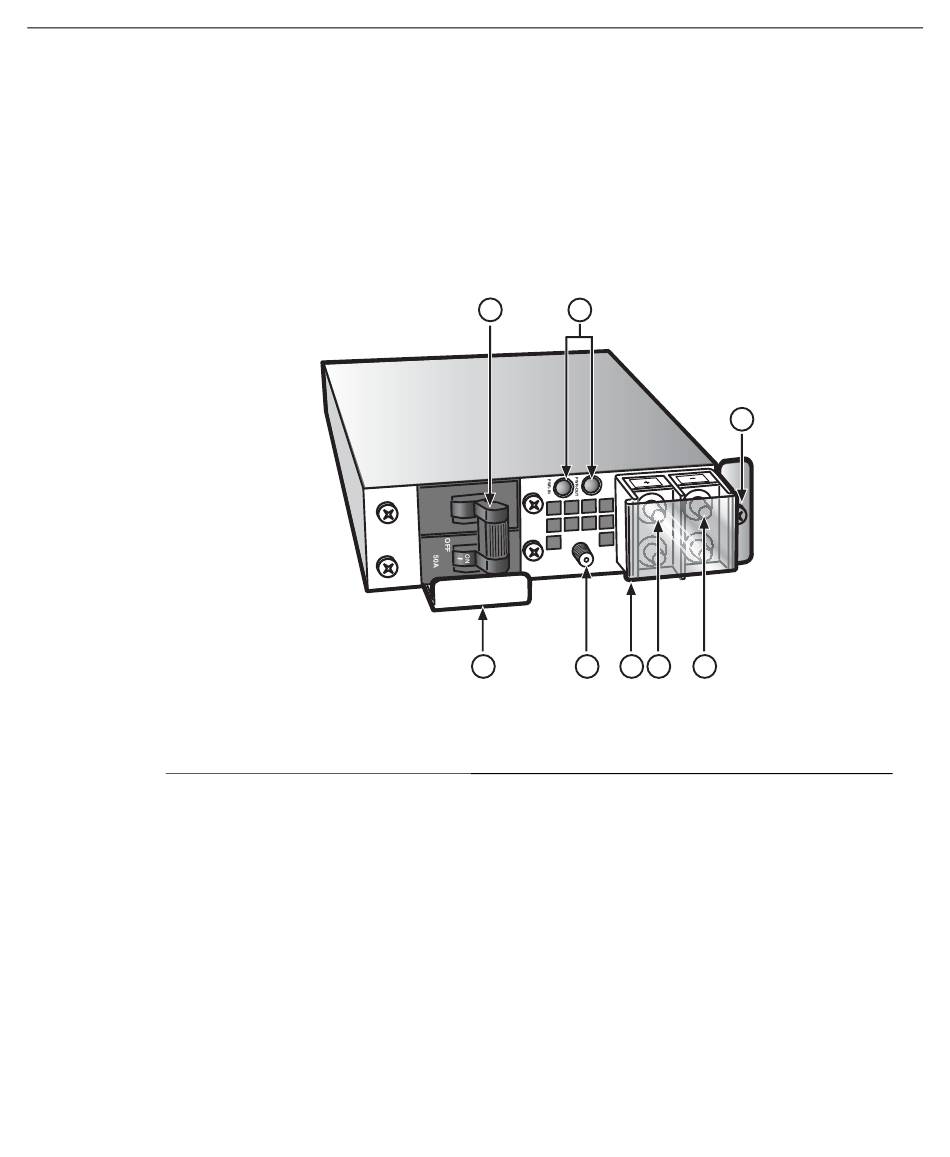

Front View of the DC Power Supply
4 Negative terminal studs
6 Plastic protective cover
2
1
8
7
6
5
3
4
7
Earth ground stud
8
Handle
