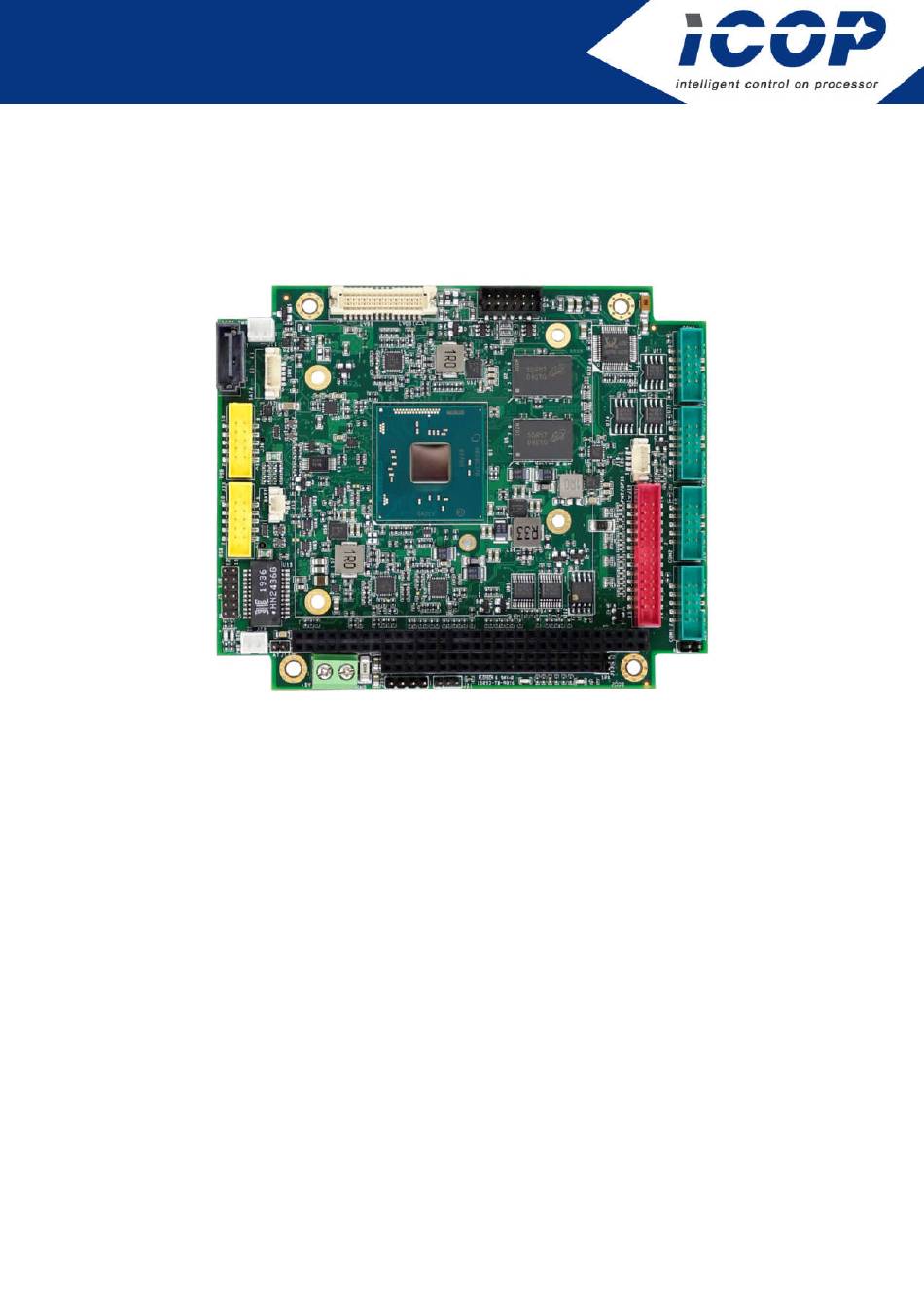

- Page 1 User Manual IBW-6954 A PC/104 embedded solution on ® Intel Quad-core Processor (Braswell Family) Version 1.0 ICOP Technology Inc.
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of ICOP Technology Inc.
- Page 3 IBW35 User Manual Revision History Revision Date Remark March 11, 2020 First version release ICOP Technology Inc.
-
Page 4: Table Of Contents
1.1 Overview ............................1 1.2 Block diagram ..........................1 1.3 Specifications ..........................2 1.4 Ordering Information ........................4 1.4.1 IBW-6954 ..........................4 1.4.2 Optional Accessary ........................4 Hardware Information ..................5 2.1 Dimension ............................. 5 2.2 Board Outline ..........................6 2.3 Connector and Jumper Summary .................... - Page 5 J34: VGA ............................19 J35: 4-pin Power Source ......................... 19 J36: USB(2.0) ..........................19 LVDS1: LVDS ..........................20 INV1: LCD Backlight Control ....................... 20 Technical Support Directly from ICOP ..............21 User Manual Feedback ..................... 21 Warranty ........................22 ICOP Technology Inc.
-
Page 6: General Information
User Manual 1 General Information 1.1 Overview ® IBW-6954, a PC/104 embedded solution for industrial application based on Intel Braswell Quad-Core CPU with 4GB DDR3L RAM onboard, provides stable and powerful computing performance. IBW-6954 supports Gigabit LAN, 4x COM, 4x USB, I C, Parallel, Mini PCIe, HDMI, LVDS, VGA, and SATA interface for storage for development use. -
Page 7: Specifications
SATA device x1 Disk Support mSATA device x1 (Option)* COM x4 (2 for RS232/422/485) C x1 I/O Interface USB 2.0 x4 Parallel/16-bit GPIO x1 Audio (Line-out/MIC-in) *mSATA support must be configured from MiniPCIe interface through H/W modification ICOP Technology Inc. - Page 8 Standard PC/104 connector x1 HDMI connector x1 Terminal block for Power input x1 Mini PCIe slot x1 Power 5V DC Requirement Operating Temp. 0°C to +60°C Dimensions 116mm x 96mm Weight Windows 10 O/S Support Windows 7 (64bits) Linux ICOP Technology Inc.
-
Page 9: Ordering Information
(Intel ® Atom x5-E8000) (Intel ® Pentium ® N3710) (Intel ® Celeron ® N3160) System Memory 4GB DDR3L 1600MHz Accessary CABLE-SATA-30CM x1 1.4.2 Optional Accessary Cable-set-6954 Cable set for IBW-6954 (RS232x4, USBx2, PRINT, Audio x2, LAN, VGA) ICOP Technology Inc. -
Page 10: Hardware Information
IBW35 User Manual 2 Hardware Information 2.1 Dimension Top: Bottom: ICOP Technology Inc. -
Page 11: Board Outline
IBW35 User Manual 2.2 Board Outline Top: Bottom: ICOP Technology Inc. -
Page 12: Connector And Jumper Summary
Terminal Block, 5.0mm, 2x1 USB(2.0) Box Header, 2.0mm, 5x2 Box Header, 2.0mm, 6x2 4-pin Power Source Pin Header, 2.54mm, 4x1 USB(2.0) Box Header, 2.0mm, 5x2 LVDS1 LVDS Wafer, 1.25mm, 15x2 INV1 LCD Backlight Control Wafer, 2.0mm, 5x1 ICOP Technology Inc. -
Page 13: Pin Assignments & Jumper Settings
Signal Name LPC_CLKOUT L_FRAME_N PLTRST_3P3_N VCC5 LPC_AD3 LPC_AD2 VCC3 LPC_AD1 LCD_ADD LCD_SMB_CLK LPC_SMB_DAT J5: LAN 12-pin header(2.0mm) for LAN port. Pin# Signal Name Pin# Signal Name HGTX+1 HGTX-1 HGRX+1 HGRX-1 HGTXC+1 HGTXC-1 HGRXD+1 HGRXD-1 LED0+1 LED0 LED1+1 LED1/EESK ICOP Technology Inc. -
Page 14: J7: Hdmi
IBW35 User Manual J7: HDMI 20-pin wafer(1.0mm) for HDMI. Pin# Signal Name Pin# Signal Name HDMI_DATA2_R_DP HDMI_DATA2_R_DN HDMI_CLK_R_DP HDMI_DATA1_R_DP HDMI_CLK_R_DN HDMI_DATA1_R_DN HDMI_DDPC_SCL HDMI_DATA0_R_DP HDMI_DDPC_SDA HDMI_DATA0_R_DN VCC5_S HDMI_HPD GGND GGND ICOP Technology Inc. -
Page 15: J9: Minipcie
Pin# Signal Name Pin# Signal Name WAKE_(LAN)_3P3_N VCC3P3_S PCIE2_CLKREQ2_N MINI_PCIE_CLK2_DN MINI_PCIE_CLK2_DP Mechanical Key PLTRST_3P3_N PCIE2_RXP VCC3P3_S PCIE2_RXN SMB_CLK_P2 PCIE2_TXN SMB_DAT_P2 PCIE2_TXP XUSBD2- XUSBD2+ VCC3P3_S VCC3P3_S VCC3P3_S * [J9] could be configured as mSATA interface through H/W modification. ICOP Technology Inc. -
Page 16: J10A & J10B: Pc/104
SA18 DACK6# IOR# SA17 DRQ6 SD10 DACK3# SA16 DACK7# SD11 DRQ3 SA15 DRQ7 SD12 DACK1# SA14 VCC5V_S SD13 DRQ1 SA13 MASTER# SD14 REFRESH# SA12 SD15 SYSCLK SA11 IRQ7 SA10 IRQ6 IRQ5 IRQ4 IRQ3 DACK2# BALE VCC5V_S XXOSC ICOP Technology Inc. -
Page 17: J11: Power For Sata Hdd
2-pin box header(2.0mm) for SATA HDD power. Pin# Signal Name VCC5V_S J12: SATA DOM 7-pin SATA connector(5.4mm) for SATA DOM. Pin# Signal Name SATA_TXP SATA_TXN SATA_RXN SATA_RXP J13: Speaker 2-pin pin header for Speaker interface. Pin# Signal Name SPKR VCC5_S ICOP Technology Inc. -
Page 18: J14: Jumper Selection For At/Atx
2-pin pin header(2.0mm) jumper selection for AT/ATX mode. [J14] Closed AT mode [J14] Open ATX mode J15: CMOS Battery 2-pin wafer(1.25mm) for CMOS battery. Pin# Signal Name VCC3P3 J16: Line-out 4-pin wafer(1.25mm) for Line-out interface. Pin# Signal Name LOUT_R LOUT_L ICOP Technology Inc. -
Page 19: J17: Mic-In
IBW35 User Manual J17: MIC-in 4-pin wafer(1.25mm) for MIC-in function. Pin# Signal Name MIC_IN_R MIC_IN _L J18: I 4-pin wafer(1.25mm) for I C interface. Pin# Signal Name I2C5_SDA_3P3 I2C5_SCL_3P3 VCC3 ICOP Technology Inc. -
Page 20: J19: Pnt(Default)/Gpio
2-pin pin header(2.0mm) for Reset button. Pin# Signal Name RSTBTN J21: Power selection for INV1 3-pin pin header for INV1 power selection Pin# Signal Name Pin1 & 2 Closed VCC 5V Pin2 & 3 Closed VCC 12V ICOP Technology Inc. -
Page 21: J23: Power Button
User Manual J23: Power Button 2-pin box header(2.0mm) for Power button. Pin# Signal Name PWRBTN J25: COM1 (RS232) 10-pin male box header(2.0mm) for COM1. Pin# Signal Name Pin# Signal Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 VCC5 ICOP Technology Inc. -
Page 22: J26: Com2 (Rs232)
DSR2 RTS2 CTS2 VCC5 J27: COM3 (RS232/422/485) 10-pin male box header(2.0mm) for COM3. COM3 can be RS232 or RS485 through RS232/422/485. Pin# Signal Name Pin# Signal Name DCD3/422TX-3 RXD3/422TX+3 /1RS485-3 /1RS485+3 TXD3/422RX+3 DTR3/422RX-3 DSR3 RTS3 CTS3 VCC5 ICOP Technology Inc. -
Page 23: J28: Com4 (Rs232/422/485)
J30: Power Connector 2-pin terminal block(5.0mm) for Power connector. Pin# Signal Name Pin# Signal Name VCC5V_A J33: USB(2.0) 10-pin box header(2.0mm) for USB 2.0 interface. Pin# Signal Name Pin# Signal Name VCC5V_A VCC5V_A USB2_DN_2 USB2_DN_3 USB2_DP_2 USB2_DP_3 GGND GGND ICOP Technology Inc. -
Page 24: J34: Vga
J35: 4-pin Power Source 4-pin wafer(2.0mm) for PC/104 power transformer. Pin# Signal Name -12V +12V J36: USB(2.0) 10-pin box header(2.0mm) for USB 2.0 interface. Pin# Signal Name Pin# Signal Name VCC5V_A VCC5V_A USB2_DN_0 USB2_DN_1 USB2_DP_0 USB2_DP_1 GGND GGND ICOP Technology Inc. -
Page 25: Lvds1: Lvds
LVDS_A0- LVDS_A1- LVDS_A2+ LVDS_A2+ LVDS_A2- LVDS_ACLK- LVDS_ACLK+ LVDS_A3- LVDS_A3+ LVDS_B0+ LVDS_B0- LVDS_B1- LVDS_B1+ LVDS_B2+ LVDS_B2- LVDS_B3+ LVDS_B3- DDC_SDA DDC_CLK LVDS_BCLK+ LVDS_BCLK- INV1: LCD Backlight Control Pin1 5V/12 voltage configure by J21 Pin# Signal Name 5V/12V L_BKLT_EN LCD_BKLT_CTRL ICOP Technology Inc. -
Page 26: Technical Support Directly From Icop
—A detailed description and photos of the technical situation —Any complement or technical situations you want ICOP more focusing on User Manual Feedback To make this user manual more complete, if you have any comments or feedbacks to this manual, please feel free to write to info@icop.com.tw... -
Page 27: Warranty
Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. Should you have questions about warranty and RMA service, please contact us directly. ICOP Technology Inc. Address: No. 15 Wugong 5th Road, Xinzhuang Dist. New Taipei City, Taiwan (R.O.C.) 24890...
