Setup guide
Model S6
Greenhouse only
V4 / From Feburary 2023
If you have a Smart Sprout please also use the smart setup guide whilst
assembling your S10

Advertisement

loading
Need help?

Need help?

Do you have a question about the S6 and is the answer not in the manual?

Questions and answers

Summary of Contents for harvst S6

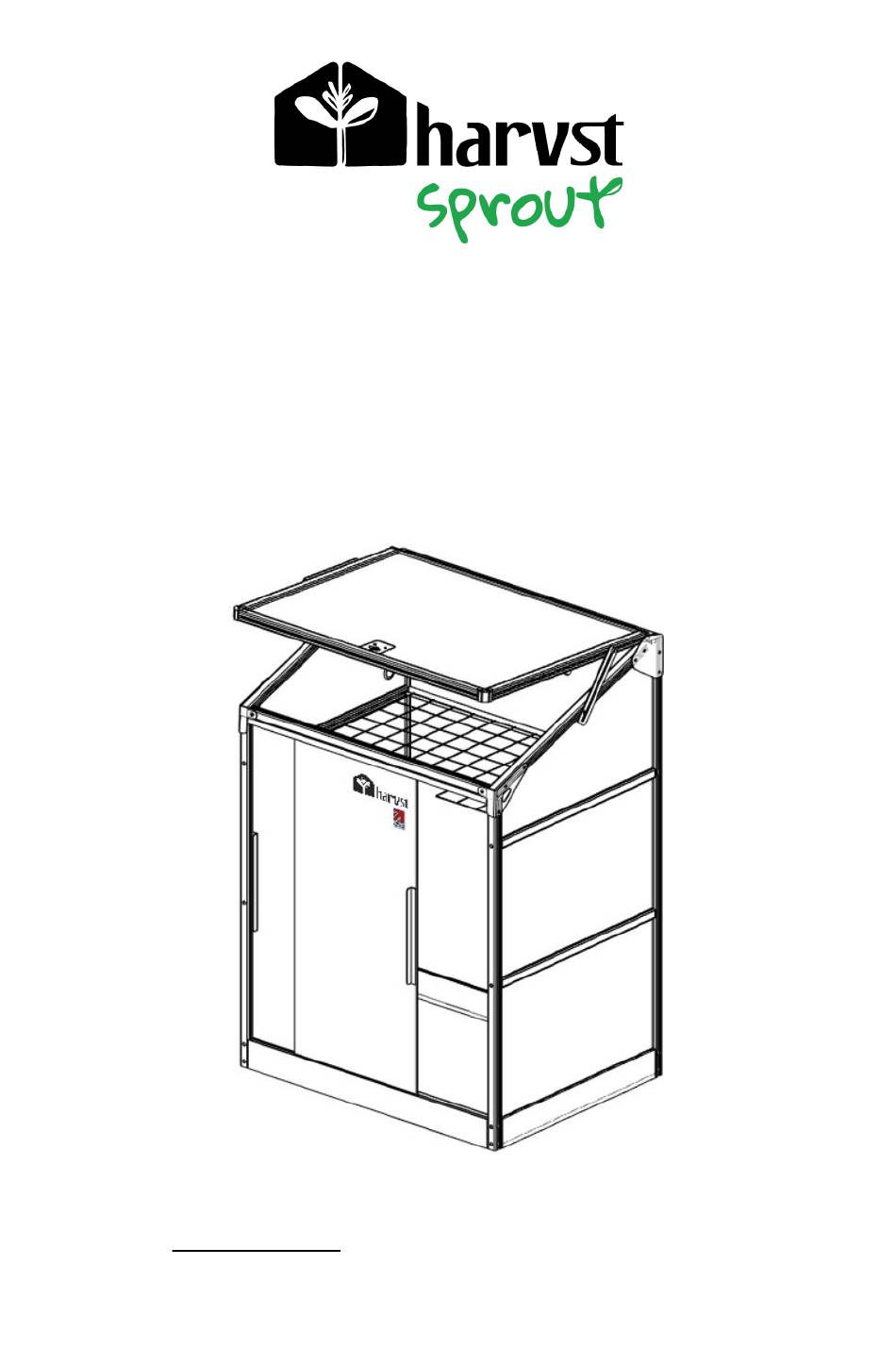

  • Page 1 Setup guide Model S6 Greenhouse only V4 / From Feburary 2023 If you have a Smart Sprout please also use the smart setup guide whilst assembling your S10...
  • Page 2 (help@harvst.co.uk) or check out our forums: https://grow.harvst.co.uk Important information Sprout Mini Greenhouses are intended for outdoor use and should be secured to a fence or wall with the provided fixings. Harvst accept no liability for incorrectly used products. Exploded diagram...
  • Page 3 Tools provided Tools required (not supplied) 3mm allen key Tape measure to identify parts 8mm spanner Secateurs for cutting pipe Pozidrive screwdriver...
  • Page 4 Parts list (aluminium pieces) Weʼve fitted the front and rear uprights to the base parts for you, to save time and help you get started. Weʼve also pre-fitted screws into bars, where required. 450mm x2 600mm x1 Lid sides, with corner cubes Front crossbar 450mm x4 Front assembly x1...
  • Page 5 Side panel top assembly x2 One le and one right Top mesh panel x1 Fixings and small parts M5 x 8mm x12 M5 x 10mm x10 M5 x 16mm x2 M5 x 30mm x2 4.5 x 30 countersunk 4.5 x 30 dome head M5 Nyloc x6 M5 square nut x23 head screws x2...
  • Page 6 3mm allen key Screwdriver 8mm spanner O-ring x2 Panels Black rear panel x1 Clear lid panel x1...
  • Page 7 Clear side panels x 8 Clear side top panel - le x1 Clear side top panel - right x1 Note: Holes for piping Door pair x1...
  • Page 8 Introduction - slotting parts together The greenhouse is based on parts that slot together using stainless steel screws, as shown in the diagram below. These are self tapping screws which require a little bit of force to get them fully seated.
  • Page 9 Step 2 - Fit the door handles Do this step first to allow the adhesive tape to cure before fitting the doors at the end. Parts Fix the door handles to the doors as shown in the drawing 2 x door handle above, using the tape fixed to the handles.
  • Page 10: Step 3 - Assemble The Base

    Step 3 - Assemble the base Parts: 1 x front assembly 1 x rear assembly 2 x side base 45cm This step is best done on a flat surface where you can easily access the screws at the bottom, such as a table or workbench.
  • Page 11 Step 4 - Insert square nuts into cross bars Parts Insert one square nut into the inside channel of each 2 x side cross bar 45cm cross bar that will go on the le side of the 2 x M5 square nut greenhouse.
  • Page 12 Step 6 - Fit the right side top assembly Parts: 1 x Right side top assembly 3 x M5 * 8mm button head bolt 3 x M5 square nut 1 x M5 * 10mm button head bolt Insert the 8mm bolts into the assembly in positions marked 1,2,3, and add the square nuts on the inside, loosely.
  • Page 13 Step 7 - Fit the le side top assembly Parts: Repeat step 6 for the le hand side top assembly 1 x Le side top assembly 3 x M5 * 8mm button head bolt 3 x M5 square nut Step 8 - Fix lid li er bracket to adapter plate This step is only relevant if you have purchased an automatic lid opener.
  • Page 14 Step 10 - Insert the front crossbar Parts 2 x M5 x 30mm bolt 2 x M5 nyloc nut 2 x M5 washer Use the M5 x 30 bolts to secure the front crossbar to the rear of the side assembly corner brackets.
  • Page 15 Step 11 - Understand how the shelves fit Refer to the drawing below to see the recommended position of the shelves. Note: If you have a 4 seasons model please refer to your smart control guide for layout of additional shelves Parts: 2 x 90mm length 4mm pipe 2 x 190mm length 4mm pipe...
  • Page 16 Step 12 - Fit the shelves Parts: Slide the square nuts for the 13mm water Mesh shelves pipe to the middle of the crossbars on the le 2 x 610mm shelf support per shelf hand side of the frame, before you insert the 4 x 10cm cable tie per shelf shelf supports.
  • Page 17 Step 13 - Install rear panel Parts 1 x black rear panel Drop the rear panel into the inner slots of the rear uprights. Ensure it goes fully into the lower base part - itʼs a tight fit. Note: Ensure the panel holes are in the top le orientation when installing the panel This step can be made easier by squeezing the edges of the panels that will be in the...
  • Page 18 Repeat above steps for the le lid side Peel back the film from the lid panel faces. The white side is outside facing. Slot the clear lid panel into the internal area of the lid paying attention to the notches in the lid panel corners as circled in the diagram below.
  • Page 19 Insert 3 square nuts into the outside slot of the le / right side bars. Slide the ridge bar slotted face over the screws of the sidebar. Once positioned, tighten the 2 screws in the side bars to fix the lid ridge in place. Step 15 - Add lid props to lid This is easiest done on a flat table or worktop.
  • Page 20 The 1 x lid top plate bottom lip of the plate below the harvst logo slots into 1 x lid li er the gap between lid panel and the front lid bar for support.
  • Page 21 Step 18 - Fit the lid Parts Place the lid on top of the greenhouse, making sure that the rear 2 x 30mm pan head panel slots into the black channel on the underside of the lid. screw 1 x Lid Secure it with two 30mm screws into the rear uprights.
  • Page 22 Measure 34 cm from the front of the greenhouse to the centre of the M5 x 10 bolt. Step 20 - Install irrigation, heating and lighting If you have a smart sprout, refer to the smart sprout S6 setup guide for adding additional parts...
  • Page 23 Tip: If the doors are too tight, you can loosen the crossbar mounting bolts to let the bar come up a little. Tighten them in a suitable position so that the doors slide well. Step 22 - Fit lid corner and hole caps Nowʼs the time to fit the caps, sit back and have a cup of tea.
  • Page 24: Regular Maintenance

    Storm lock Parts: 4 x M5 x 10mm bolt In very strong winds, you may want to lock the lid so that it doesnʼt blow open. The o-ring fitted to the sides of the lid should be stretched over the frame bolt as shown below: Note: When the storm lock is fitted, you must disengage the automatic lid li er from the pegs on the lower mounting bracket.
  • Page 25: Help And Support

    Help and support For tips, advice and questions, visit our community at https://grow.harvst.co.uk/forums For setup assistance or other queries contact help@harvst.co.uk...
