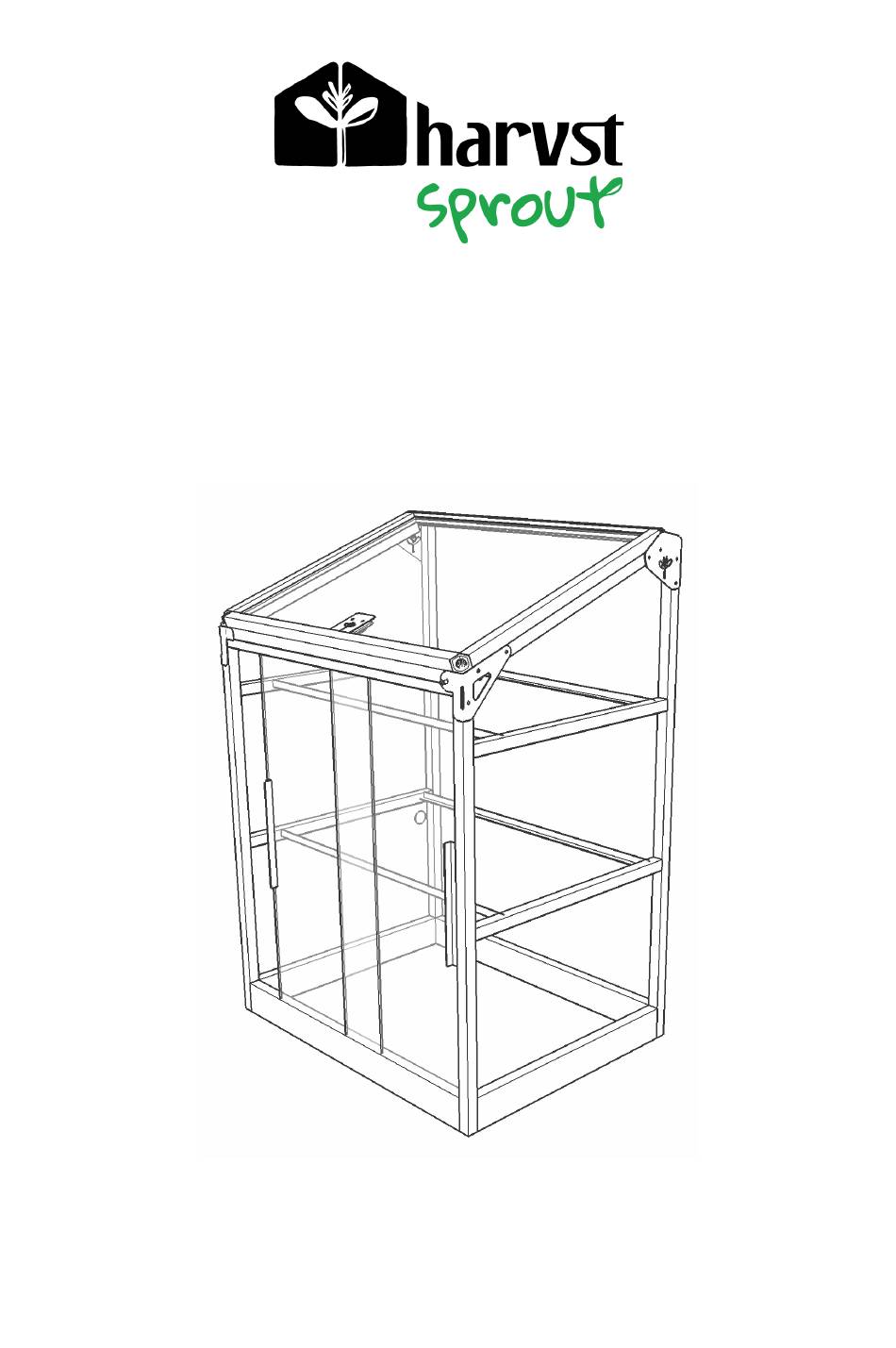

  • Page 1 Setup guide Model S6 V2 from Jan 2022 Greenhouse-only model comes with one shelf...

  • Page 2: Exploded Diagram

    Exploded diagram Visit www.harvst.co.uk/setup for more information, videos and photos...
  • Page 3 Thank you for buying a Harvst greenhouse. If you have any questions while setting up, send us an email (help@harvst.co.uk) or have a look at our forums at https://grow.harvst.co.uk There are also videos at https://www.harvst.co.uk/setup...
  • Page 4 Parts list (aluminium pieces) Weʼve fitted the front and rear uprights to the base parts for you, to save time and help you get started. Weʼve also pre-fitted screws into bars, where required. 450mm x2 600mm x1 Lid sides, with corner cubes Front upper crossbar (box profile as alternative) 450mm x4...
  • Page 5 Fixings and small parts M5 x 8mm x12 M5 x 10mm x3 M5 x 16mm x2 M5 x 30mm x2 M5 Nyloc x1 M5 nut x10 M5 square nut x16 4.5 x 30 screw x4 Blanking plug x10 M5 washer x2 Fixing bracket x2 10cm cable ties May be slot head...
  • Page 6 Introduction - slotting parts together The greenhouse is based on parts that slot together using stainless steel screws, as shown in the diagram below. Ensure that your screwdriver is fully engaged with the screw head when you tighten, so that you donʼt round off...
  • Page 7 Step 2 - Fit the door handles Do this step first to allow the adhesive tape to cure before fitting the doors at the end. Parts Fix the door handles to the doors as shown in the drawing 2 x door handle above, using the tape fixed to the handles.
  • Page 8 Step 3 - Assemble the base Parts: 1 x front assembly 1 x rear assembly 2 x side base 45cm This step is best done on a flat surface where you can easily access the screws at the bottom, such as a table or workbench.
  • Page 9 Step 4 - Insert square nuts into cross bars Parts Insert a square nut into the inside channel of each 2 x side cross bar 45cm cross bar that will go on the le side of the 2 x square nut greenhouse.
  • Page 10 Step 6 - Fit the right side panel top assembly Parts: 1 x Right side panel top assembly 3 x M5 * 8mm button head bolt 3 x M5 square nut 1 x M5 * 10mm button head bolt Insert the 8mm bolts into the assembly in positions marked 1,2,3, and add the square nuts on the inside, loosely.
  • Page 11 Step 8 - Fix lid li er bracket to adapter plate OPTIONAL - if you have an automatic lid opener The lid li er bracket is in the lid opener box. (see drawing below for named parts) Parts: 1 x lid li er bracket 1 x adapter plate 2 x M5 x 8mm button head 2 x M5 nut...
  • Page 12 Step 10 - Insert the front crossbar Parts 2 x M5 x 30mm bolt 2 x M5 nut 2 x M5 washer Bolt the front upper bar to the rear of the brackets on the front of the greenhouse. Tighten securely. Optional step - fit pipe clips If you have a greenhouse with self watering, it will be easiest to fit the pipe clips before adding the mesh shelves.
  • Page 13 Step 11a - Fit the shelves (greenhouse, solar and 3-season) One mesh shelf is supplied as standard for the greenhouse-only and solar models. Two mesh shelves are supplied with the 4-season model, since the additional lighting allows plants to be grown closer together.
  • Page 14 Step 11b (4-season model with LED lights) Slot the combination shelf support / LED lights into the side cross bars in the same way as in step 10a above, with the wires coming out of the le hand side. Secure the mesh shelves to the lights using the cable tie holes. If you have heater cables, leave the attachment of the mesh shelves until a er you have added the heating cable.
  • Page 15 Step 13 - Add the lid prop support bolts Parts Screw the two nuts onto the bolts until they are 2mm 2 x M5 x 16mm button head bolt away from being fully tightened. 2 x M5 nut Slide the heads of the bolts down the inner slot on the top right of the greenhouse, as shown in the drawing The nyloc nut has a little plastic below.
  • Page 16 Step 15 - Lid side bars This is easiest done on a flat table or worktop. Parts 1 x lid rear 2 x square nut 2 x M5 x 10mm 2 x lid sidebar 45cm with corner cubes 1 x o-ring Le and Right lid sides will be marked with the corner cubes facing towards you, as per the drawing above.
  • Page 17 Step 17 - Complete the lid Parts 1 x lid front bar 2 x 30mm screw Screw the front of the lid onto the rest of the lid assembly, with the closed face up. Step 18 - Fit the lid li er to the lid Place the lid upside down on a table (with the black channel facing up), with the holes over the edge.
  • Page 18 Taking care not to trap your fingers, squeeze the sides of the lid li er together and insert the studs into the bracket on the inside of the front upper bar. Watch a video at www.harvst.co.uk/setup for more tips. Step 20 - Fit the ridge to the lid...
  • Page 19 Step 22 - Fit the doors Parts Pop the doors into the sliding channels by flexing them slightly. 2 x polycarbonate door The le hand door goes in the rear (inside) channel and the right With handles fitted hand door goes in the front (outside) channel. Refer to the door drawing at the beginning of the guide.

  • Page 20: Regular Maintenance

    Open the front doors, unclip the li er mechanism, and then open the lid. The lid opener piston is not covered under our manufacturer's guarantee. Help and support For tips, advice and questions, visit our community at https://grow.harvst.co.uk/forums...
