Setup guide
Model S6
Greenhouse-only model comes with one shelf

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sprout S6 Mini and is the answer not in the manual?

Questions and answers

Summary of Contents for harvst Sprout S6 Mini

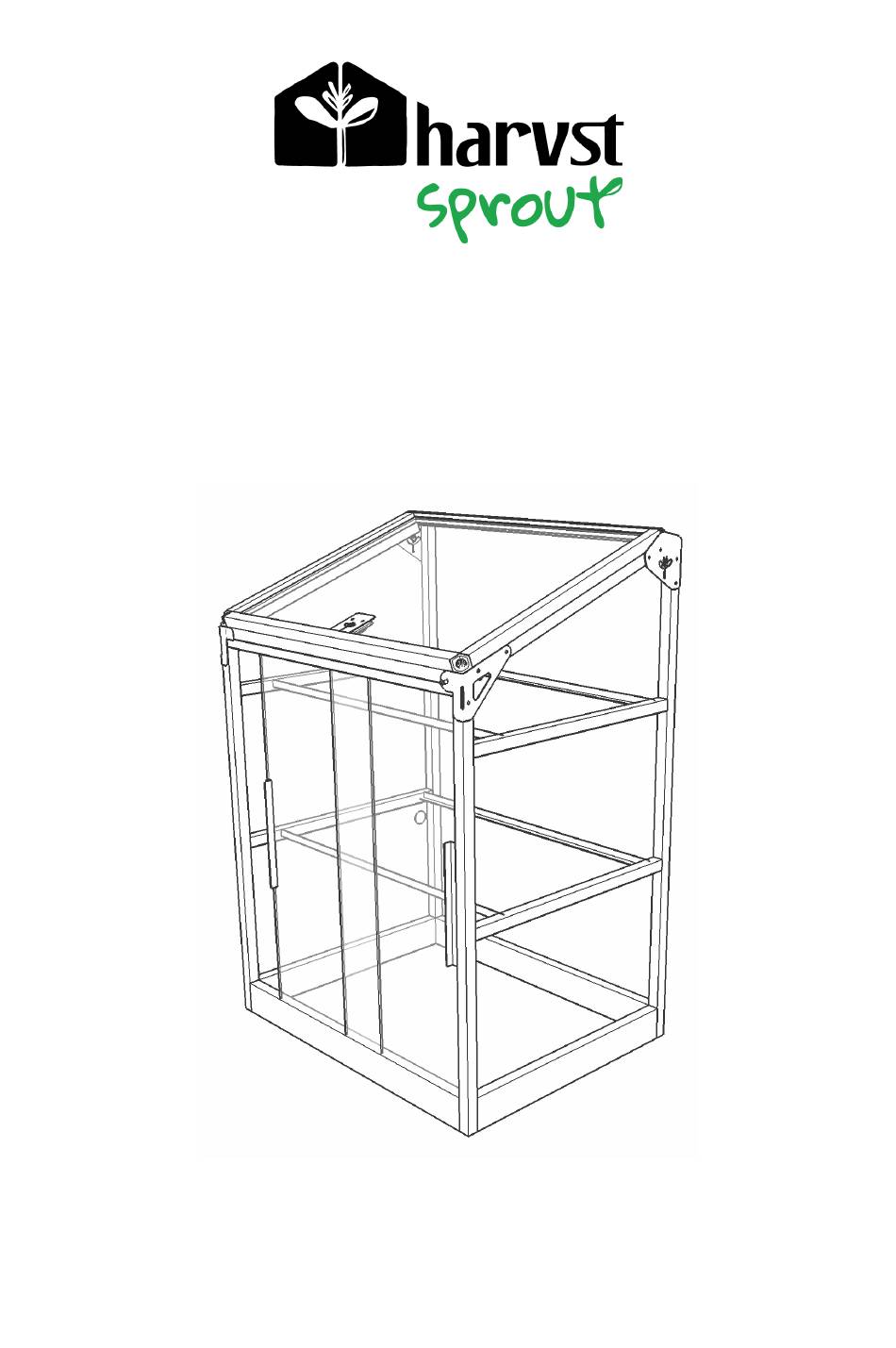

  • Page 1 Setup guide Model S6 Greenhouse-only model comes with one shelf...
  • Page 2: Exploded Diagram

    Exploded diagram Visit www.harvst.co.uk/setup for more information, videos and photos...
  • Page 3 Thank you for buying a Harvst greenhouse. If you have any questions while setting up, send us an email (help@harvst.co.uk) or have a look at our forums at https://grow.harvst.co.uk There are also videos at https://www.harvst.co.uk/setup...
  • Page 4 Parts list (aluminium pieces) Weʼve fitted the front and rear uprights to the base parts for you, to save time and help you get started. Weʼve also pre-fitted screws into bars, where required. 440mm x2 600mm x1 Lid sides, with plastic corners Front upper crossbar (box profile as alternative) 450mm x4...
  • Page 5 Fixings and small parts 4.5 x 30 screw x4 M5 x 8mm x8 M5 nut x4 Cable tie x100 M5 Nylock x1 M5 x 30mm x2 M5 square nut x8 M5 x 16mm x2 Blanking plug x8 Lid corner block x2 M5 washer x2 Fixing bracket x2 Automatic lid li er fixings...
  • Page 6 Introduction - slotting parts together The greenhouse is based on parts that slot together using 30mm stainless steel screws, as shown in the diagram below. Ensure that your screwdriver is fully engaged with the screw head when you tighten, so that you donʼt round off...
  • Page 7 Step 2 - Fit the door handles Do this step first to allow the adhesive tape to cure before fitting the doors at the end. Parts Fix the door handles to the doors as shown in the drawing 2 x door handle above, using the tape fixed to the handles.
  • Page 8: Step 4 - Assemble The Base

    Step 4 - Assemble the base Parts: 1 x front assembly 1 x rear assembly 2 x side base 45cm This step is best done on a flat surface where you can easily access the screws at the bottom, such as a table or workbench.
  • Page 9 Step 5 - Insert square nuts into cross bars Parts Insert a square nut into the inside channel of each 2 x side cross bar 45cm cross bar that will go on the le side of the 2 x square nut greenhouse.
  • Page 10 Step 7 - Fit the side panel top assemblies Parts: 1 x Right side panel top assembly 3 x M5 x 8mm button head bolt 3 x M5 square nut Insert the bolts into the assembly, and add the square nuts on the inside, loosely.
  • Page 11 Step 8 - Fix lid li er bracket to adapter plate OPTIONAL - if you have an automatic lid opener The lid li er bracket is in the lid opener box. (see drawing below for named parts) Parts: 1 x lid li er bracket 1 x adapter plate 2 x M5 x 8mm button head 2 x M5 nut...
  • Page 12 Step 10 - Insert the front crossbar Parts 2 x M5 x 35 bolt 2 x M5 nut 2 x M5 washer Bolt the front upper bar to the rear of the brackets on the front of the greenhouse. Tighten securely. Step 11 - Fit the shelves One shelf is supplied as standard for the greenhouse-only and Eco models.
  • Page 13 Water can be provided by your choice of: Garden hose with an external tap timer ● Garden hose with a Harvst smart controller and electric valves ● Harvst smart controller with water pump ● See our website for a range of videos which show you how to connect up various different water sources to your greenhouse irrigation.
  • Page 14 Step 13 - Fit the grow lights - optional The 3-season and 4-season greenhouses can be fitted with grow lights. Up to a maximum of six per control unit output (see notes on control unit maximum capacity). Per shelf: With the cables on the le , fix the lights to the underside of the mesh shelves using cable ties through the small holes.
  • Page 15 Step 15 - Fix controls to rear panel If you have a greenhouse with a control system, mount the control unit (and power supply) to the rear panel before inserting into the greenhouse, so you can feed the power cable through the side slot before dropping the panel in.
  • Page 16 Step 17 - Add the lid prop support bolts Parts Screw the two nuts onto the bolts until they are 2mm 2 x M5 x 16mm button head bolt away from being fully tightened. 2 x M5 nut Slide the heads of the bolts down the inner slot on the top right of the greenhouse, as shown in the drawing below.
  • Page 17 Step 19 - Lid side bars This is easiest done on a flat table or worktop. Parts 1 x hinged ridge assembly 2 x lid sidebar 44cm With plastic corner pieces Place the ridge piece with the black plastic channel facing down.
  • Page 18 Step 22 - Fit the lid li er to the lid Place the lid upside down on a table (with the black channel facing up), with the holes over the edge. Parts: Place the lid li er so that the bracket with slots in is above the 2 x M4 x 16mm bolt two holes in the front of the lid.
  • Page 19 Step 24 - Fit the lid Parts Place the lid on top of the greenhouse, making sure that the rear 2 x 30mm screw panel slots into the black channel on the underside of the lid. 1 x Lid Secure it with two 30mm screws into the rear uprights. Step 25 - Fit the doors Parts Pop the doors into the sliding channels by flexing them slightly.
  • Page 20: Regular Maintenance

    Open the front doors, unclip the li er mechanism, and then open the lid. The lid opener piston is not covered under our manufacturer's guarantee. Help and support For tips, advice and questions, visit our community at https://grow.harvst.co.uk/forums...
