harvst S24 Setup Manual

Hide thumbs Also See for S24:

Advertisement

Quick Links

Download this manual
Setup guide

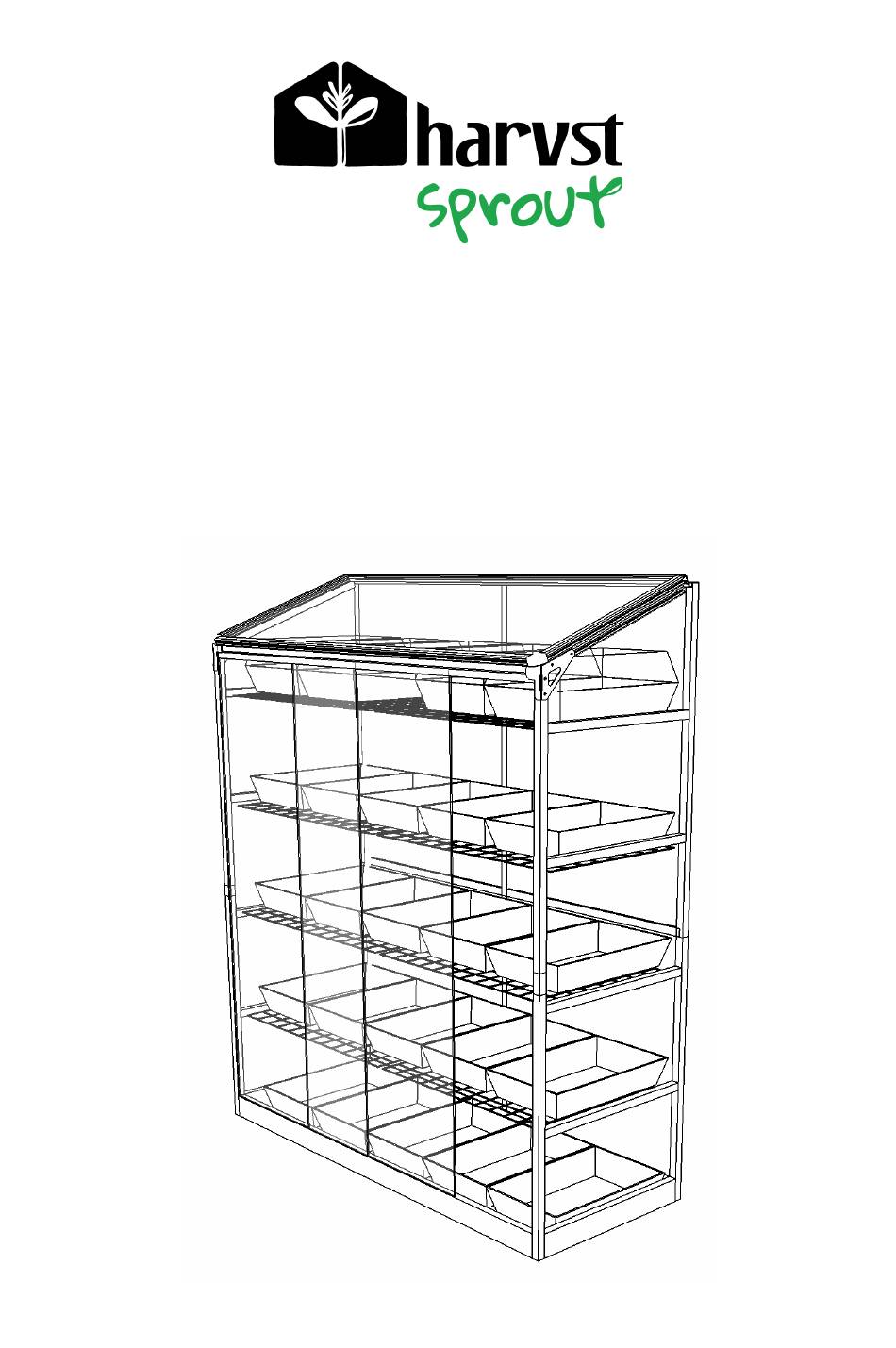

Model S24
Greenhouse only, Solar, 3-season and 4-season versions
4-season model shown above

Advertisement

loading
Need help?

Need help?

Do you have a question about the S24 and is the answer not in the manual?

Questions and answers

Related Manuals for harvst S24

Summary of Contents for harvst S24

  • Page 1 Setup guide Model S24 Greenhouse only, Solar, 3-season and 4-season versions 4-season model shown above...

  • Page 2: Exploded Diagram

    Exploded diagram Visit www.harvst.co.uk/setup for more information, videos and photos...
  • Page 3 Thank you for buying a Harvst greenhouse. If you have any questions while setting up, send us an email (help@harvst.co.uk) or have a look at our forums at https://grow.harvst.co.uk There are also videos at https://www.harvst.co.uk/setup...
  • Page 4 Parts list (aluminium pieces) Weʼve fitted the front and rear uprights to the side base parts for you, to save time and help you get started. Weʼve also pre-fitted screws into bars, where required. 440mm x3 1210mm x1 2 lid sides, with plastic corners Front upper crossbar 1 lid centre (box profile as alternative)
  • Page 5 Fixings and small parts 4.5 x 30mm screws M5 x 8mm M5 nuts 20cm cable ties M5 Nylock x1 M5 x 30mm x1 M5 x 40mm x1 Joining strap x2 Blanking plugs Lid corner cube x2 M5 square nuts Fixing brackets Automatic lid li er fixings (Solar, 3-season and 4-season models only) Li er arm plate x1...
  • Page 6 Panels Tools provided 3mm allen key, 4mm allen key 8mm spanner Pozidrive screwdriver Tools required You will also have mesh shelves, the quantity Tape measure to check parts depending on which model you have bought. Secateurs for cutting pipe...
  • Page 7 Slotting parts together The greenhouse is based on parts that slot together using 30mm stainless steel screws, as shown in the diagram below. Ensure that your screwdriver is fully engaged with the screw head when you tighten, so that you donʼt round off the head of the screw.
  • Page 8 Step 2 - Assemble the base Parts: 1 x le assembly 1 x right assembly 1 x front base 121cm 1 x rear base 121cm This step is best done on a flat surface where you can easily access the screws at the bottom, such as a table or workbench.
  • Page 9 Step 3 - extend the rear uprights Move the frame down onto the floor at this point. Parts 2 x joining strap 8 x M5 x 8 button head 8 x M5 square nut 2 x top rear upright 56cm Insert the bolts into the joining straps, and put a square nut on the back of each, loosely.
  • Page 10 Step 4 - Insert square nuts to side cross bars Parts 8 x side cross bar 45cm 8 x square nuts Insert square nuts into the inside channel of each cross bar as per drawing below. Itʼs worth fitting all the nuts now even if you donʼt have the irrigation kit yet - in case you want to fit it in the future.
  • Page 11 Step 5 - Insert the side panels and side cross bars The second side panel on the le has a hole with a grommet in it for an external hose or tank connection, if you have a solar or 4-season model. Parts: 8 x clear side panel 8 x side cross bar 45cm...
  • Page 12 Step 6 - Fit the side panel top assemblies Parts: 1 x Right side panel top assembly 3 x M5 * 8mm button head bolt 3 x M5 square nut Insert the bolts into the assembly, and add the square nuts on the inside, loosely.
  • Page 13 Step 7 - Fix lid li er bracket to adapter plate OPTIONAL - if you have an automatic lid opener The lid li er bracket is in the lid opener box. (see drawing below for named parts) Parts: 1 x lid li er bracket 1 x adapter plate 2 x M5 x 8mm button head 2 x M5 nut...
  • Page 14 Step 9 - Add the lid prop bolt This is the pivot bolt for the lid prop. Parts: Put the bolt through the hole just to the right of the middle of 1 x M5 x 40mm bolt the crossbar, from the front (the lid li er bracket is on the rear). 1 x M5 nut Secure it with the nut.
  • Page 15 Step 12 - Fit the bolted shelf support bars Two of the shelf support bars are bolted to the frame to hold the sides together. Parts 4 x M5 x 8mm cap head bolt 4 x M5 nut 2 x angle aluminium, 121cm Fix the shelf loosely to the bottom of the bracket, using another M5x8mm bolt and a nut underneath.
  • Page 16 Water can be provided by your choice of: Garden hose with ● an external tap timer Garden hose with ● a Harvst smart controller and electric valves Harvst smart ● controller with Example setup. See website for irrigation details. water pump See our website for a range of videos which show you how to connect up various different...
  • Page 17 Step 14 - Fit the grow lights - optional The 4-Season greenhouses can be fitted with grow lights. Up to a maximum of six per control unit output (see notes on control unit maximum capacity). Per shelf: With the cables on the le , fix the lights to the underside of the mesh shelves using cable ties through the small holes.
  • Page 18 Step 16 - Install lower rear panels Parts Drop the lower rear panels (the smaller ones) into the inner slots of 2 x lower rear panel the rear uprights. Ensure they go fully into the lower base part - itʼs 1 x PVC H-trim 54cm a tight fit.
  • Page 19 Step 18 - Fix controls to upper le rear panel Parts Fit the control unit to the rear panel using the 2 holes at the top le 2 x M5 x 16mm bolt of the panel. Flip the mounting hole covers up on the control unit 2 x M5 washer to expose the mounting holes.
  • Page 20 Step 19 - Fit the doors Parts Remove one of the bolts that fix the front crossbar, so you can 2 x polycarbonate door pivot it up. With handles fitted Slot the doors in, drop the crossbar back into place and secure it with the bolt.
  • Page 21 Step 21 - Lid centre bar This is easiest done on a flat table or worktop. Parts 1 x hinged ridge assembly 1 x lid centre bar 44cm 2 x square nut Place the ridge piece with the black plastic channel facing down.
  • Page 22 Step 25 - Fit the lid front bar Parts 1 x lid front bar 121cm 2 x 30mm screw Screw the front of the lid onto the rest of the lid assembly, with the closed face up. Step 26 - Fit the li er arm plate to the lid li er Parts: Open the lid li er box and remove the small parts from 2 x M4 x 12mm bolt...
  • Page 23 Step 28 - Fit the lid to the greenhouse Parts Place the lid on top of the greenhouse, making sure that the rear 2 x 30mm screw panel slots into the black channel on the underside of the lid. 1 x Lid Secure it with two 30mm screws into the rear uprights.

  • Page 24: Regular Maintenance

    Open the front doors, unclip the li er mechanism, and then open the lid. The lid opener piston is not covered under our manufacturer's guarantee. Help and support For tips, advice and questions, visit our community at https://grow.harvst.co.uk/forums...
