Summary of Contents for harvst Sprout S10 Mini

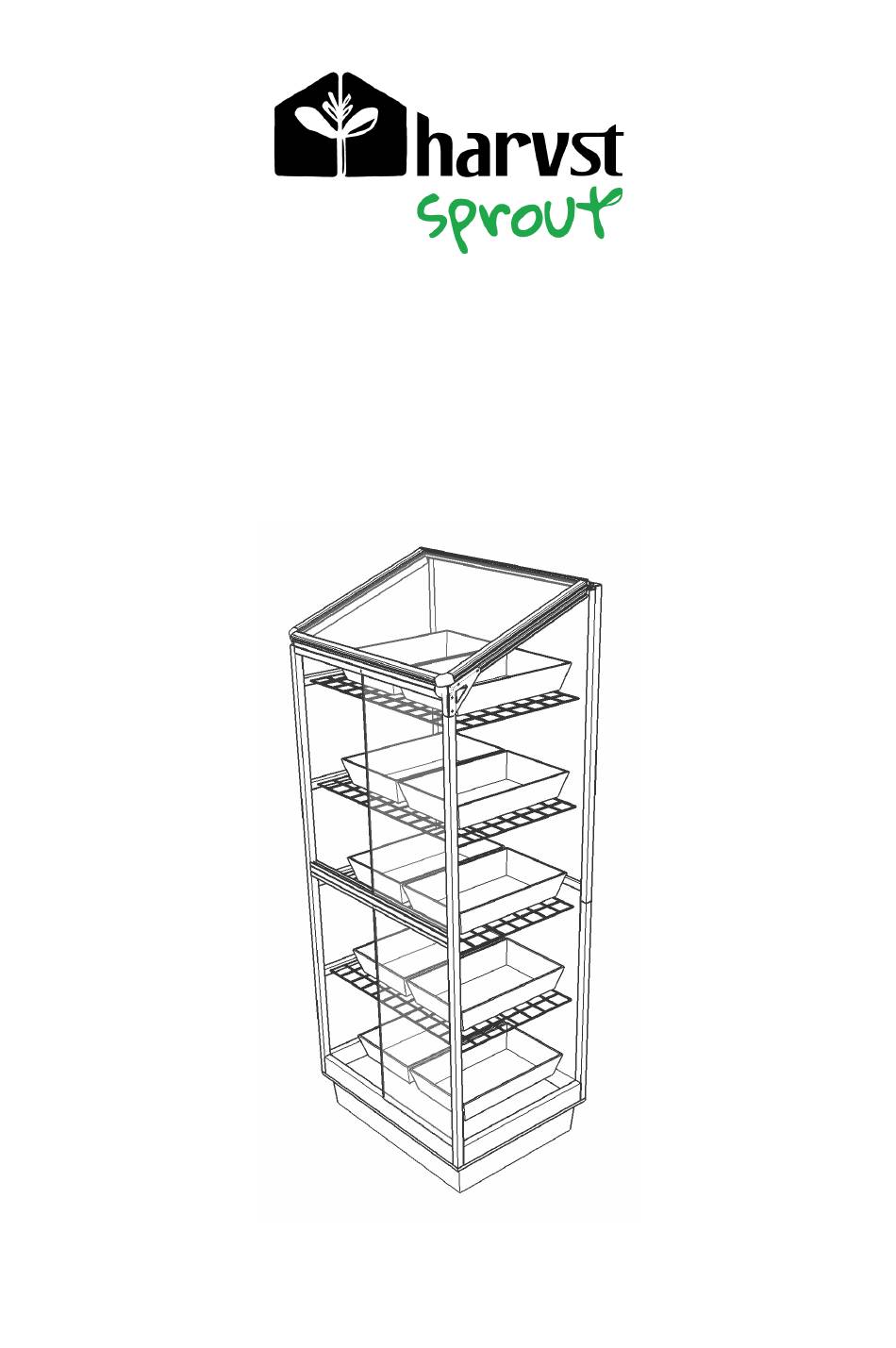

- Page 1 Setup guide Model S10 Greenhouse only, Solar 3-season and 4-season versions 4-season shown above...
- Page 2 Thank you for buying a Harvst greenhouse. If you have any questions while setting up, send us an email (help@harvst.co.uk) or have a look at our forums at https://grow.harvst.co.uk There are also videos at https://www.harvst.co.uk/setup...
-
Page 3: Exploded Diagram
Exploded diagram Visit www.harvst.co.uk/setup for more information, videos and photos... - Page 4 Parts list (aluminium pieces) 440mm x2 580mm x2 Lid sides with plastic corners Rear top upright 450mm Side panel crossbar 1308mm x2 Front upright 910mm x2 600mm x2 Rear lower upright Lid front & rear crossbar 600mm x1 610mm Shelf support Front upper crossbar x4 GH / Solar models (box profile as alternative)
- Page 5 Parts - clear panels...
- Page 6 Parts - rear panels Parts - other Tools provided Mesh shelves 3mm allen key 8mm spanner Pozidrive screwdriver Tools required Tape measure You will also have mesh shelves and shelf supports; Secateurs for cutting pipe 2 shelves for greenhouse-only and solar models. 4 shelves for 4-season models.
- Page 7 Fixings and small parts 4.5 x 30 screw x12 M5 x 8mm x14 M5 nut x14 M5 washer x14 M5 Nylock x3 M5 x 30mm x2 M5 square nut x2 M5 x 16mm x2 Cable tie x20 Blanking plug x12 Lid corner block x2 Joining strap x2 Automatic lid li er fixings...
- Page 8 Introduction - Slotting parts together The greenhouse is based on parts that slot together using stainless steel screws, as shown in the diagram below. Ensure that your screwdriver is fully engaged with the screw head when you tighten, so that you donʼt round off...
- Page 9 Step 2 - Attach the door handles Do this step first to allow the adhesive tape to cure while you assemble the rest of the greenhouse. Youʼll fit the doors at the end. Parts Fix the door handles to the doors as shown in the drawing 4 x door handle above, using the tape fixed to the handles.
- Page 10 Step 4 - Assemble the base Parts: This step is best done on a flat surface where you can 1 x front assembly easily access the screws at the bottom, such as a table or 1 x rear assembly workbench. 2 x side base 45cm Link the front and rear assemblies using the 45 cm...
- Page 11 Step 5 - extend the rear uprights Move the frame down onto the floor at this point. Parts 2 x joining strap 8 x M5 x 8 button head 8 x M5 square nut 2 x top rear upright 58cm Insert the bolts into the joining straps, and put a square nut on the back of each, loosely.
- Page 12 Step 6 - Insert square nuts into cross bars These are for you to attach pipe clips for irrigation (which you may add in the future even if you donʼt have them now). Parts 4 x side cross bar 45cm 4 x square nut Insert a square nut into the inside channel of each crossbar that will go on the le side of the...
- Page 13 Step 8 - Front crossbar Parts: 1 x Front cross bar (60cm with a black channel top and bottom) Slide the crossbar into the front of the greenhouse and tighten when the screws line up with the holes in the uprights. Closed face forwards.
- Page 14 Step 10 - Side panel top assemblies Parts: 1 x Right side panel top assembly 3 x M5 * 8mm button head bolt 3 x M5 square nut Insert the bolts into the assembly, and add the square nuts on the inside, loosely.
- Page 15 Step 11 - Fix lid li er bracket to adapter plate OPTIONAL - if you have an automatic lid opener The lid li er bracket is in the lid opener box. (see drawing below for named parts) Parts: 1 x lid li er bracket 1 x adapter plate 2 x M5 x 8mm button head 2 x M5 nut...
- Page 16 Step 13 - Front upper cross bar Parts 2 x M5 x 30 bolt 2 x M5 nut 2 x M5 washer 1 x front bar you have assembled Bolt the front upper bar to the rear of the brackets on the front of the greenhouse.
- Page 17 Step 14 - Fit the shelves Parts: Mesh shelves 2 x shelf support per shelf 4 x cable tie per shelf Slide the square nuts for the 13mm water pipe to the middle of the crossbars on the le hand side of the frame, before you insert the shelf supports.
- Page 18 Step 15 - Install irrigation system (optional) Watch a video which outlines the irrigation system at www.harvst.co.uk/setup Fit the pipe clips Parts Fix the pipe clips to the square nuts in the le side panel cross 4 x pipe clip bars using the 16mm bolts.
- Page 19 Step 16 - Fit the grow lights - optional The 4-Season greenhouses can be fitted with grow lights. Per shelf: With the cables on the le , fix the lights to the underside of the mesh shelves using cable ties through the small holes. 2 x light bar 8 x cable tie Extra light pairs...
- Page 20 Step 17 - Fix controls to rear panels If you have a greenhouse with a control system, mount the control unit (and power supply) to the upper rear panel , and then slide it up so you can feed the power cable through the side slot before dropping the panel back in.
- Page 21 Step 19 - Add the lid prop bolts Parts Screw the two standard nuts onto the bolts until they are 2mm 1 x lid prop 42cm away from being fully tightened. 2 x M5 x 16mm bolt 2 x M5 nut Slide the heads of the bolts down the inner slot on the top right 1 x M5 nyloc nut end panel bar, as shown in the drawing below..
- Page 22 Step 21 - Lid side bars This is easiest done on a flat table or worktop. Parts 1 x hinged ridge assembly 2 x lid sidebar 44cm With plastic corner pieces Place the ridge piece with the black plastic channel facing down.
- Page 23 Step 24 - Fit the lid li er to the lid Place the lid upside down on a table (with the black channel facing up), with the holes over the edge. Parts: Place the lid li er so that the bracket with slots in is above the 2 x M4 x 16mm bolt two holes in the front of the lid.
- Page 24 Step 26 - Fit the lid to the greenhouse Parts Place the lid on top of the greenhouse, making sure that the rear panel 2 x 30mm screw slots into the black channel on the underside of the lid. 1 x Lid Secure it with two 30mm screws into the rear uprights.
-
Page 25: Regular Maintenance
Open the front doors, unclip the li er mechanism, and then open the lid. The lid opener piston is not covered under our manufacturer's guarantee. Further reading We have more information on our website at www.harvst.co.uk about: The smart control system and web app ●...
