harvst sprout S10 Setup Manual

Greenhouse only, solar, 3-season and 4-season versions
Hide thumbs Also See for sprout S10:

Advertisement

Quick Links

Download this manual

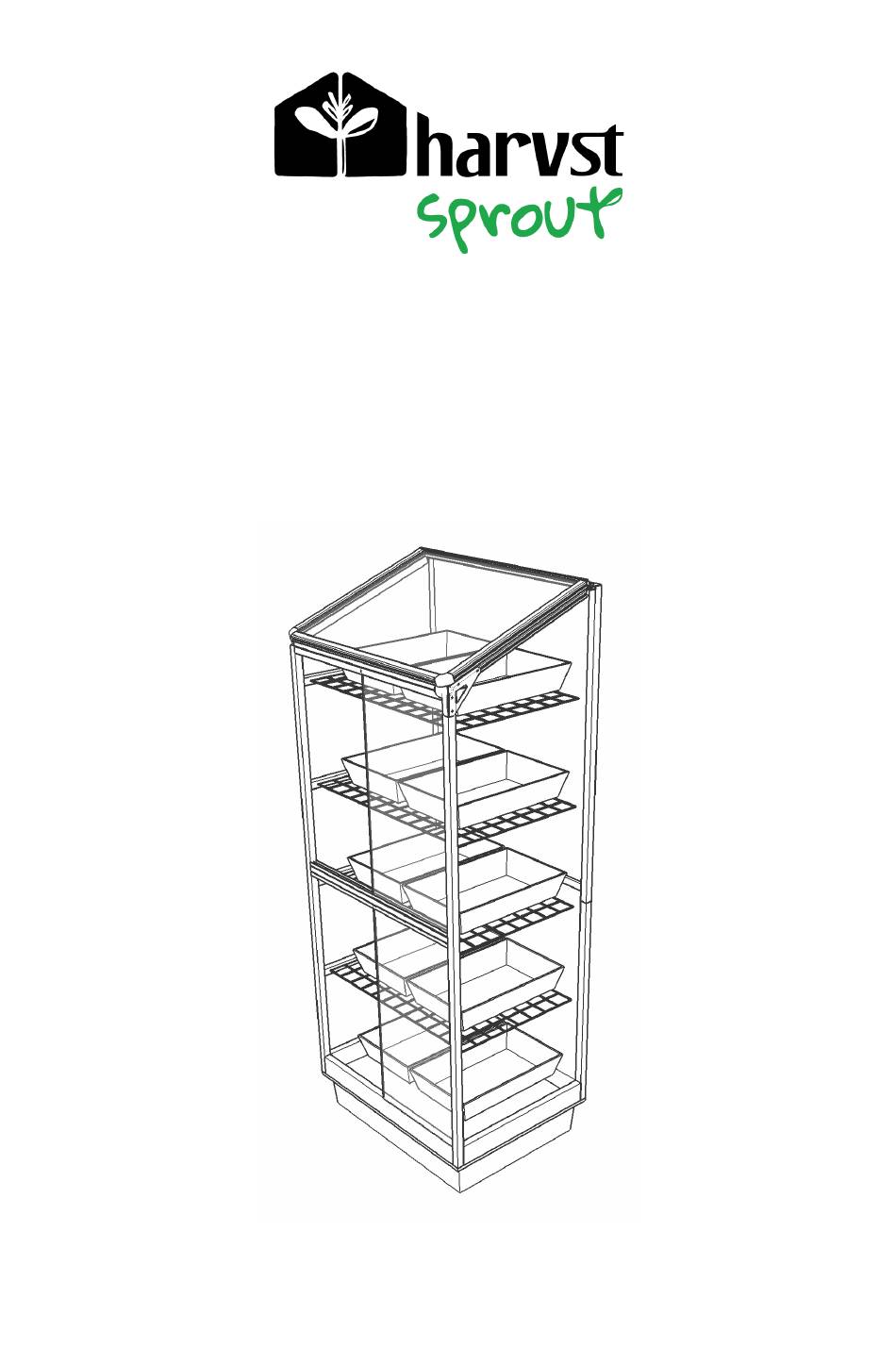

Setup guide
Model S10
Greenhouse only, Solar, 3-season and 4-season versions
4-season shown above

Advertisement

loading
Need help?

Need help?

Do you have a question about the sprout S10 and is the answer not in the manual?

Questions and answers

Related Manuals for harvst sprout S10

Summary of Contents for harvst sprout S10

  • Page 1 Setup guide Model S10 Greenhouse only, Solar, 3-season and 4-season versions 4-season shown above...
  • Page 2 Thank you for buying a Harvst greenhouse. If you have any questions while setting up, send us an email (help@harvst.co.uk) or have a look at our forums at https://grow.harvst.co.uk There are also videos at https://www.harvst.co.uk/setup Important information Sprout mini greenhouses are intended for outdoor garden use, fixed securely to a fence, wall or the ground.

  • Page 3: Exploded Diagram

    Exploded diagram Visit www.harvst.co.uk/setup for more information, videos and photos...
  • Page 4 Parts list (aluminium pieces) 440mm x2 580mm x2 Lid sides with plastic corners Rear top upright 450mm Side panel crossbar 1308mm x2 Front upright 910mm x2 600mm x2 Rear lower upright Lid front & rear crossbar 600mm x1 610mm Shelf support Front upper crossbar x4 GH / 3-season / Solar (box profile as alternative)
  • Page 5 Parts - clear panels...
  • Page 6 Parts - rear panels Showing position of control unit and power supply (if provided, with the smart greenhouse). Control unit and power supply are fitted a er the greenhouse is built. Parts - other Tools provided Mesh shelves 3mm allen key 8mm spanner Pozidrive screwdriver Tools required...
  • Page 7 Fixings and small parts M5 x 8mm x20 M5 x 10mm x3 M5 x 16mm x2 M5 x 30mm x4 M5 Nyloc x1 M5 nut x8 M5 square nut x22 4.5 x 30 screw x4 10cm cable ties M5 washer x2 Blanking plug x14 Joining strap x2 May be slot head...
  • Page 8 Introduction - Slotting parts together The greenhouse is based on parts that slot together using stainless steel screws, as shown in the diagram below. Ensure that your screwdriver is fully engaged with the screw head when you tighten, so that you donʼt round off...
  • Page 9 Step 2 - Attach the door handles Do this step first to allow the adhesive tape to cure while you assemble the rest of the greenhouse. Youʼll fit the doors at the end. Parts Fix the door handles to the doors as shown in the drawing 4 x door handle above, using the tape fixed to the handles.
  • Page 10 Step 3 - Assemble the base Parts: This step is best done on a flat surface where you can 1 x front assembly easily access the screws at the bottom, such as a table or 1 x rear assembly workbench. 2 x side base 45cm Link the front and rear assemblies using the 45 cm...
  • Page 11 Step 4 - extend the rear uprights Move the frame down onto the floor at this point. Parts 2 x joining strap 8 x M5 x 8 button head 8 x M5 square nut 2 x top rear upright 58cm Insert the bolts into the joining straps, and put a square nut on the back of each, loosely.
  • Page 12 Step 5 - Insert square nuts into cross bars These are for you to attach pipe clips for irrigation (which you may add in the future even if you donʼt have them now). Parts 4 x side cross bar 45cm 4 x square nut Insert a square nut into the inside channel of each crossbar that will go on the le side of the...
  • Page 13 Step 7 - Front crossbar Parts: 1 x Front cross bar (60cm with a black channel top and bottom) Slide the crossbar into the front of the greenhouse and tighten when the screws line up with the holes in the uprights. Closed face forwards.
  • Page 14 Step 9 - Fit the right side panel top assembly Parts: 1 x Right side panel top assembly 3 x M5 * 8mm button head bolt 3 x M5 square nut 1 x M5 * 10mm button head bolt Insert the 8mm bolts into the assembly in positions marked 1,2,3, and add the square nuts on the inside, loosely.
  • Page 15 Step 11 - Fix lid li er bracket to adapter plate OPTIONAL - if you have an automatic lid opener The lid li er bracket is in the lid opener box. (see drawing below for named parts) Parts: 1 x lid li er bracket 1 x adapter plate 2 x M5 x 8mm button head 2 x M5 nut...
  • Page 16 Step 13 - Front upper cross bar Parts 2 x M5 x 30 bolt 2 x M5 nut 2 x M5 washer 1 x front bar you have assembled Bolt the front upper bar to the rear of the brackets on the front of the greenhouse.
  • Page 17 Step 14 - Fit the shelves Parts: Slide the square nuts for the 13mm water Mesh shelves pipe to the middle of the crossbars on the le 2 x shelf support per shelf hand side of the frame, before you insert the 4 x cable tie per shelf shelf supports.
  • Page 18 Step 15 - Add the lid prop bolts Parts Screw the two standard nuts onto the bolts until they are 2mm 2 x M5 x 16mm bolt away from being fully tightened. 2 x M5 nut Slide the heads of the bolts down the inner slot on the top right end panel bar, as shown in the drawing below..
  • Page 19 Step 17 - Fit storm lock bolts to right lid side Position the lid le and right sides on the table. L and R will be marked with the corner cubes facing towards you. The closed face is upwards. Parts 1 x right lid sidebar (45cm with corner cubes) 2 x square nut...
  • Page 20 Step 20 - Complete the lid Parts 1 x lid front bar 2 x 30mm screw Screw the front of the lid onto the rest of the lid assembly, with the closed face up. Step 21 - Fit the lid li er to the lid Place the lid upside down on a table (with the black channel facing up), with the holes over the edge.
  • Page 21 Step 22 - Fit the lid li er piston WARNING - the lid li er has powerful springs and should be treated with care. Parts Prop the greenhouse lid open. Insert the black piston into the lid li er, 1 x lid li er piston using the instructions as supplied with the lid li er.
  • Page 22 Step 25 - Fit the top doors Parts Pop the doors into the sliding channels by flexing them 2 x polycarbonate door slightly. The le hand door goes in the rear (inside) channel With handles fitted and the right hand door goes in the front (outside) channel. Shorter pair With sticker Step 26 - Fit the bottom doors...

  • Page 23: Regular Maintenance

    Open the front doors, unclip the li er mechanism, and then open the lid. The lid opener piston is not covered under our manufacturer's guarantee. Further reading We have more information on our website at www.harvst.co.uk about: The smart control system and web app ●...
