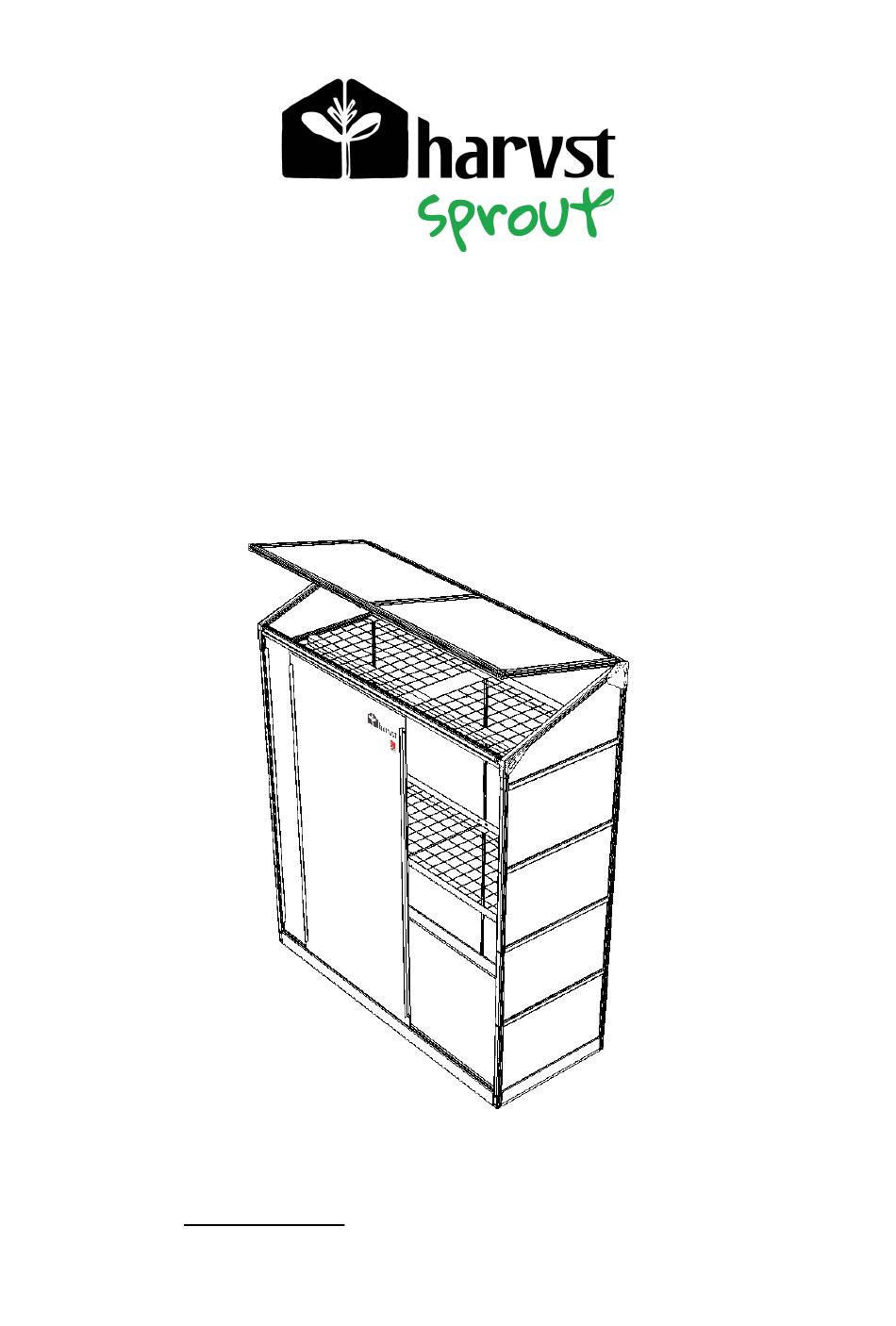

- Page 1 Setup guide Model S24 Greenhouse only V4/ From January 2023 If you have a Smart Sprout please also use the smart setup guide whilst assembling your S24...
- Page 2 (help@harvst.co.uk) or check out our forums: https://grow.harvst.co.uk SCAN ME WITH YOUR CAMERA: Important information Sprout Mini Greenhouses are intended for outdoor use and should be secured to a fence or wall with the provided fixings. Harvst accept no liability for incorrectly used products.
-
Page 3: Exploded Diagram
Exploded diagram Tools provided Tools required (not supplied) 3mm allen key, 4mm allen key Tape measure to identify parts 8mm spanner Secateurs for cutting pipe Pozidrive screwdriver... - Page 4 Parts list (aluminium pieces) 450mm x3 1210mm x1 2 lid sides with corner Front crossbar 1 lid centre Double channel trim attached 450mm x8 1210mm x1 Side panel crossbar Lid front bar 2 pre-installed screws per piece 558mm x2 Rear upright (top pieces) Lid prop x2 Shelf supports x4 2 x side assemblies...
- Page 5 1250mm x1 1250mm x1 Lid bar rear Lid ridge With black PVC channel Lid ridge and ridge rear assembly 14” x 22” mesh panels x4 Fixings and small parts Additional fixings will be supplied if your greenhouse comes with a smart control system. See the control system setup guide for details.
- Page 6 Joining strap x2 Fixing bracket x2 Li er arm plate Li er adapter plate 4.5 x 30mm countersunk head Cable tie x10 long Hole punch screws x2 Blanking plug x15 4mm tube for fixing shelves 90mm x4, 160mm 4.5 x 30mm dome head screw x2 O-ring x2 Roll of foil tape...
- Page 7 Top- looking down: Perspective of doors in sprout. Note the orientation of the handles Above - note the orientation of the lid poly relative to the notches in the bottom le /right respectively.
- Page 8 Poly side top panel - le x1 Note: Holes for piping Poly side top panel - right x1 Poly side panels x8...
- Page 9 Slotting parts together The greenhouse is based on parts that slot together using 30mm stainless steel screws, as shown in the diagram below. These are self tapping screws which require a little bit of force to get them fully seated. Ensure that your screwdriver is fully engaged with the screw head when you tighten, so that...
- Page 10 Step 1 - Seal the polycarbonate panels (optional) This step is optional, but is recommended. Twin wall polycarbonate panels act like double glazing for your mini greenhouse. To improve the insulation characteristics, itʼs good to seal the ends of the channels using the foil tape provided. It also helps prevent bugs from crawling into the plastic.
- Page 11 Slot the le and right assemblies over the screws on the front and rear base parts and tighten the screws using the screwdriver.
- Page 12 Step 3 - Fit the rear upright joining straps Move the frame down onto the floor. Parts 2 x joining strap 8 x M5 x 8 button head 8 x M5 square nu5 2 x top rear upright 55.8cm Insert the 8mm bolts into the joining straps, and put a square nut on the back of each, loosely.
- Page 13 Step 4 - Fit the top rear uprights Parts With the holes as shown in the drawing below, slide the top rear 2 x top rear upright 55.8cm uprights down over the joining straps. The closed face should be to the rear of the greenhouse. Tighten the upper pair of bolts.
- Page 14 Step 6 - Insert the side panels and side cross bars Parts: 8 x clear side panel Note the sequence of cross bars, with 8 x side cross bar 45cm the number of nuts in the diagram 2 x top clear side panel. Two holes in the Le below.
- Page 15 Step 7 - Fit the right side panel top assembly Parts: 1 x Right side panel top assembly 3 x M5 * 8mm button head bolt 3 x M5 square nut 1 x M5 * 10mm button head bolt Insert the 8mm bolts into the assembly in positions marked 1,2,3, and add the square nuts on the inside, loosely.
- Page 16 Step 9 - Fix lid li er bracket to adapter plate This step is only relevant if you have purchased an automatic lid opener. Parts in Li er Box : 1 x Piston Clip (end of box) 1 x Piston 1 x Arm 1 x Li er Bracket The lid li er bracket is in the lid opener box.
- Page 17 Step 11 - Insert the front crossbar Parts 2 x M5 x 30mm bolt 2 x M5 nyloc nut 2 x M5 washer Bolt the front crossbar to the rear of the brackets on the front of the greenhouse, using the M5 x 30 bolts through the front. Fix them in place with a washer and nyloc nut on the rear.
- Page 18 Step 12 - Understand how the shelves fit Refer to the drawing below to see which shelves are bolted and which shelves simply slot into the greenhouse only frame. Note: If you have a 4 seasons model please refer to your smart control guide for layout of additional shelves.
- Page 19 Step 13 - Fit the shelf supports The shelf with the double holes half way along is fitted to the rear of the greenhouse. The shelf without the holes is fitted to the front. This step can be easier with an additional pair of hands to support the bars whilst positioning.
- Page 20 Top tip: Once you have the bolted shelf supports in place, use a long strip of masking tape (or similar) across the back of the greenhouse to hold the sides vertical. Without the tape there is a tendency for the sides to splay out, and the slotted shelf supports and rear panels may fall out.
- Page 21 Step 15 - Install lower rear panels This step can be made easier by squeezing the edges of the panels that will be in the slots of the frame so that they are slightly deformed. Parts Drop the lower rear panels (the smaller ones) into the ●...
- Page 22 Step 17 - Assemble the lid Parts 1 x lid ridge 1 x lid rear 2 x lid side bars with corner caps 8 x square nuts 2 x countersunk head screws 1 x 45cm lid centre bar 1 x 121cm lid front bar 1 x lid poly set Lay out the lid front bar onto a flat surface with the closed face facing downwards.
- Page 23 Repeat step b for the le lid side- bar Peel back the film from the polycarb faces. The white side is outside facing. Slot the polycarb panels into the two internal areas in the lid paying attention to the notch in the polycarb corner.
- Page 24 Insert 3 square nuts into the outside slot of the le / right side bars. Insert 2 square nuts into the slot of the centre bar. Slide the ridge bar slotted face over the screws in the centre bar/ side bar. Once positioned, tighten the 3 screws in the centre/ side bars.
- Page 25 Step 18 - Add lid props to lid This is easiest done on a flat table or worktop. Parts 2 x lid props 2 x m5 x 10 button head bolts Note orientation of the lid prop Secure the lid prop bracket. Measure 100mm from the rear of the lid sidebar to the centre of the bolt and secure the bolt through the lid prop hole and into the square nut in the slot.
- Page 26 Step 19 - Fit li er piston Parts Insert the black lid li er piston into the lid li er, using the instructions as supplied in the li er box. 1 x lid li er piston Step 20 - Fit the li er arm plate to the lid li er Parts: 2 x M5 x 10mm bolt Fit the lid li er to the li er arm plate.
- Page 27 Step 21 - Fit the lid li er to the lid Parts: Turn the lid upside down. 2 x M5 x 8mm bolt The two square nuts in the centre channel will now be visible. 1 x lid li er Refer to the drawing above and fix the li er arm plate to the square nuts using the bolts, with a 15mm gap to the front bar.
- Page 28 Step 22 - Fit the lid to the greenhouse Place the lid on top of the greenhouse, making sure that the rear panel slots into the black channel on the underside of the lid. Parts Secure it with two 30mm screws into the rear uprights. 2 x 30mm domed screw 1 x Lid Before you tighten the...
- Page 29 Step 24 - Slot in the rest of the shelf supports If you have a 4 season S24 refer to the smart setup guide for installation of shelves. Note: For the notched shelves it is recommended to use a length of tape...
- Page 30 Once the shelf supports are in place, fix the top mesh shelves to the shelf supports using the long cable ties. The other shelves can be cradled by the shelves and not require cable ties, but you can fit if required for extra security. Your S24 should now resemble the diagram below.
- Page 31 The front top shelf support needs to be mounted further back to allow the lid li er piston to swing, as per the drawing. Leave a 50mm gap between the le and right mesh panels for the li er piston.
- Page 32 Step 26 - Connect the lid li er. Optional Taking care not to trap your fingers, squeeze the sides of the lid li er together and insert the studs into the bracket on the inside of the front upper bar. Step 27 - Fit the hole caps Weʼve supplied some small black plastic caps to cover the screw holes in the front of the greenhouse and in the lid rear.
- Page 34 Step 30 - Storm lock Parts 4 x M5 x 10 bolts Fit two M5 x 10s into the outside channel of the lid with a 60mm spacing. Fit the o ring around the two upper bolts and when you need to lock the lid pull it down over the lower bolt. Step 31 - Secure the greenhouse down We recommend that you secure the sprout to the ground, a wall or a fence.
-
Page 35: Regular Maintenance
Open the front doors, unclip the li er mechanism, and then open the lid. The lid opener piston is not covered under our manufacturer's guarantee. Help and support For tips, advice and questions, visit our community at https://grow.harvst.co.uk/forums For setup assistance or other queries contact help@harvst.co.uk...
