Ltech LT-3060-8A Instructions

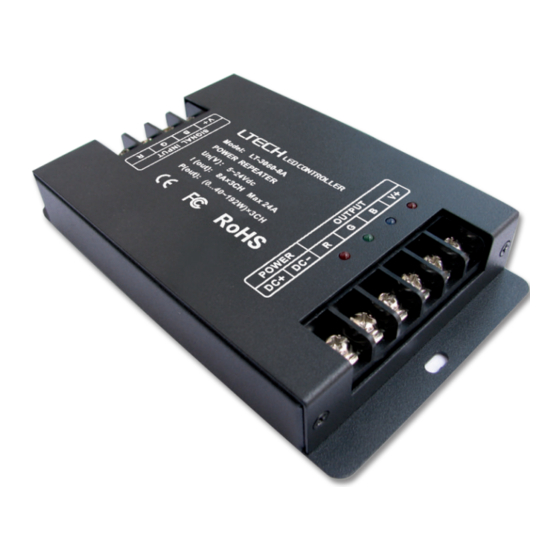

LT-3060-8A
LED CV Power Repeater
LED power repeater is suitable for all of LTECH power types(DIM,CT,RGB) LED controller's
power expansion. It accepts PWM control. The controlled LED quantities would be double
or triple by adding one more power repeater. Unlimited power repeaters could be connected
theoretically. It has Short circuit/Over current/anti-reverse connection safety protection.
Constant voltage and constant current LED power repeater can be mixed connect,
facilitate different voltage, high power and low power LED lamps controlled by one
controller.
1. Product Parameter:
LT-3060-8A (Common Anode)
Input Signal: PWM (200Hz-2000Hz)
Input Voltage: 5~24Vdc
Max Current Load: 8A×3CH Max. 24A
Output Power: (0~40W...192W)×3CH Max. 576W
Protection:Over current / Short circuit / Reverse
connection protection
2. Product Size:
148mm
LT-3060-8A Power Repeater
warranty
5 years
Working Temperature: -30 ~65 ℃
℃
Dimension: L148×W87×H23(mm)
Package Size: L158×W94×H31(mm)
Weight (G.W.): 380g
23mm
126.6mm
12mm
1

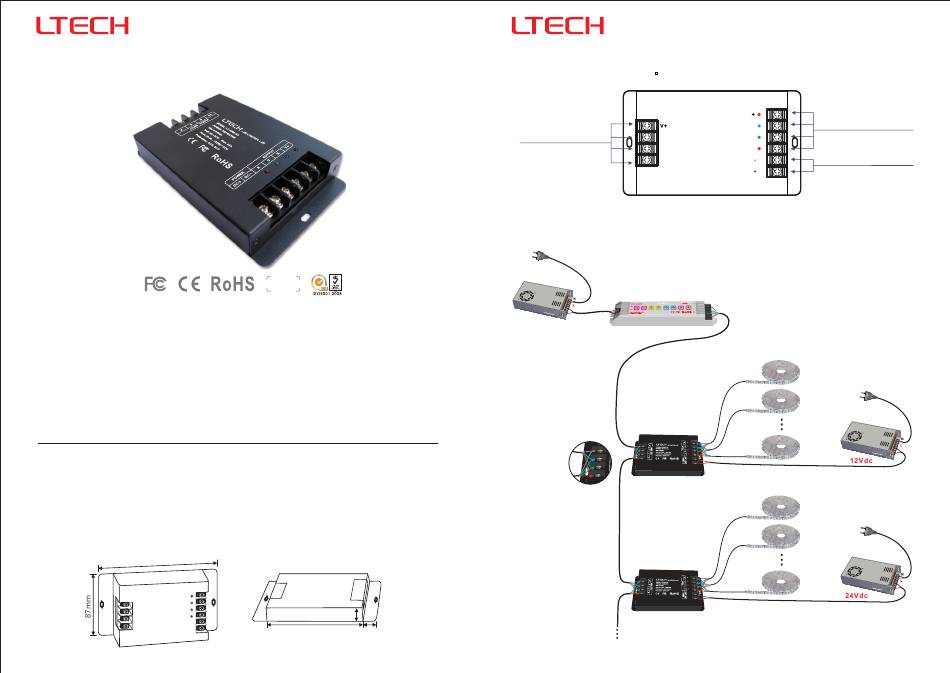

3. Wiring Diagram:
Wire: AWG 22-12 0.3-3.3
Signal Input Socket
B
G
R
3.1 Diagram for the connection of repeaters with different voltage LED lamps:
220V/110Vac
Power supply
RGB controller
-
+
24Vdc
LT-3060-8A
LT-3060-8A
LT-3060-8A Power Repeater
LED Lamps
V
Connection Socket
B
G
R 5 24Vdc ~
Power Input Socket
DC
DC
RGB strip 72W/5m
220V/110Vac
Power supply
RGB strip 72W/5m
220V/110Vac
Power supply
2
