Ltech LT-3030-CC Quick Start Manual

LT-3030-C
LED Constant Current Power Repeater
LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion,
it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more
power repeater, unlimited quantity of power repeater to be connected theoretically.

1. Product Parameter:

LT-3030-C Constant Current Power Repeater C
Input Signal:
PWM
Input Voltage:
12～48Vdc
Output Voltage:
3~46Vdc
Output Current:
CC 350/700/1050mA×3CH
Output Power:
(1.05W~48.3W)×3CH Max 144.9W
Driving LEDs:
Series 1~13Pcs 1W 3 / W/5W LED

2. Product Size:

175mm
170mm
LT-3030-C Power Repeater C
C
warranty
5 years
Protection: Short circuit / Over load
Working Temp.: ℃ ~55 ℃
-30
Dimension : s L175×W44×H30(mm)
Package Size:
L178×W48×H33(mm)
Weight (G.W.): 140g
1

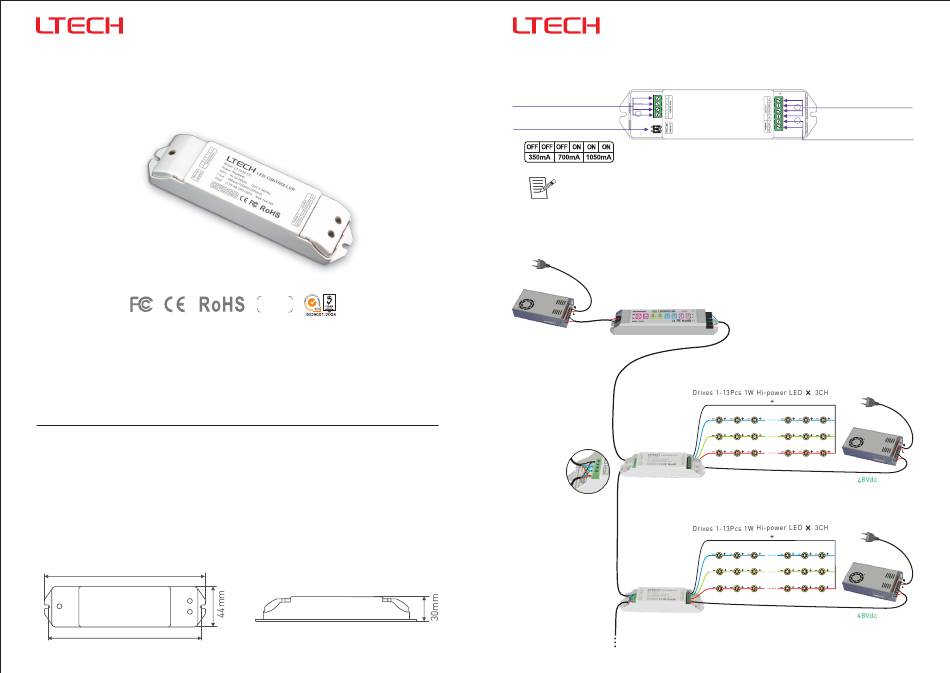

3. Wiring Diagram:

Signal Input Socket
Current Selection Switch
(Operation Table)
The LED quantity at each channel can be different; this CC controller can automatically
check & output a proper voltage to each channel as per its different LED quantities.

3.1 Repeaters connected to RGB controller as follows:

220V/110Vac
CV Power Supply
RGB Controller
24Vdc
-
+
LT-3030-CC
LT-3030-CC
LT-3030 CC Power Repeater -
LED Lamps
OUT
Connection Socket
LT-3030-CC
12-48V
CV Power Input
220V/110Vac
CV Power Supply
B
G
R
Output CC 350mA
220V/110Vac
CV Power Supply
B
G
R
Output CC 350mA
2
