LT-3060-8A

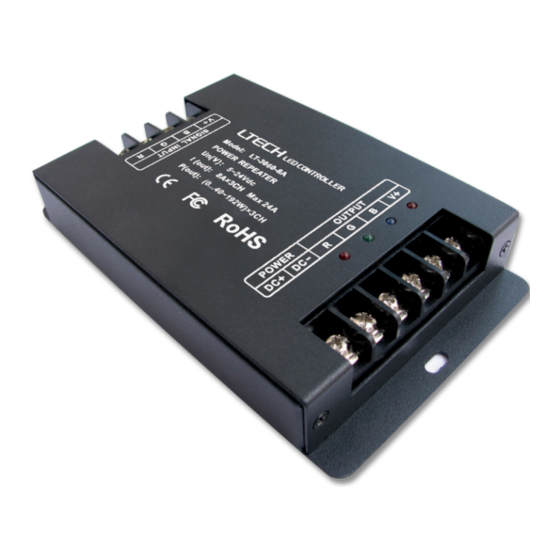

LED CV Power Repeater
LED Power Repeater is suitable for all of our company's power-output
power expansion, it accepts PWM control, the control quantity of LED lights would be
twice as much by adding one more power repeater, unlimited quantity of power repeater
to be connected theoretically.
1. Product Parameter:
LT-3060-8A (Common Anode)
Input Signal: CV/CC PWM
Input Voltage: 5～24Vdc
Max Current Load: 8A×3CH Max 24A
Output Power: 120W/288W/576W(5V/12V/24V)
2. Product Size:
LT-3060-8A Power Repeater
style controllers'
℃
Working Temperature:
-30
~65℃
Dimension:
L148×W87×H23(mm)
Package Size:
L158×W94×H31(mm)
Weight (G.W.): 380g
1
3. Wiring Diagram:
3.1 Repeaters connected to RGB controller as follow:
LT-3060-8A Power Repeater
www.ltech-led.com
2
Advertisement
Table of Contents
Related Manuals for Ltech LT-3060-8A
Summary of Contents for Ltech LT-3060-8A
- Page 1 LT-3060-8A Power Repeater LT-3060-8A Power Repeater 3. Wiring Diagram: LT-3060-8A LED CV Power Repeater 3.1 Repeaters connected to RGB controller as follow: LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.
- Page 2 LT-3060-8A Power Repeater LT-3060-8A Power Repeater 4. Attention: 3.2 Repeaters connected to DMX decoder: 4.1 The product shall be installed and serviced by the qualified person. 4.2 This product is non-waterproof. Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
