Ltech LT-3030-CС Quick Start Manual

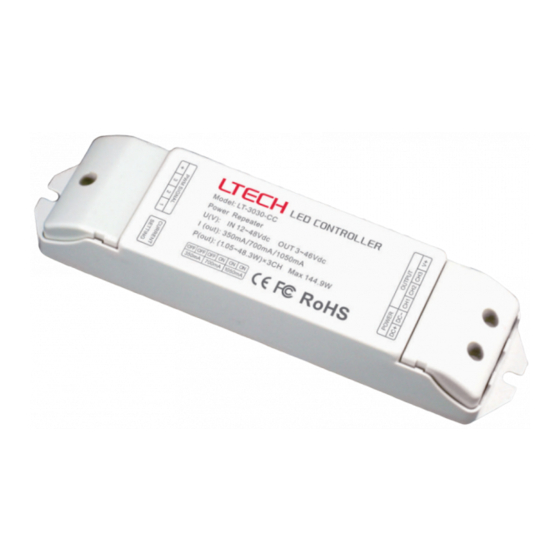

LT-3030-C
LED Constant Current Power Repeater
LED Power Repeater is suitable for all of our company's power-output style controllers'
power expansion, it accepts PWM control, the control quantity of LED lights would be
twice as much by adding one more power repeater, unlimited quantity of power repeater
to be connected theoretically.

1. Product Parameter:

LT-3030-C C Constant Current Power Repeater
PWM
Input Signal:
12～48Vdc
Input Voltage:
3~46Vdc
Output Voltage:
Output Current: CC 350/700/1050mA×3CH
1.05W~48.3W×3CH Max 144.9W
Output Power:
Series 1~13Pcs 1W 3 / W/5W
Driving LEDs:

2. Product Size:

LT-3030-C C Power Repeater
C
Short circuit / Over load
Protection:
Working Temp.: -30 ℃ ~55 ℃
Dimension : s L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight (G.W.): 140g
LED
1

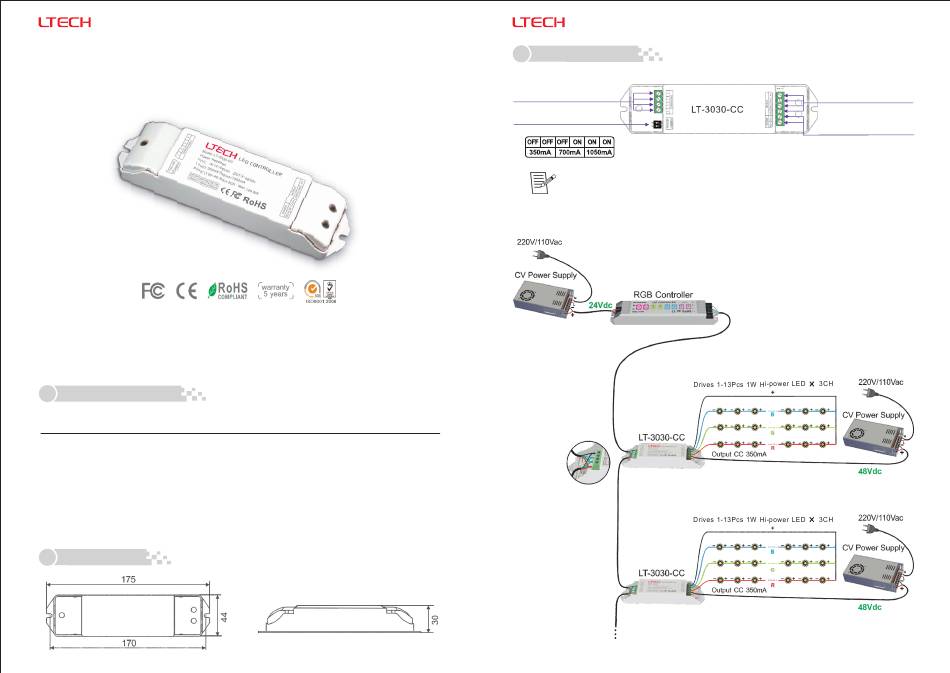

3. Wiring Diagram:

Signal Input Socket
Current Selection Switch
(Operation Table)
The LED quantity at each channel can be different; this CC controller can automatically
check & output a proper voltage to each channel as per its different LED quantities.
3.1 Repeaters connected to RGB controller as follows:
LT-3030 CC Power Repeater -
LED Lamps
Connection Socket
12-48V dc
CV Power Input
