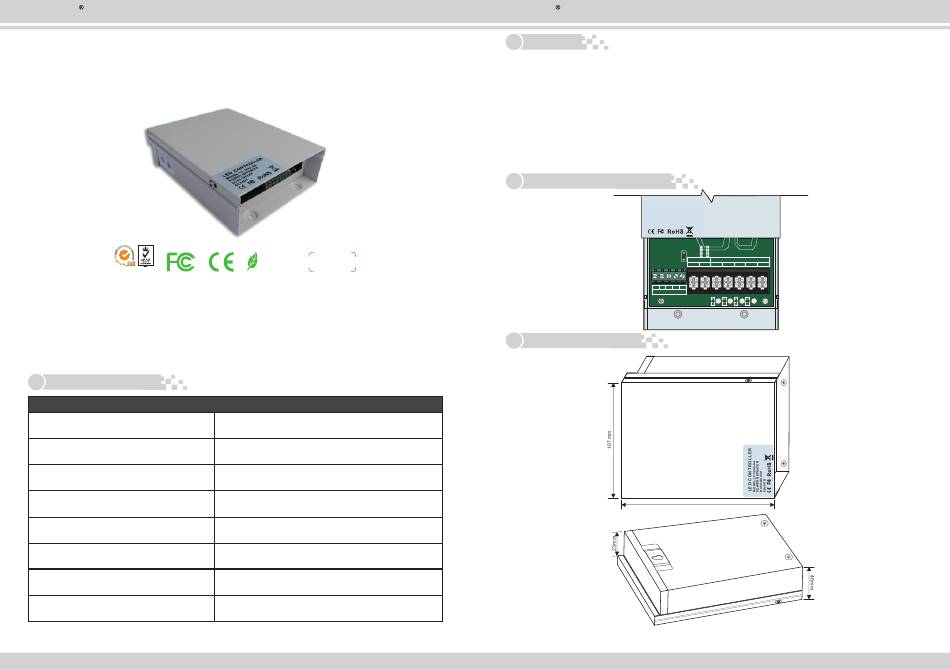

Ltech LT-3040-6A Manual

LTECH
LT-3040-6A
LED CV Power Repeater
ISO9001:2008
L E D P o w e r R e p e a t e r i s s u i t a b l e f o r a l l o f o u r c o m p a n y ' s p o w e r - o u t p u t
style controllers' power expansion, it accepts PWM control, the control quantity
of LED lights would be twice as much by adding one more power repeater,
unlimited quantity of power repeater to be connected theoretically.
1. Product parameter
LT-3040-6A
Power supply chosen
Input voltage
Max load current
Max output power
Working temperature
Dimension
Package Size
Weight (G.W)
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
LT-3040-6A LED CV Power Repeater Manual
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC5V～DC24V
6A/CH×4CH Max 24A
120W(5V)/288W(12V)/576W(24V)
～
℃ ℃
-30 65
L142×W107×H40(mm)
L160×W133×H45(mm)
530g
1
Tel: +86 756 620 8823
LTECH

2. Features

1. 4 Channels RGB output, 6A/CH, total 24A.
2. Accept PWM control.
3. Unlimited connection quantity theoretically, unlimited power output expansion.
4. The in-phase possibility is not restricted by any numbers of repeaters,
a number of repeaters work together are always synchronous.
5. Maximum length from controller to repeater can be 500 meters.
3. internal connect teminal
LED CONTROLLER
MODEL:LT-3040-6A
POWER REPEATER
DC5V-DC24V
6Ax4CH
D2
IN1 IN2 IN3 IN4 IN+
SIGNAL INPUT
DC5V-DC24V

4. Product Dimension

Fax: +86 756 620 8833
LT@LTECHONLINE.COM
LT-3040-6A LED CV Power Repeater Manual
DC5V-DC24V
6Ax4CH
POWER OUTPUT
DC+ DC- CH1 CH2 CH3 CH4 V+
CH1 CH2 CH3 CH4
142mm
2
