LT-3010-10A

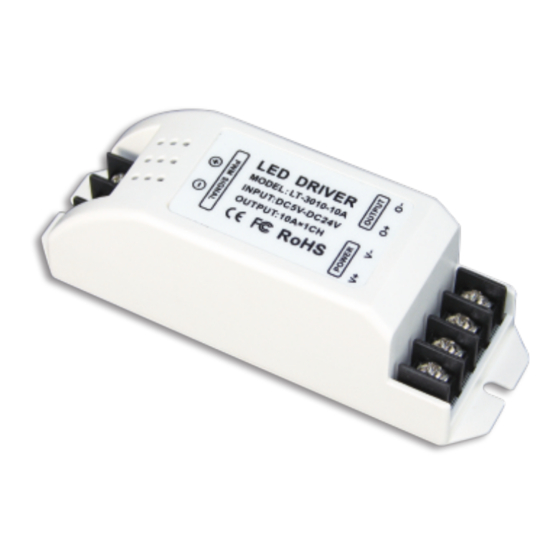

LED CV Power Repeater
ISO9001:2008
L E D P o w e r R e p e a t e r i s s u i t a b l e f o r a l l o f o u r c o m p a n y ' s p o w e r - o u t p u t
style controllers' power expansion, it accepts PWM control, the control quantity
of LED lights would be twice as much by adding one more power repeater,
unlimited quantity of power repeater to be connected theoretically.
1. Product parameter
LT-3010-10A
Power supply chosen
Input voltage
Max load current
Max output power
Working temperature
Dimension
Package Size
Weight (G.W)
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.

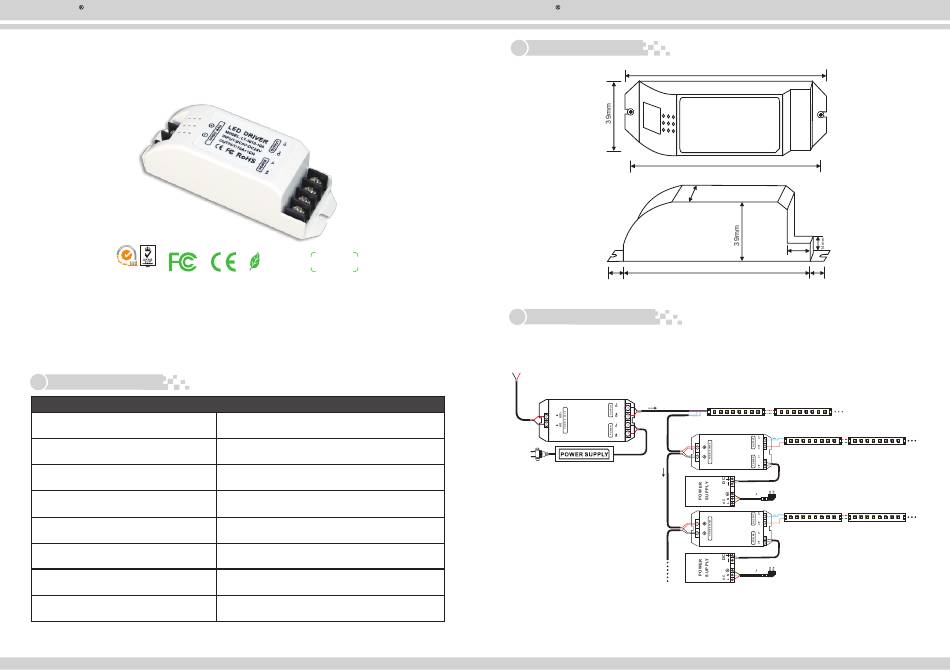

LT-3010-10A LED CV Power Repeater Manual
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC5V～DC24V
10A/CH×1CH Max 10A
50W(5V)/120W(12V)/240W(24V)
℃
℃
-30 -55
L121×W39×H39(mm)
L123×W42×H42(mm)
100g
1
Tel: +86 756 620 8823
LTECH
2. Product dimension
7mm
3. Conjunction Diagram
1. Power repeater connected to 0-10V LED dimmer as follows
0-10V Input voltage
-
+
CV 0-10V Dimming Driver
LED DRIVER
MODEL : LT-391-10A
DC12-24V
AC90-250V
in-phase cable
Fax: +86 756 620 8833
LT@LTECHONLINE.COM
LT-3010-10A LED CV Power Repeater Manual
121mm
110mm
39mm
15mm
107mm
7mm
+
LED DRIVER
MODEL: LT-3010-10A
DC12V-24V
AC220V 110V
+
LED DRIVER
MODEL: LT-3010-10A
DC12V-24V
AC220V 110V
2
WWW.LTECHONLINE.COM
