LT-3040-C
LED Constant Current Power Repeater
LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion,
it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more
power repeater, unlimited quantity of power repeater to be connected theoretically.
1. Product Parameter:
LT-3040-C Constant Current Power Repeater
C
Input Signal:
PWM (200Hz~2000Hz)
Input Voltage:
12～48Vdc
Output Voltage:
3~46Vdc
Output Current:
CC 350/700/1050mA×4CH
Output Power:
(1.05W~48.3W)×4CH Max 193.2W
Driving LEDs:
Series
1~13Pcs 1W 3
/ W/5W
LED
2. Product Size:
175
170
LT-3040-C Power Repeater
C
C
Protection:
Short circuit / Over current
Working Temp.:
℃
~55 ℃
-30
Dimension : s
L175×W44×H30(mm)
Package Size:
L178×W48×H33(mm)
Weight (G.W.):
150g
1

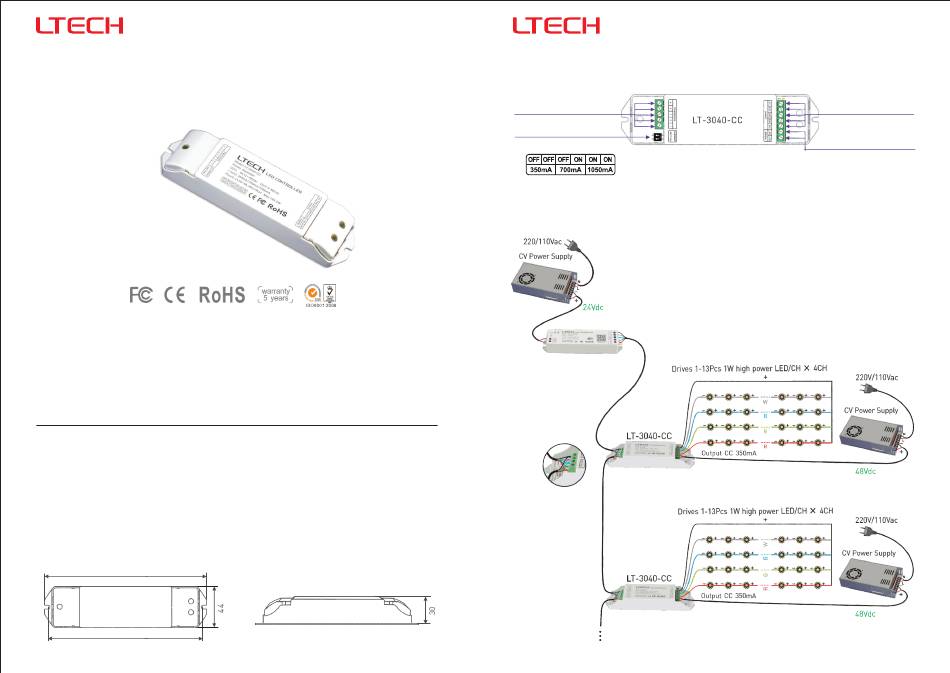

3. Wiring Diagram:
Signal Input Socket
Current Selection Switch
(Operation Table)
3.1 Repeaters connected to RGB controller as follow:
LT-3040 CC Power Repeater
-
LED Lamps
Connection Socket
12-48V
dc
Power Input Socket
2
www.ltech-led.com
