LT-3090-350
LED CC Power Repeater
LED constant current power repeater is specially designed for our single color
controllers to expand power output, it accepts PWM signal, double or three times more
power can be reached by every one more power repeater, unlimited quantity of power
repeater to be connected theoretically.
1. Product Parameter:
LT-3090-350 Constant Current Power Repeater
Input Signal: PWM
Input Voltage: 12～48Vdc
Output Voltage:
3~42Vdc
Output Current: CC 350mA×3CH
Output Power: 1.05W~14.7W×3CH Max 44.1W
Driving LEDs: 1~12Pcs 1W LED/CH × 3CH
2. Product Size:
LT-3090-350 CC Power Repeater
and RGB
Protection:
Short circuit / Over load
Working Temperature:
-30
℃
~55℃
Dimension: L121×W39×H39(mm)
Package Size: L123×W42×H42(mm)
Weight (G.W.): 115g
1

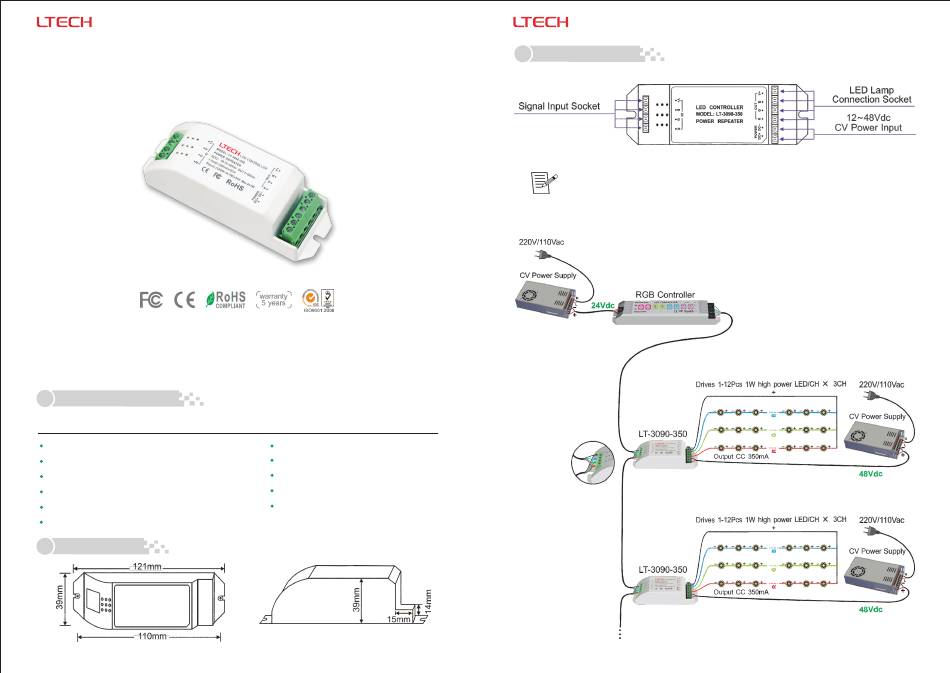

3. Wiring Diagram:
The LED quantity at each channel can be different; this CC controller can automatically
check & output a proper voltage to each channel as per its different LED quantities.
3.1 Repeaters connected to RGB controller as follow:
LT-3090-350 CC Power Repeater
2
www.ltech-led.com
