Ltech LT-3090-700 Quick Start Manual

LT-3090-700
LED CC Power Repeater
LED constant current power repeater is specially designed for our single color
controllers to expand power output, it accepts PWM signal, double or three times more power
can be reached by every one more power repeater, unlimited quantity of power repeater to be
connected theoretically.

1. Product Parameter:

LT-3090-700 Constant Current Power Repeater
Input Signal:
PWM (200-2000Hz)
Input Voltage:
12～48Vdc
Output Voltage:
3~46Vdc
Output Current: CC 700mA × 3CH
Output Power: (2.1W~32.2W) × 3CH Max 96.6W

2. Product Size:

LT-3090-700 CC Power Repeater
warranty
5 years
and RGB
℃ ℃
Working Temp.: -30 ~55
Dimension: L121×W39×H39(mm)
Package Size: L123×W42×H42(mm)
Weight (G.W.): 115g
1

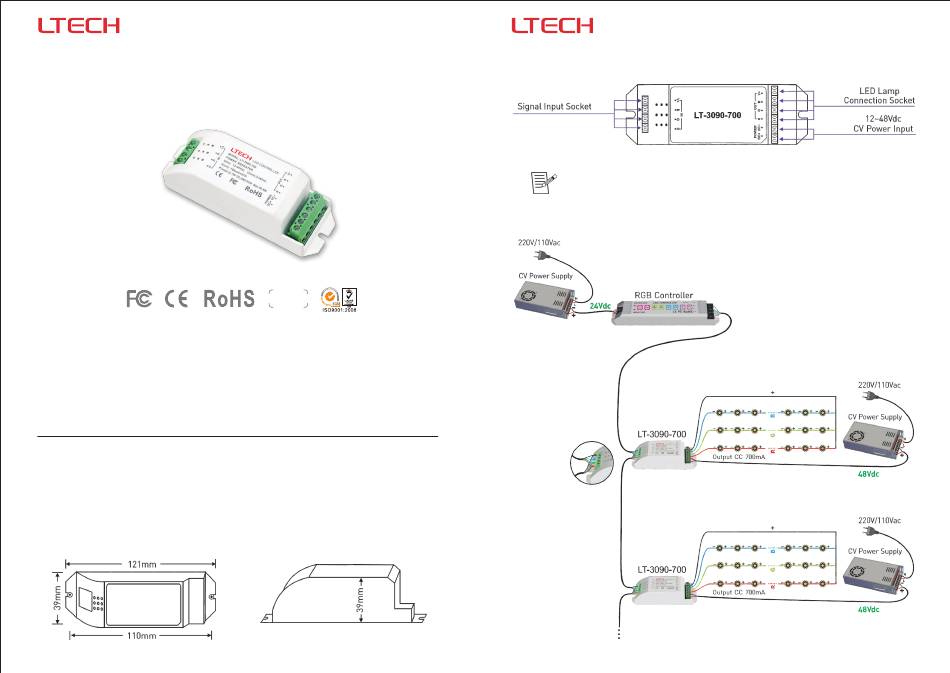

3. Wiring Diagram:

The LED quantity at each channel can be different; this CC controller can automatically
check & output a proper voltage to each channel as per its different LED quantities.
3.1 Repeaters connected to RGB controller as follow:
LT-3090-700 CC Power Repeater
2
